Installation Procedure
Important: Align the BCM to the console accessory wiring junction block.

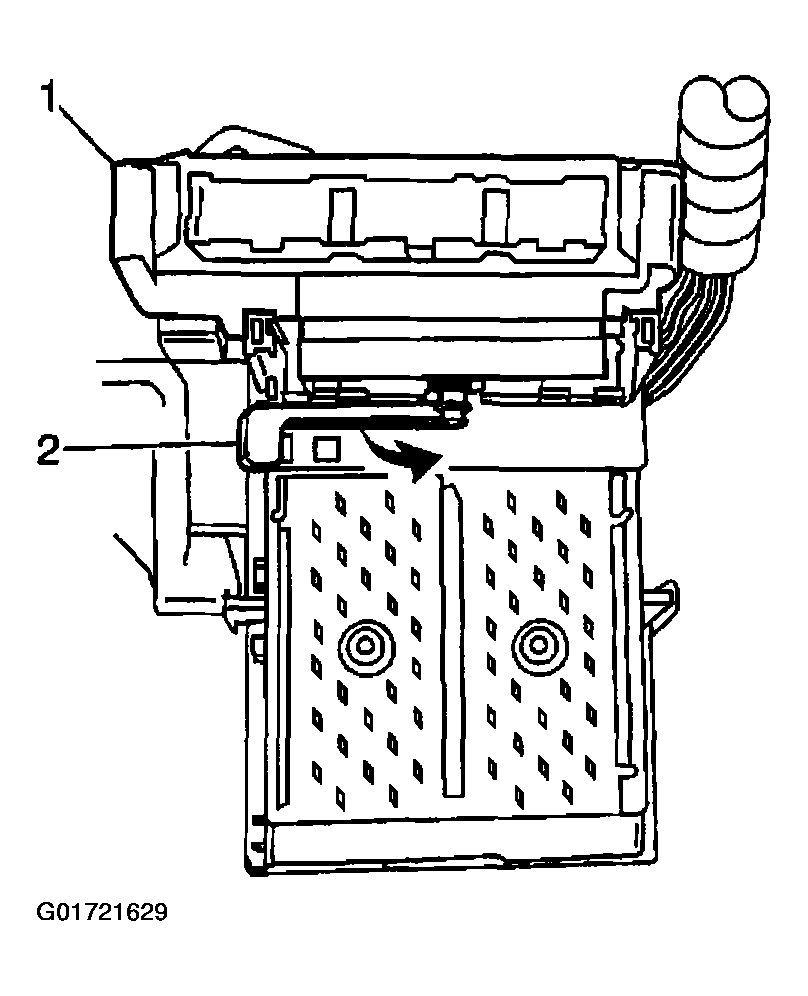

- Install the BCM (1) onto the console accessory wiring junction block.
- Rotate the BCM retaining lever (2) to secure the BCM to the console accessory wiring junction block.
- Install the console accessory wiring junction block. Refer to CONSOLE ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT in Wiring Systems.
- Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO in Engine Electrical.
- Perform the new BCM setup. Refer to Body Control Module (BCM) Programming/RPO Configuration .
