1993 Pontiac LeMans VLFACTORY OEM SERVICE PROCEDURE
ECM Power Circuit
- With ignition off, unplug ECM connectors. With ignition on, check for battery voltage between ECM connector terminal A6 (Red/White/Black wire) and ground.

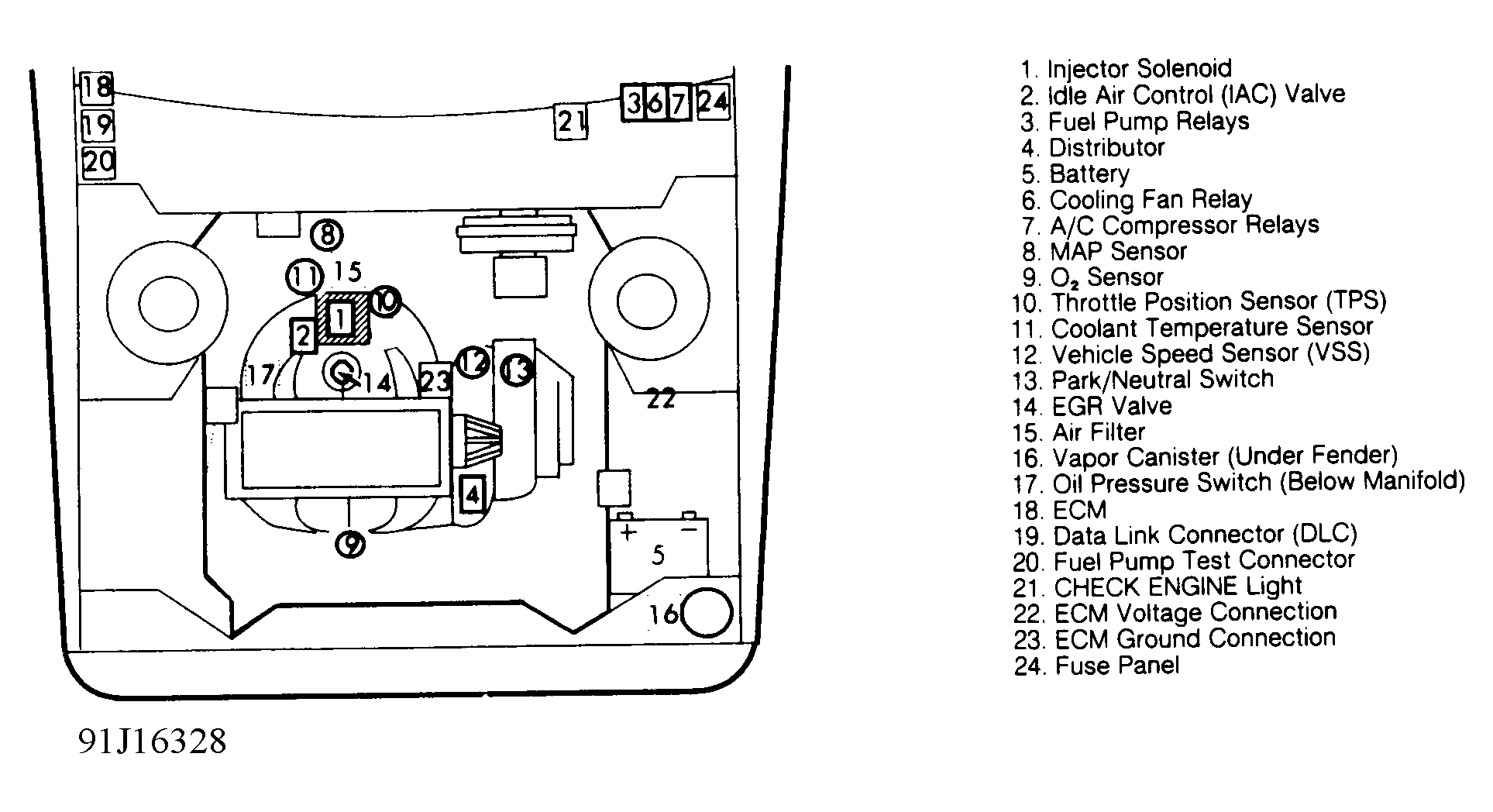

- If battery voltage does not exist, check fuse No. 10 (20-Amp) in fuse panel. See Fig 1 . If fuse is okay, check for an open in Red/White/Black wire between fuse panel and ECM connector terminal A6. If wire is okay, check for defective ignition switch.
- Check for battery voltage at ECM terminals B1 and C16. If battery voltage does not exist, repair Red/Yellow wire from battery.
