1990 Pontiac LeMans GSE, AutomaticFACTORY OEM SERVICE PROCEDURE

Diagnostic Aids

Water or foreign material can cause a no start during freezing weather. Vehicle may start after a few minutes in a heated shop but problem will reoccur again after an overnight freeze. An EGR sticking or leaking can cause a lean condition during cranking. If engine is flooded, ensure engine enters clear flood mode at first indication of flooding by opening throttle fully during cranking.

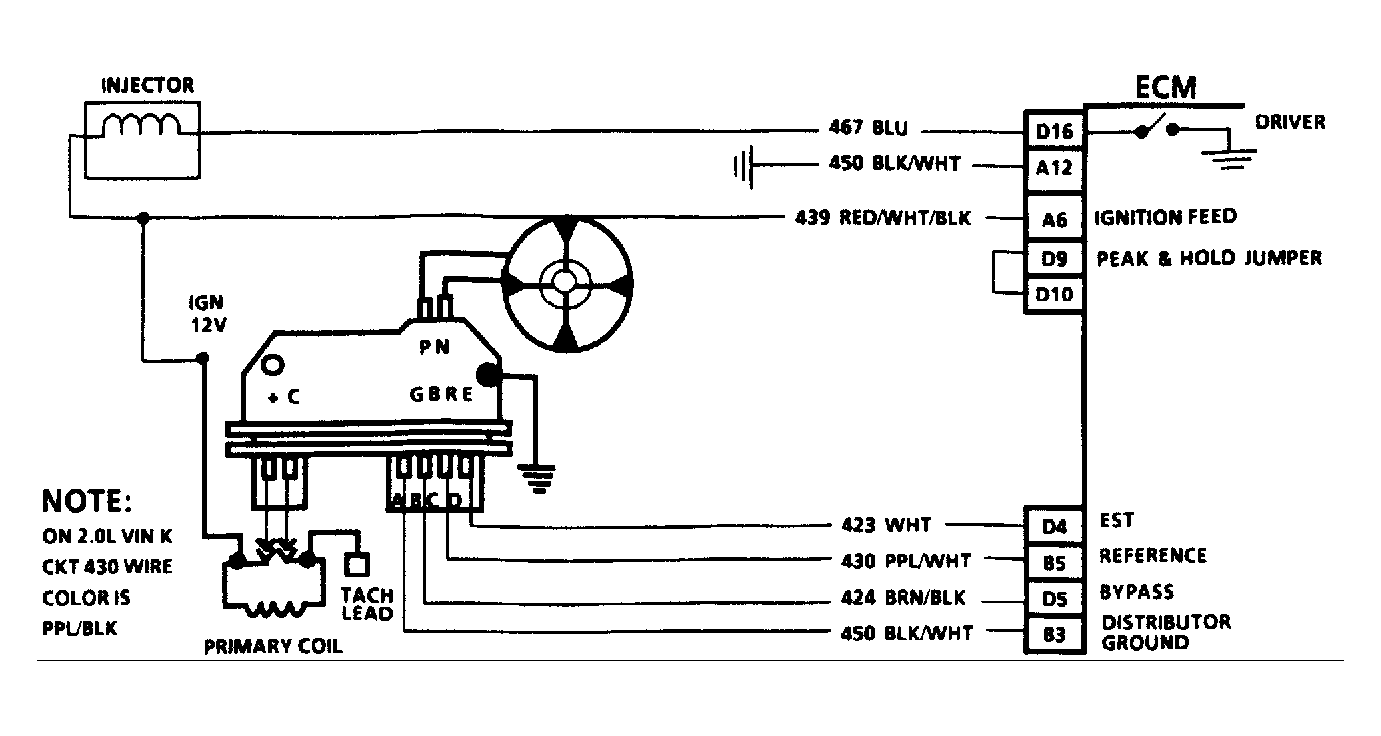

Fig 1: Engine Cranks But Won't Run (Chart A-3) (1 of 2)
G90J15544Courtesy of GENERAL MOTORS CORP.
