1990 Pontiac LeMans BaseFACTORY OEM SERVICE PROCEDURE

Spark Plugs

SPARK PLUG TYPE

Application	AC
All Models	R45XLS

SPARK PLUG SPECIFICATIONS

Application	Gap In. (mm)	Torque Ft. Lbs. (N.m)
All Models	.045 (1.1)	15 (20)

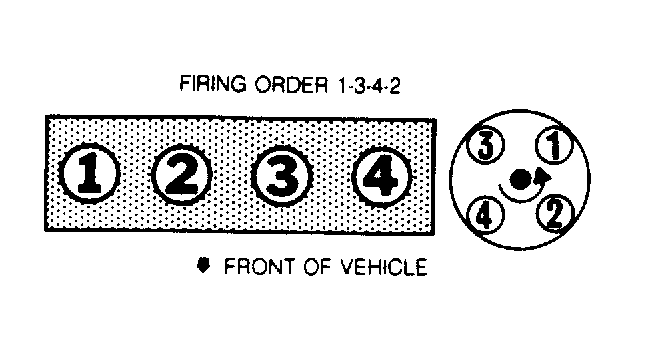

Fig 1: Firing Order & Distributor Rotation

BASE IGNITION TIMING (Degrees BTDC @ RPM)

Application

Specification

1.6L ⁽¹⁾

⁽²⁾⁽³⁾⁽⁴⁾ 8 @ Idle

2.0L ⁽¹⁾

⁽²⁾⁽³⁾ 8 @ Idle

⁽¹⁾	Ground ALDL test connector.

⁽²⁾	Align timing marks to obtain specified degrees.

⁽³⁾	Idle speed as specified on emission decal.

⁽⁴⁾	If using the magnetic pick-up timing light, set timing to 10 degrees BTDC. See Fig 2 .

NOTE: A magnetic pick-up timing light may be used on 1.6L engine.
