Check At Air Pipe

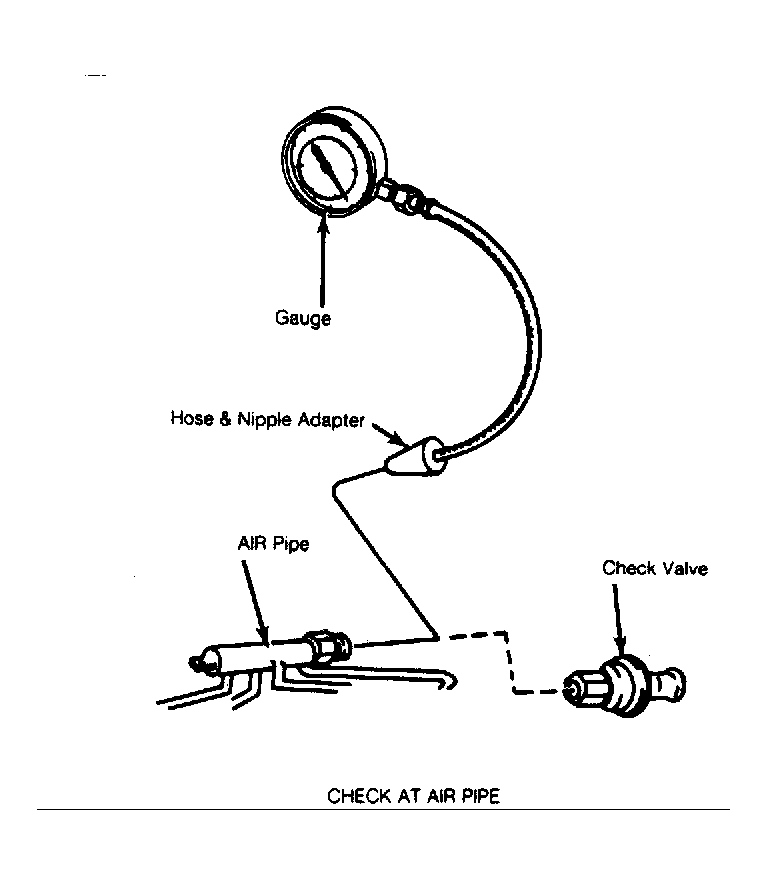

Remove rubber hose at exhaust manifold AIR pipe check valve and remove check valve. Install fuel pump pressure gauge to hose and nipple via Propane Enrichment Device (J26911 ) as shown in Fig 1 . Nipple should be inserted into exhaust manifold AIR pipe.
