1987 Pontiac Fiero Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Direct Clutch Assembly: Disassembly

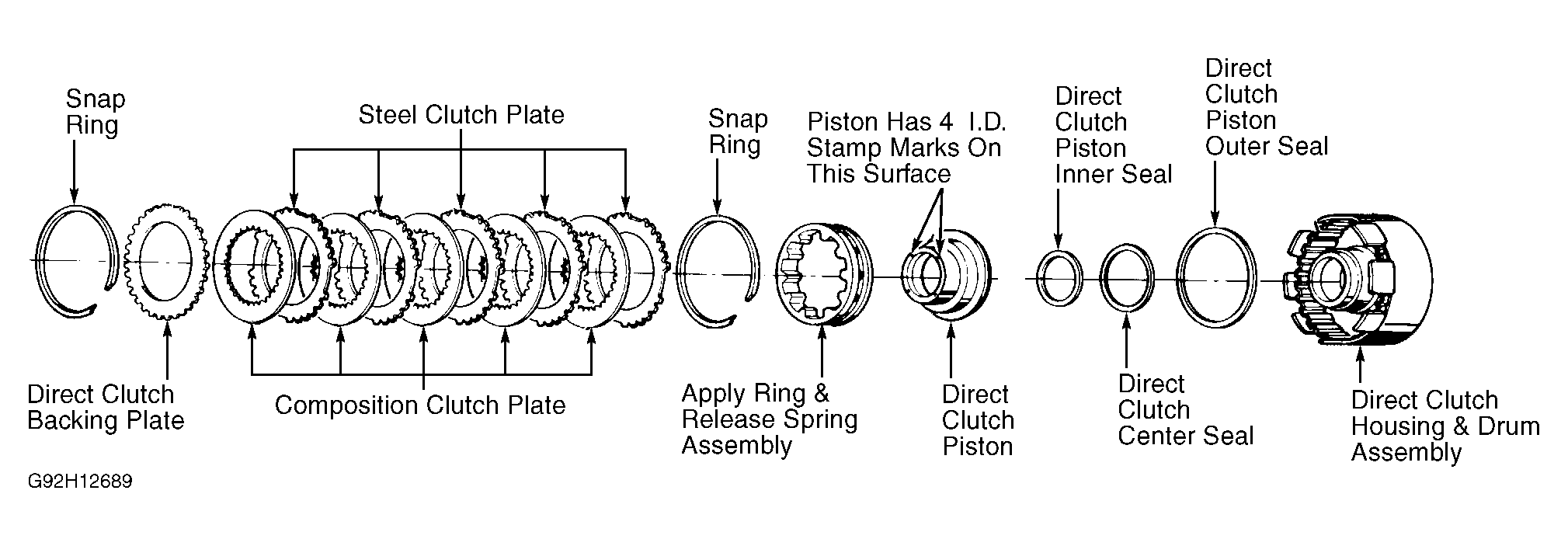

- Remove clutch pack snap ring. Remove backing plate, composite and steel clutch plates from clutch housing. See Fig 1 . If forward clutch is disassembled, keep direct clutch plates separate from forward clutch plates.
- Remove snap ring holding apply ring and release spring assembly. Remove apply ring and release spring assembly from housing. Remove direct clutch piston from clutch housing. Remove inner and outer seals from piston. Remove center seal from clutch housing.
