Knock Sensor: Removal
The engine uses one knock sensor. The sensor is bolted into the cylinder block, directly below the intake manifold.
- Remove intake manifold plenum and intake manifold. (see INTAKE MANIFOLD under REMOVAL & INSTALLATION in 3.5L V6 ENGINE article.

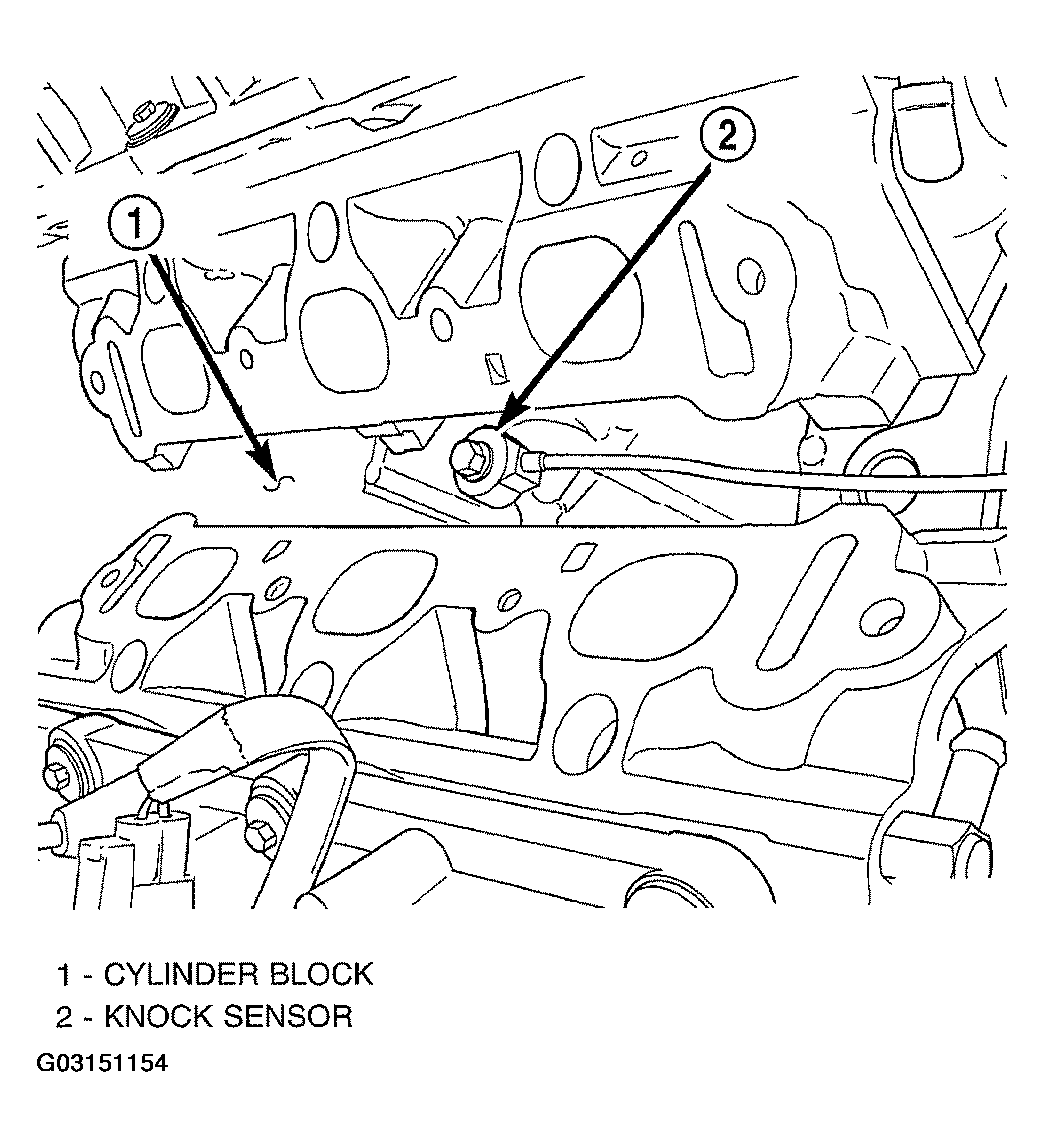

- Disconnect electrical connector from knock sensor (see Fig 1 ).
- Use a crows foot socket to remove the knock sensor bolt.
