2001 MODEL COVERAGE

MODEL

BODY CODE

ENGINE

ENGINE ID ⁽¹⁾

FUEL SYSTEM

IGNITION SYSTEM

Concorde

2.7L V6 (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

3.2L V6 (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

Intrepid

2.7L V6 (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

2.7L V6 (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

3.2L V6 (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

3.5L V6 (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

LHS & 300M

3.5L V6 (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

Neon

2.0L 4 Cyl. (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

2.0L 4 Cyl. (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

Prowler

3.5L V6 (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

PT Cruiser

2.4L 4 Cyl. (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

Sebring Convertible

2.7L V6 (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

Sebring & Stratus Coupe

2.4L 4 Cyl. (SOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

3.0L V6 (SOHC)

SFI ⁽²⁾

Hall Effect

Sebring & Stratus Sedan

2.4L 4 Cyl. (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

.....

2.7L V6 (DOHC)

SFI ⁽²⁾

DIS ⁽³⁾

Viper

8.0L V10 (OHC)

SFI ⁽²⁾

DIS ⁽³⁾

⁽¹⁾	Engine may be identified by 8th character of Vehicle Identification Number (VIN).

⁽²⁾	Sequential Fuel Injection.

⁽³⁾	Distributorless Ignition System.

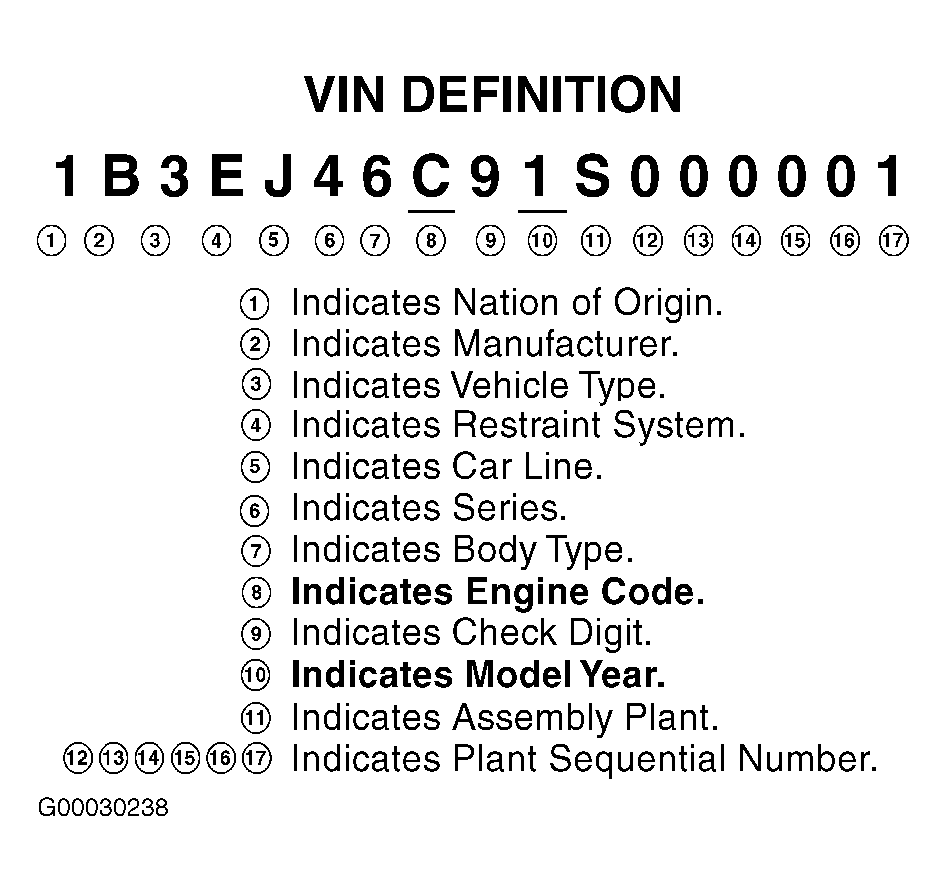

Fig 1: VIN Definition

Courtesy of DAIMLERCHRYSLER CORP.
