NOTE: For component locations, see Fig 1 -Fig 8 .

COMPONENT LOCATIONS

Component	Location
Controller Anti-Lock Brake Module	In Left Side Of Engine Compartment, Under Battery Tray
Data Link Connector	Under Left Side Of Instrument Panel, Near Steering Column
Deck Lid Security Switch	Behind Deck Lid Lock Cylinder
Driver's Air Bag Module	In Center Of Steering Wheel
Electro-Mechanical Instrument Cluster Module	Integral Part Of Instrument Cluster
Fuse Block	Under Left Side Of Instrument Panel
Occupant Restraint Controller	Under Center Of Floor Console
Passenger Air Bag Module	On Right Side Of Instrument Panel
Powertrain Control Module	In Engine Compartment, Between Air Cleaner & Radiator
Power Distribution Center	In Left Rear Of Engine Compartment, Next To Battery
Remote Keyless Entry Module	Center Of Instrument Panel, Under Top Cover
Sentry Key Immobilizer Module	On Steering Column, Around Ignition Switch
Side Air Bags	In Side Of Each Front Seat
Side Impact Air Bag Control Modules	Below Front Door Opening, In Front Of "B" Pillar

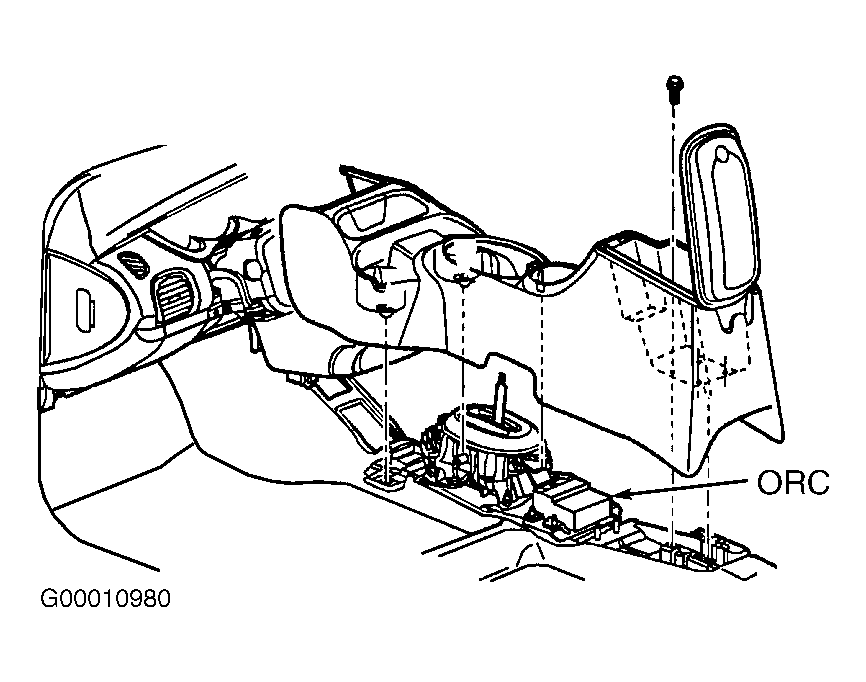

Fig 1: Locating Occupant Restraint Controller

Courtesy of DAIMLERCHRYSLER CORPORATION
