1992 Plymouth Laser Base, AutomaticFACTORY OEM SERVICE PROCEDURE

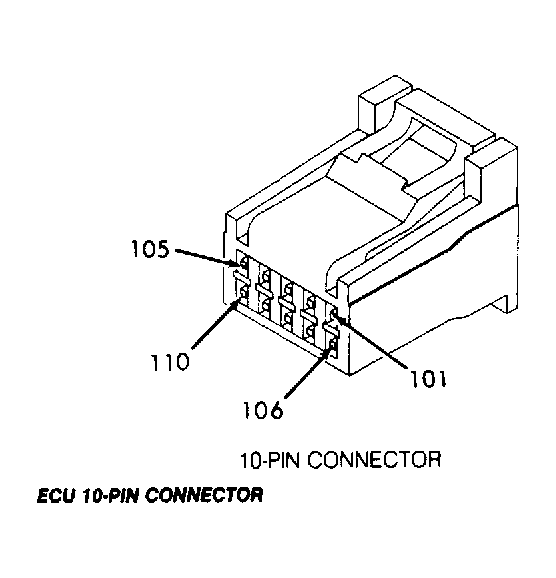

Electronic Control Unit 10-Pin Connector
ECU 10-PIN CONNECTOR PIN IDENTIFICATION (1)
| Terminal | Wire Color | Function | ||
|---|---|---|---|---|
| 101 | Black | Ground | ||
| 102 | Red | Power | ||
| 103 | Red/Black | Battery Back-Up | ||
| 104 | Black/Yellow | Park/Neutral Sense (A/T) | ||
| " | Black | Ground (M/T) | ||
| 105 | Black/Dark Green | Oxygen (O2) Sensor Heater | ||
| 106 | Black | Ground | ||
| 107 | Red | Power Source | ||
| 108 | Black/Yellow | Inhibitor Switch (A/T) | ||
| 108 | Black/Yellow | Starter Relay (M/T) | ||
| 109 | White | Tachometer | ||
| 110 | Not Used | Not Used | ||
|
||||
