1992 Plymouth Colt Base, AutomaticFACTORY OEM SERVICE PROCEDURE

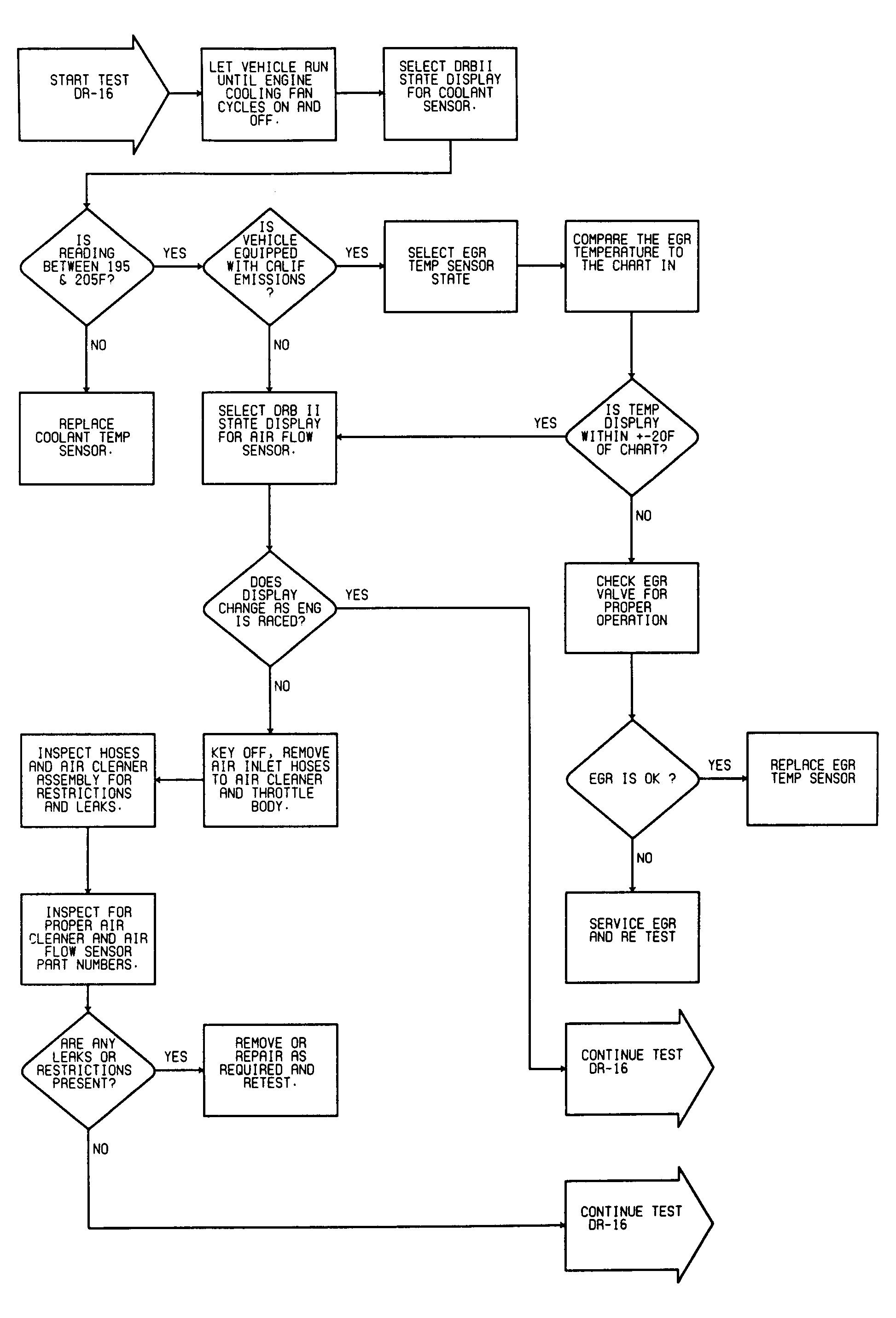

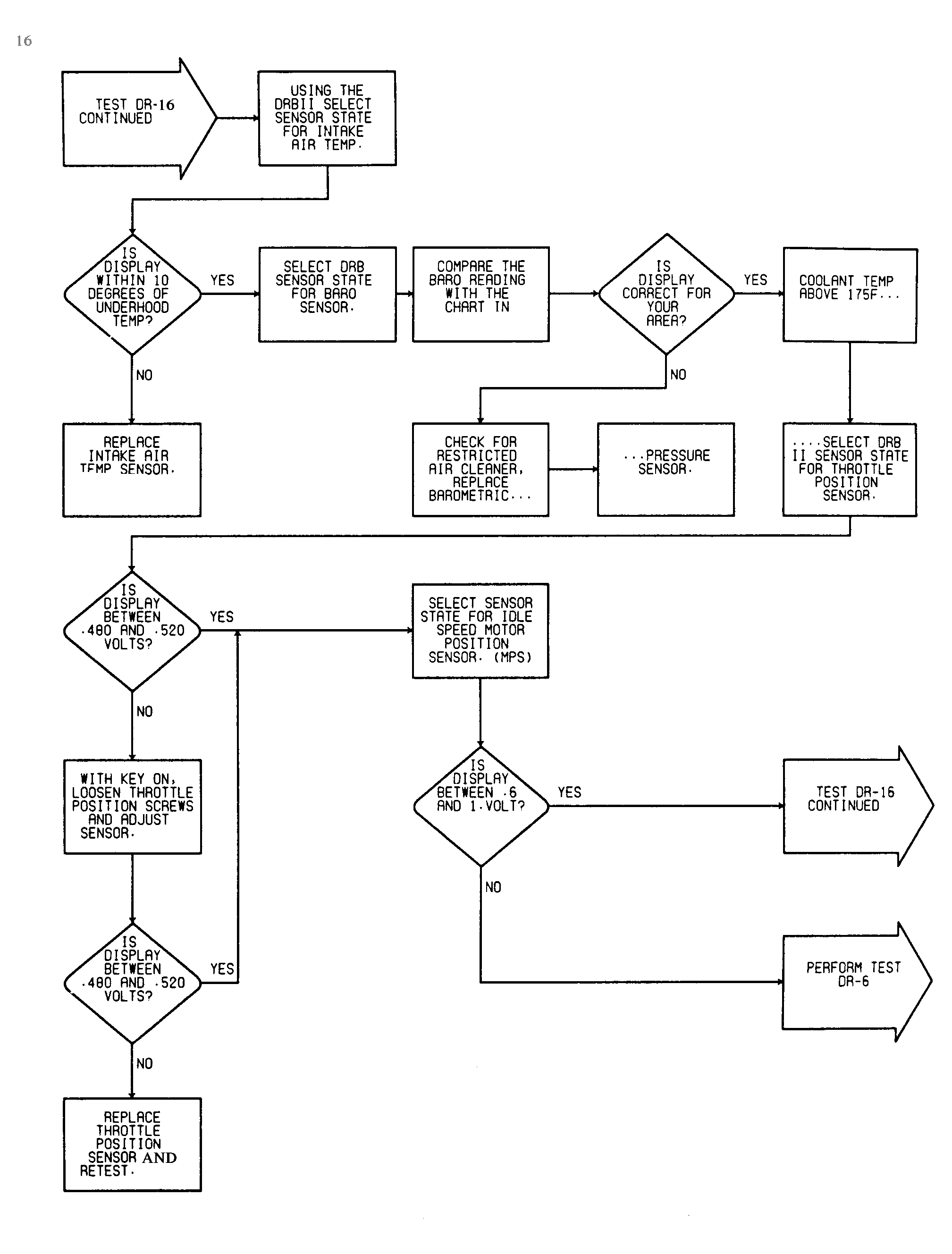

Dr-16: No Fault Code Sensor Test
DR-16 EGR TEMP SENSOR TEST
| DRB-II EGR Temp. Display | Engine Condition |
|---|---|
| 160°F | Hot Idle (198°F Coolant) |
| 350°F | 25 MPH at 3500 RPM |
| 311°F | 55 MPH at 3500 RPM |
DR-16 BARO SENSOR TEST
| Altitude (Ft) | DRB-II BARO Reading (in. HG) |
|---|---|
| -1000 | 31.01 |
| -900 | 30.90 |
| Sea Level | 29.92 |
| 500 | 29.38 |
| 1000 | 28.85 |
| 1500 | 28.33 |
| 2000 | 27.82 |
| 3000 | 26.81 |
| 4000 | 25.84 |
| 6000 | 23.97 |
| 8000 | 22.22 |
| 10,000 | 20.57 |
| 12,000 | 19.02 |
| 14,000 | 17.57 |
