1992 Plymouth Colt Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

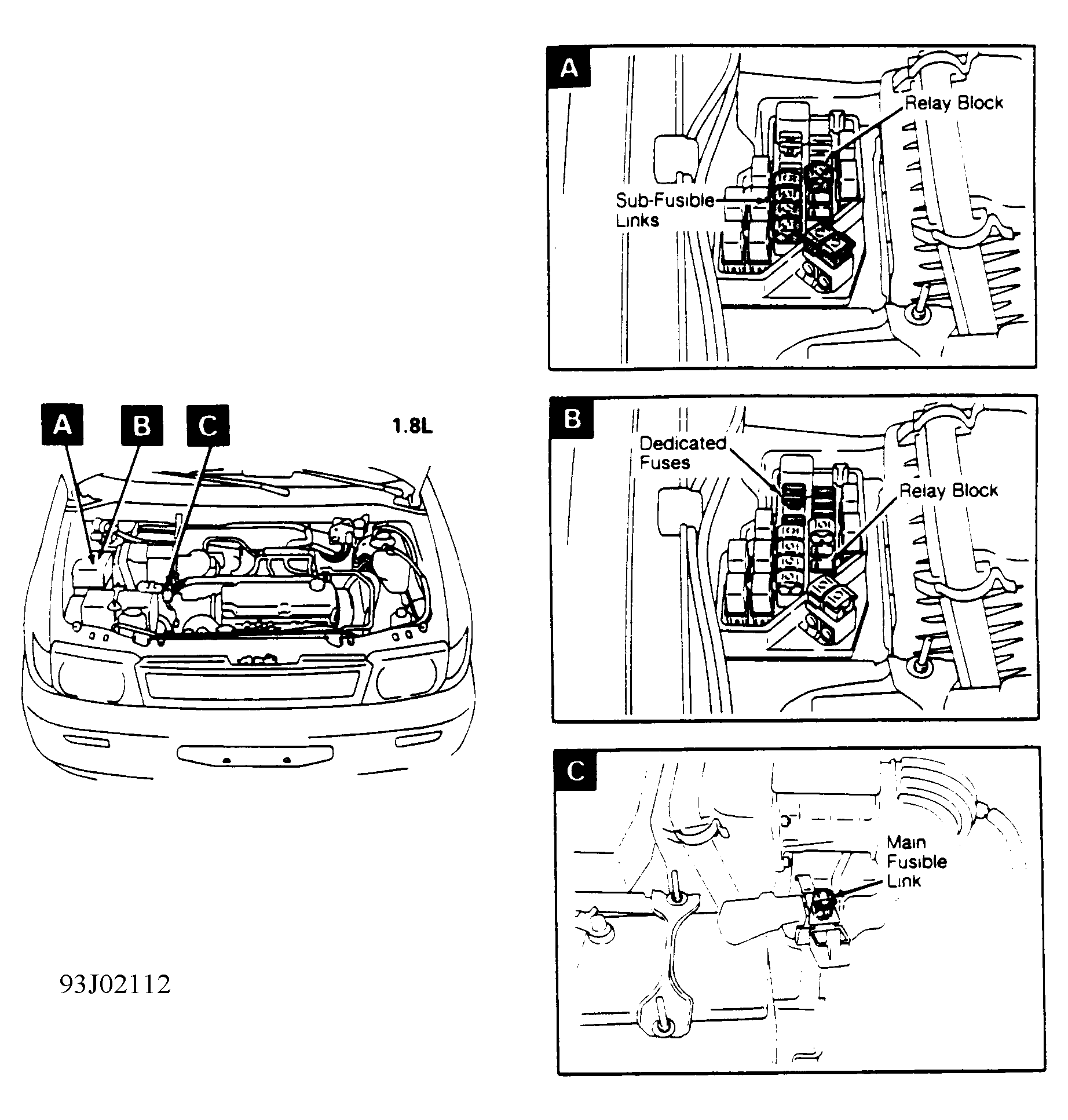

| Fusible Links | In engine compartment fuse/relay box. See Fig 1 . |
| Passenger Compartment Fuse Block | Under lower left side of instrument panle. See Fig 2 . |
| Power Window Relay (U.S.) | In underhood fuse/relay box behind battery. See Fig 4 . |
| Power Window Relay (Canada) | In driver's footwell, behind kick panel. See Fig 4 . |
