Power Transistor (Stealth & 3000GT)

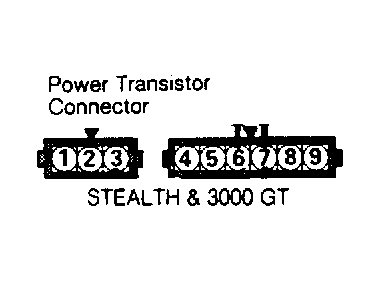

When testing power transistor, refer to POWER TRANSISTOR TESTING (STEALTH & 3000GT) table.
| Cylinders No. Tested | (2) Analog Ohmmeter Connected Between Terminals (No 1.5 V Battery) | (2) With 1.5 V Battery Connected Between Terminals | ||||
|---|---|---|---|---|---|---|
| 1 & 4 | 3 & 7: No Continuity | 6 & 7: Continuity | ||||
| 2 & 5 | 2 & 7: No Continuity | 5 & 7: Continuity | ||||
| 3 & 6 | 1 & 7: No Continuity | 4 & 7: Continuity | ||||
|
||||||
