Engine Controls - Tests W/Codes - Body Control Computer: Introduction: Operation

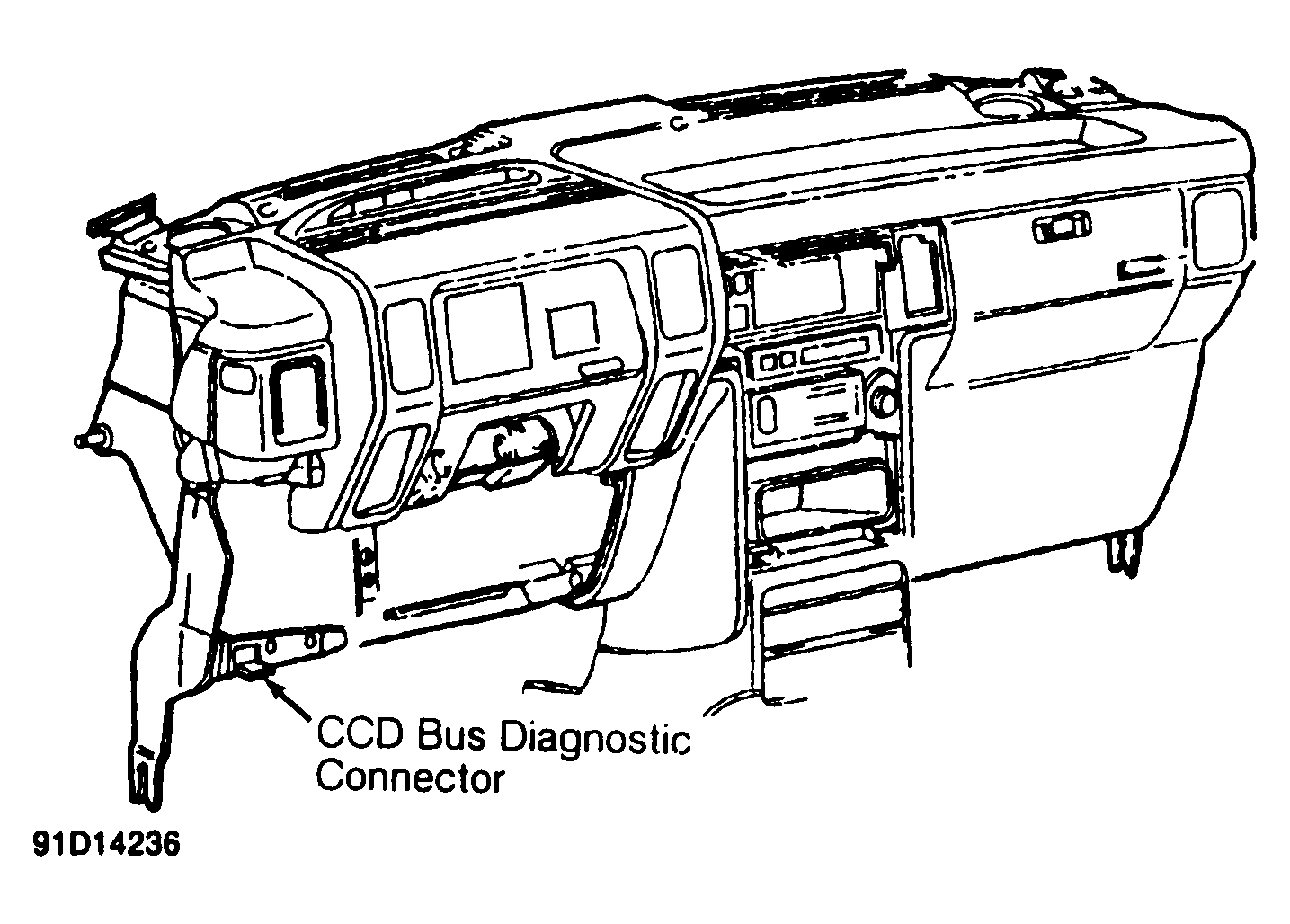

Diagnostic test procedures are designed to detect system faults as quickly as possible. Body and chassis fault codes are accessed through CCD bus diagnostic connector. CCD bus diagnostic connector is located under left side of dash. See Fig 1 . DRB-II tester is used to access information from CCD bus.
