1983 Plymouth Horizon 2.2 C, StandardFACTORY OEM SERVICE PROCEDURE

Temperature Cable (Front Wheel Drive Models)

  1. Twist self-adjusting clip in position 2" from heater end of cable core wire. Route cable through middle holes of brake support bracket and then forward of and around main wiring harness.

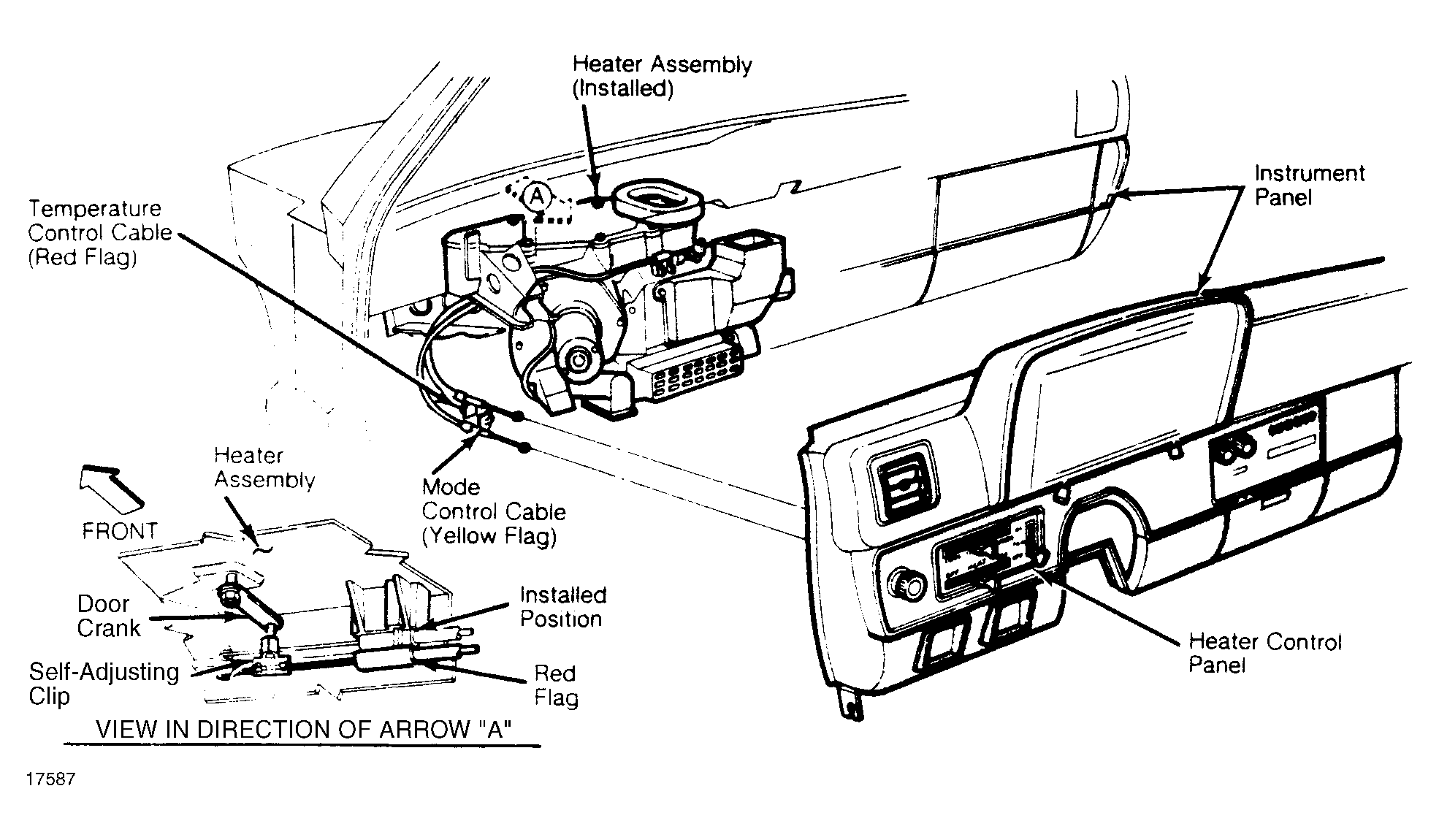

    Fig 1: Heater Assembly and Control Cable Routing (Horizon, Omni, Rampage and Scamp)
    G17587
