1982 Plymouth Sapporo Automatic TransFACTORY OEM SERVICE PROCEDURE

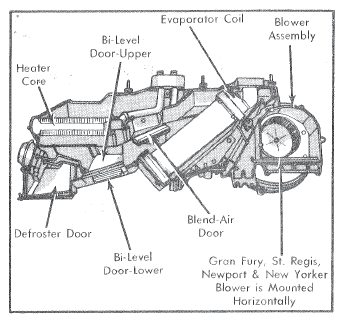

Blower Motor: Replacement
- Disconnect battery negative cable and blower motor feed wire. Remove glove box and plenum mounting brace on Cordoba and Mirada models.
- Remove blower mounting nuts and screws. On Gran Fury, New Yorker and Diplomat models, separate lower motor housing from upper housing, and remove blower motor mounting plate screws. On all models, remove blower motor assembly. To install, reverse removal procedures.
