1978 Plymouth Arrow Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

Fuel Check Valve

If the vehicle should roll over, one of the two balls in valve will close off fuel passage and prevent fuel leaks.

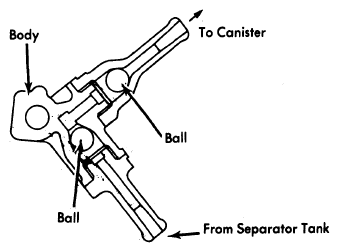

Fig 1: Fuel Check Valve
G09313043Courtesy of CHRYSLER GROUP, LLC
