2002 Oldsmobile Intrigue GLSFACTORY OEM SERVICE PROCEDURE

Installation Procedure

  1. Connect the pump motor connector (3) to the bottom of the EBCM.
  2. Install the EBCM (1) to the BPMV (4).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 6 EBCM to BPMV retainers (2).

    Tighten

    Tighten the retainers to 2.9 N.m (26 lb in).

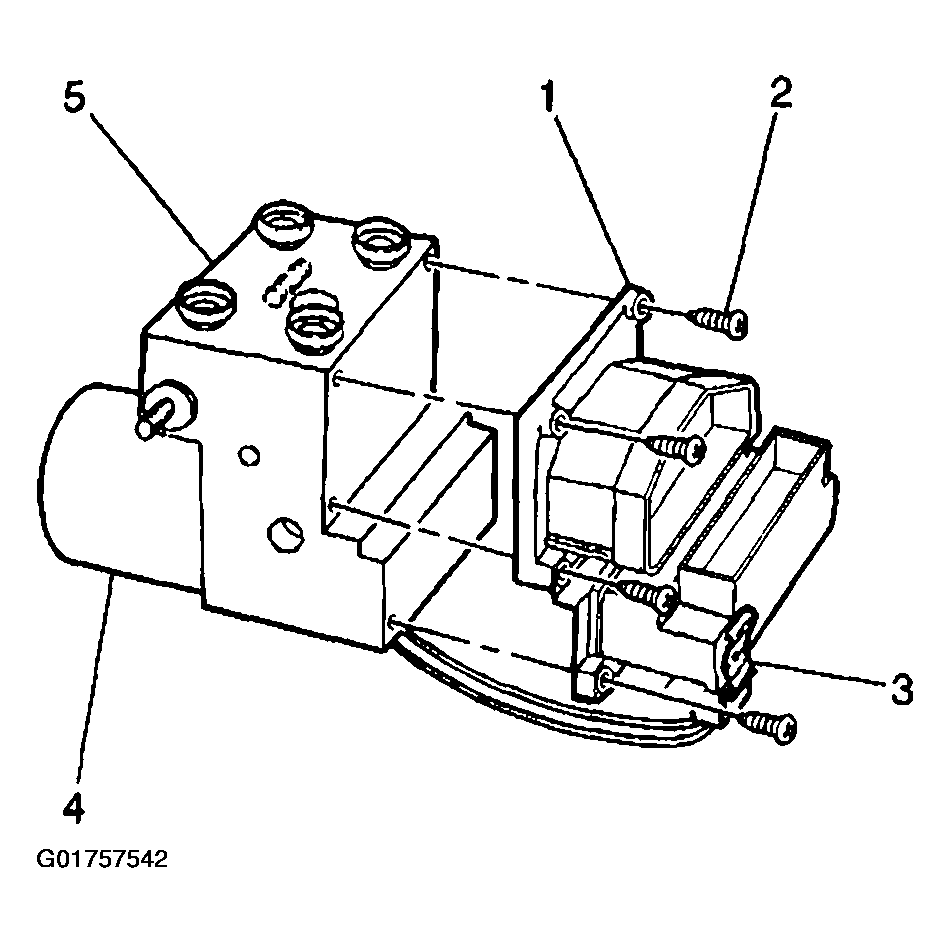

    Fig 1: Connect Pump Motor Connector To Bottom Of EBCM
    G01757542Courtesy of GENERAL MOTORS CORP.
  4. Connect the EBCM harness connector.
  5. Reengage the locking tab (1) to the EBCM harness connector.
  6. Install the air cleaner intake duct.
  7. Reposition the module and cables. Connect the cruise control module to the left strut tower. Refer to CRUISE CONTROL MODULE REPLACEMENT in Cruise Control.
  8. Connect the accelerator and cruise control cable to the accelerator control cable bracket.
  9. Install the front fender upper diagonal brace. Refer to BRACE REPLACEMENT - SHEET METAL DIAGONAL in Body Front End.
  10. Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT in Engine Mechanical-3.5 L.
  11. Perform the Diagnostic System Check - ABS .

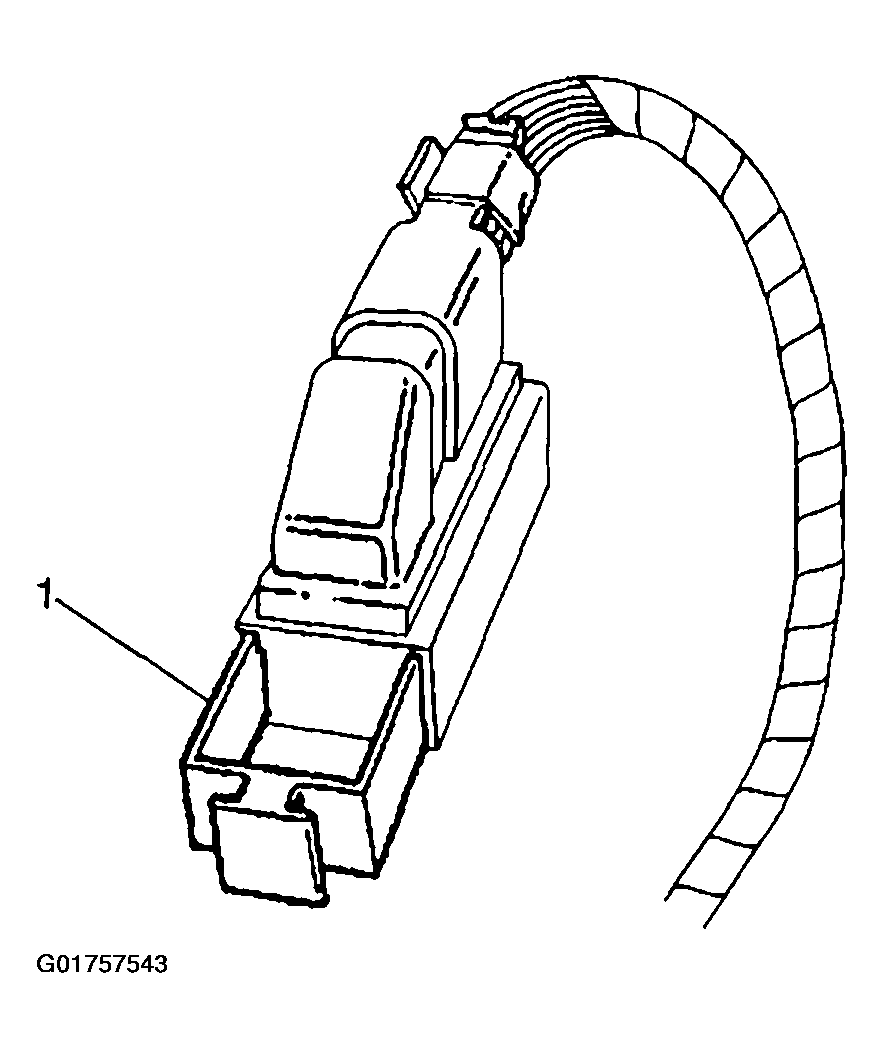

    Fig 2: Reengage Locking Tab To EBCM Harness Connector
    G01757543Courtesy of GENERAL MOTORS CORP.
