1998 Oldsmobile Aurora V8-4.0L VIN CFACTORY OEM SERVICE PROCEDURE
Scan Tool Data Value - Examples
If you have completed the On-Board Diagnostic (OBD) system check, if the diagnostics are functioning properly and if no DTCs display, you may use the Typical Scan Values in the table below for comparison within the appropriate transmission. These typical values are an average of display values recorded from normally operating vehicles. They represent the display from a normally functioning system.
You should never use a scan tool that displays faulty data. The condition should be reported to the manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis. Scan tests are performed under the following conditions:
^ Idle
^ Upper radiator hose is hot
^ Closed throttle
^ Park or Neutral
^ Closed Loop
^ Accessories OFF
^ Brake not applied

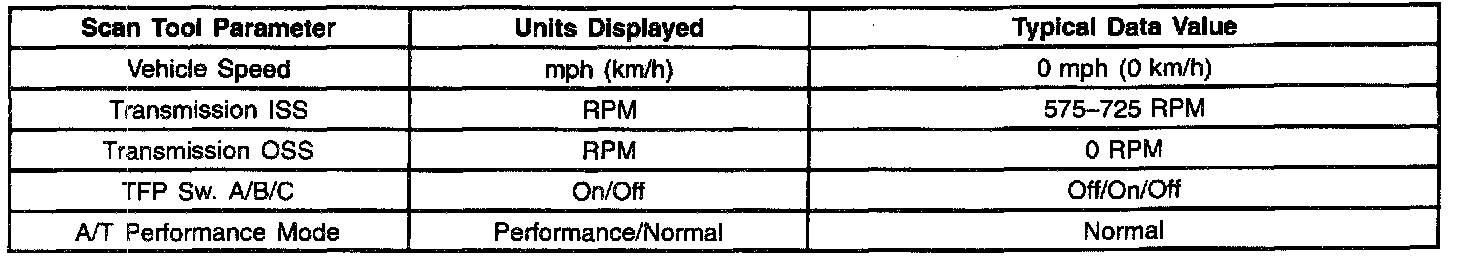

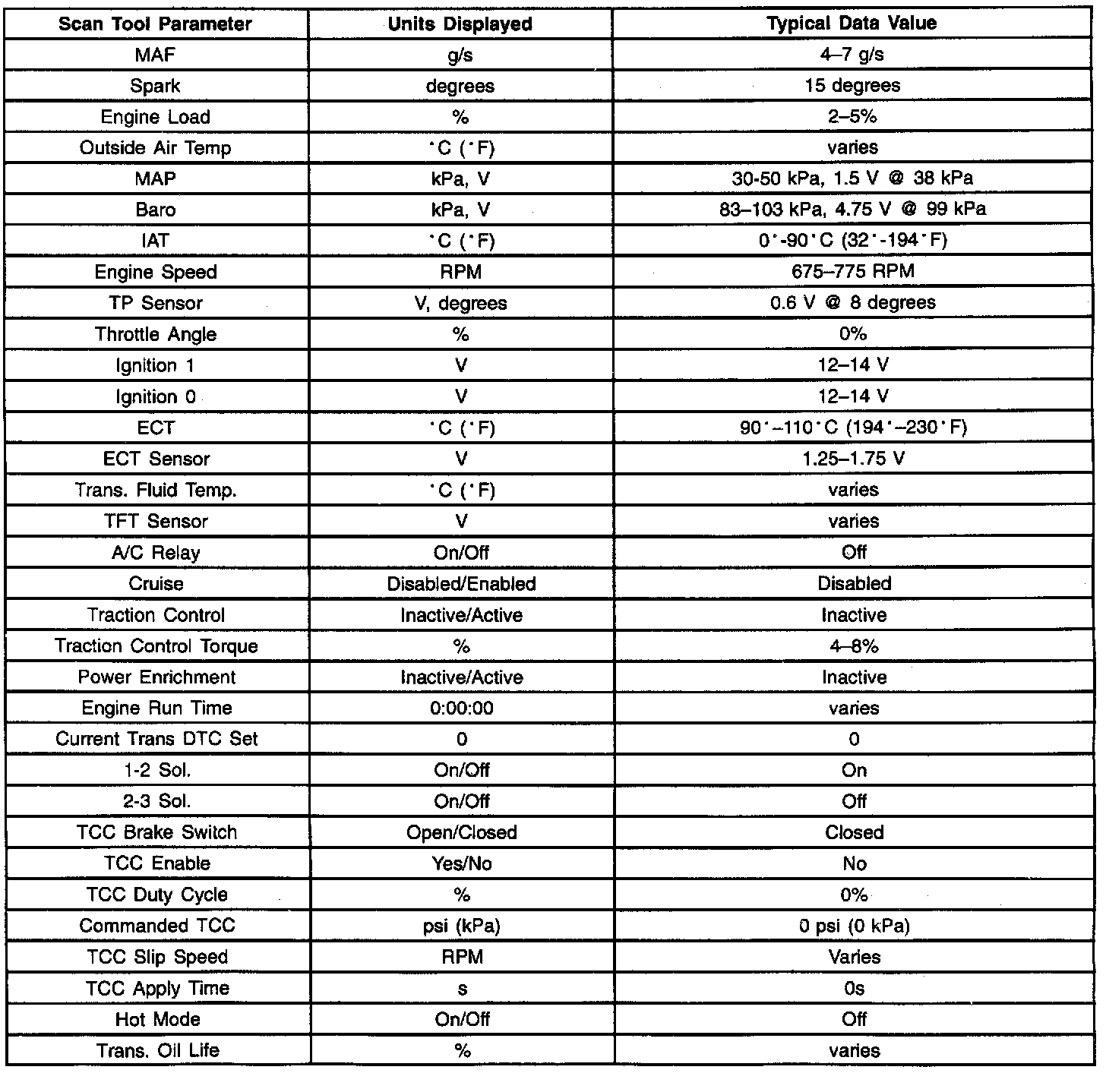

SCAN TOOL DATA VALUE EXAMPLES 1

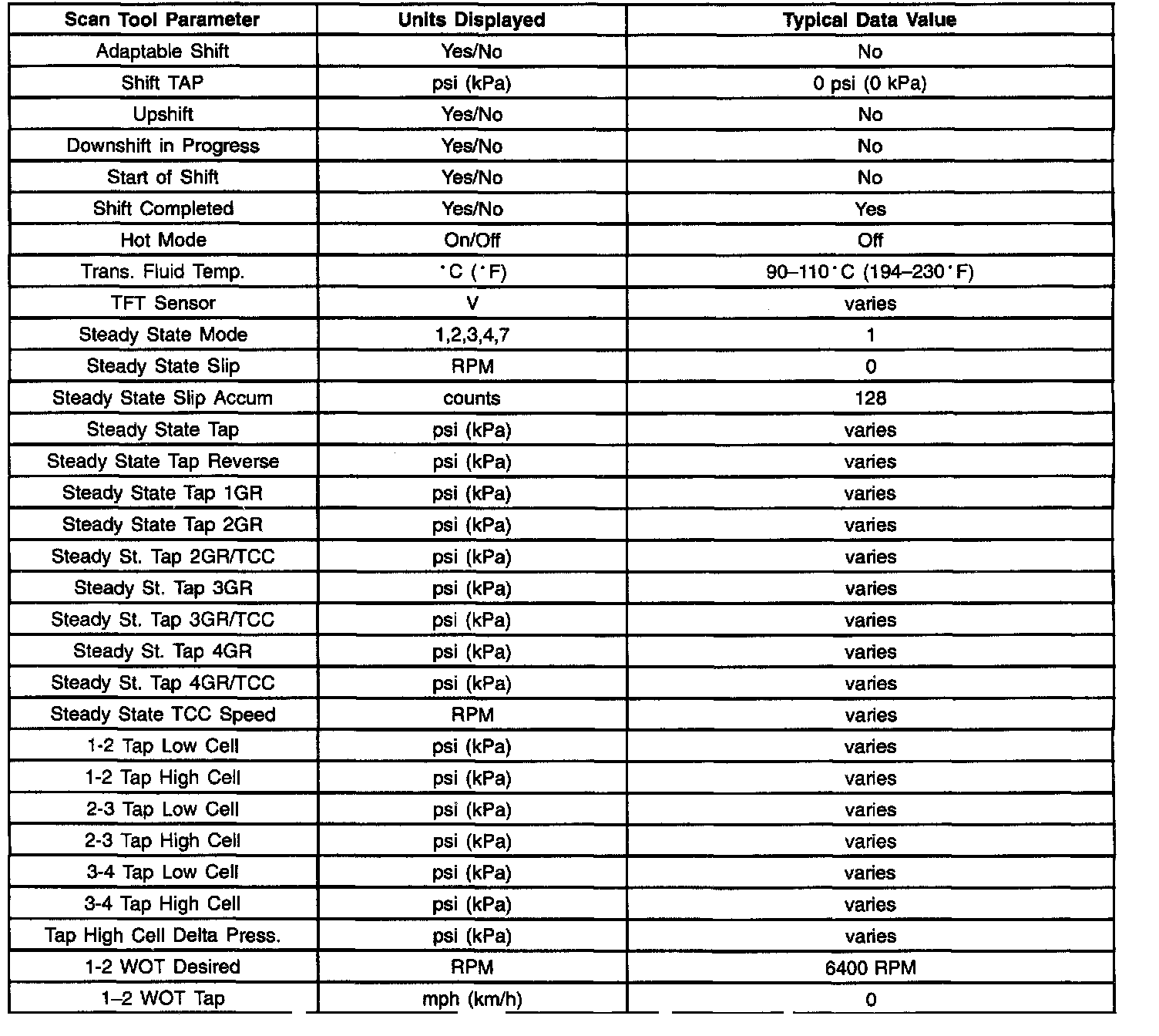

SCAN TOOL DATA VALUE EXAMPLES 2

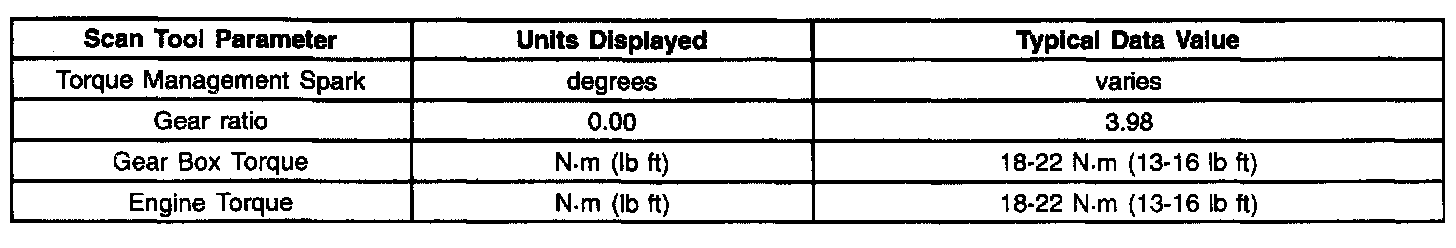

SCAN TOOL DATA VALUE EXAMPLES 3
You should never use a scan tool that displays faulty data. The condition should be reported to the manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis. Scan tests are performed under the following conditions:
^ Idle
^ Upper radiator hose is hot
^ Closed throttle
^ Park or Neutral
^ Closed Loop
^ Accessories OFF
^ Brake not applied

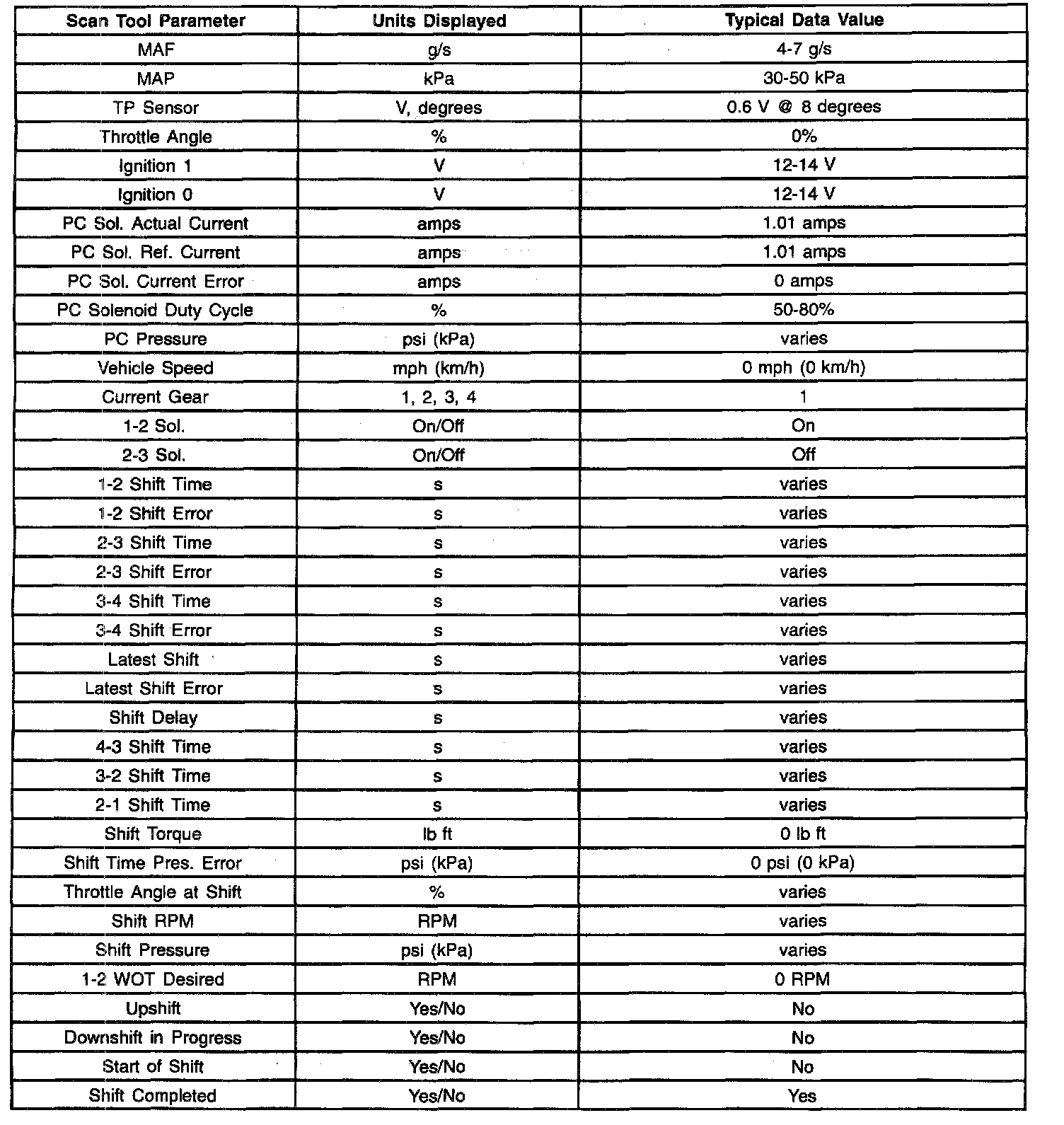

SCAN TOOL DATA VALUE EXAMPLES 1
SCAN TOOL DATA VALUE EXAMPLES 2
SCAN TOOL DATA VALUE EXAMPLES 3
