1998 Oldsmobile Aurora V8-4.0L VIN CFACTORY OEM SERVICE PROCEDURE
Vehicle Zoning

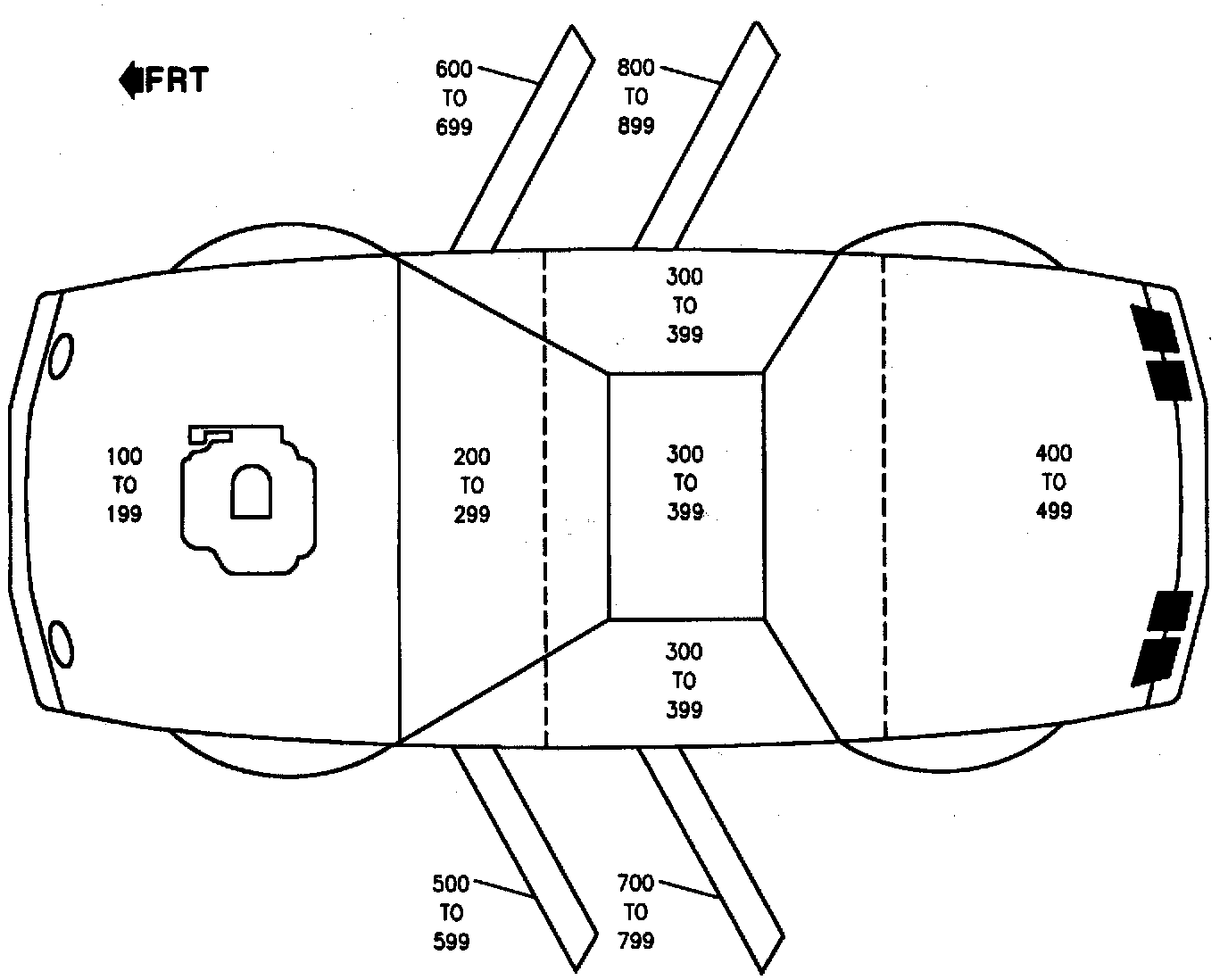

Vehicle Zoning:

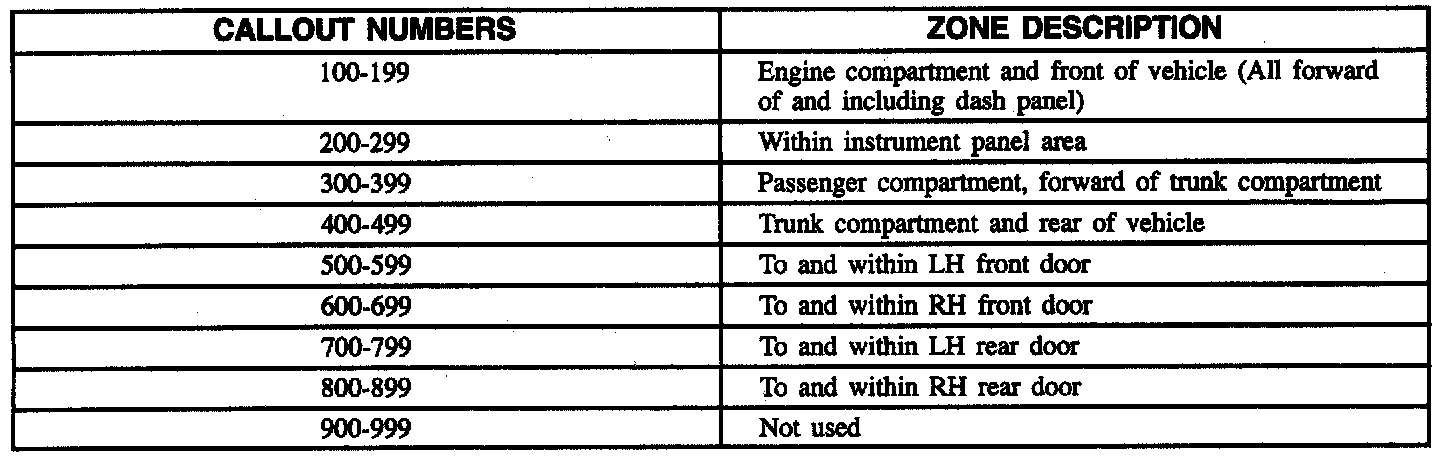

Call Out Numbers And Zone Description:
GROUND, IN-LINE CONNECTOR, PASS-THROUGH GROMMET AND SPLICE NUMBERING
All grounds, in-line connectors, pass-through grommets and splices are given identifying numbers according to where they are located in the vehicle. The above chart explain the numbering system.
