Diagnostic Aids
An intermittent may be caused by rubbed through wire insulation. Check for:

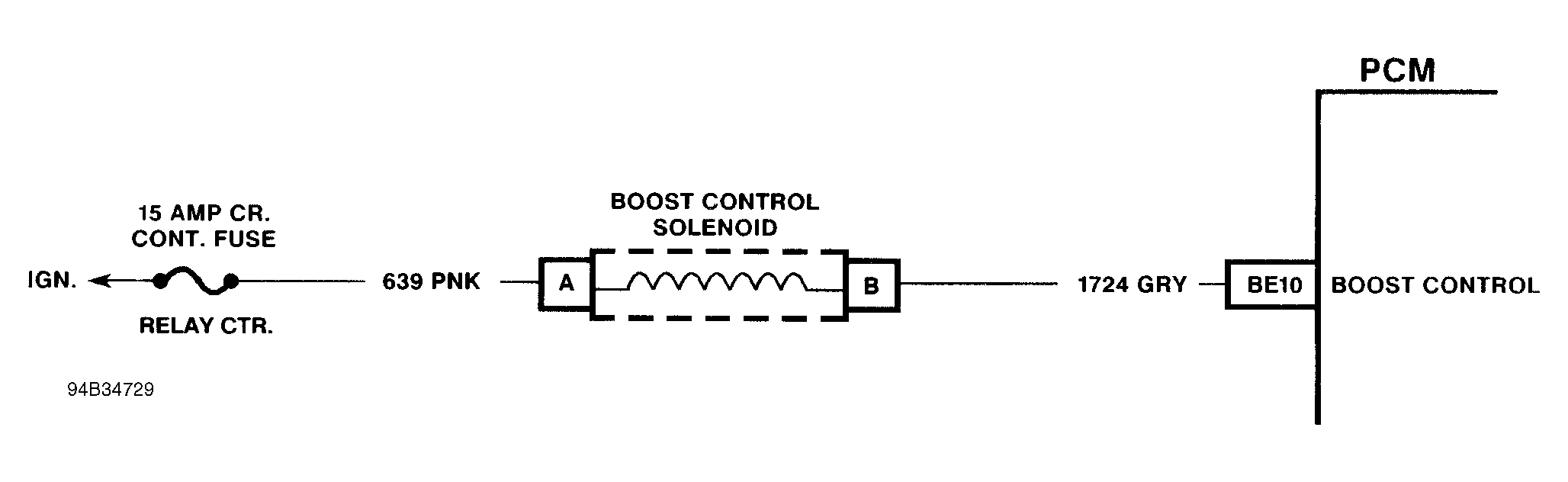

- Boost control driver circuit shorted to ground.
- Intermittent Test
Disconnect PCM Blue connector and install a DVOM to monitor voltage between PCM harness boost control driver circuit terminal and ground. With ignition on, observe voltage while moving related connectors and wiring harness. If failure is induced, voltage reading will change.
