1994 Oldsmobile BravadaFACTORY OEM SERVICE PROCEDURE
Idle Air Control (IAC) Valve

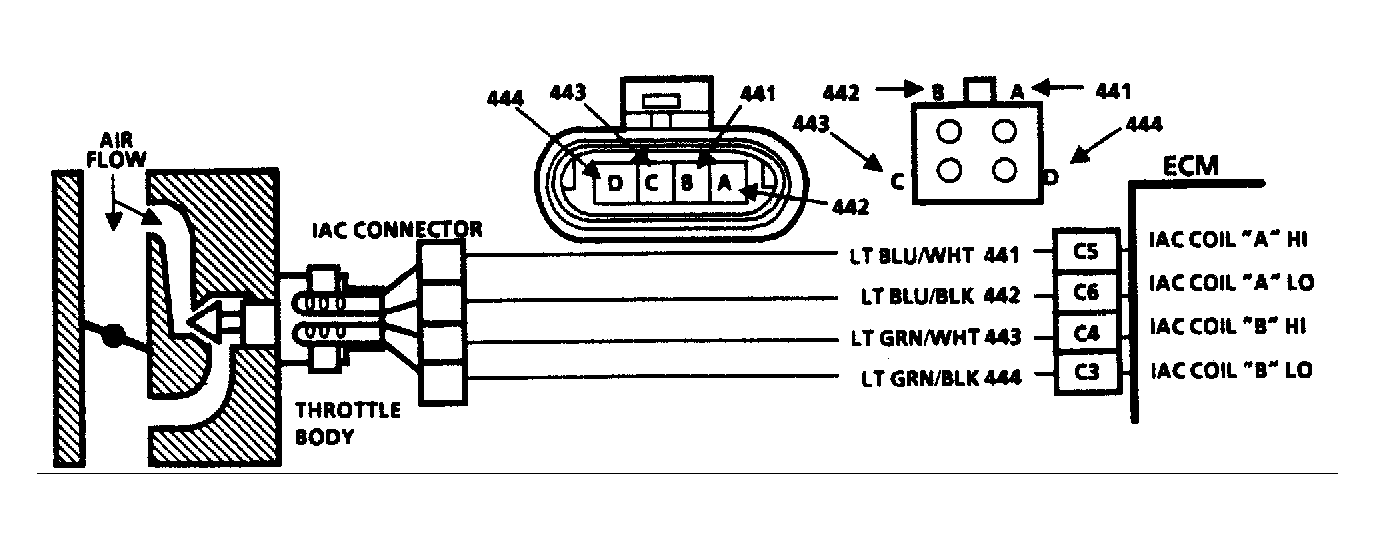

- Disconnect harness connector to motor. Check resistance across IAC coil terminals "A" to "B" and "C" to "D". See Fig 1 . Resistance should be 40-80 ohms. If okay, go to next step. If resistance is not as specified, replace IAC valve.
- Check resistance between IAC terminals "B" to "C" and "A" to "D". Resistance should be infinite. If resistance is not as specified, replace IAC valve.NOTE: Functional testing of Idle Air Control (IAC) valve requires a scan tester capable of cycling ECM output devices (bidirectional) or a special IAC Driver and Noid Light Set (222L or J-37027). Flow charts in appropriate TESTS W/CODES article may refer to Tech 1 tester, General Motor's bidirectional tester.
- G - TESTS W/CODES - 2.2L (S10 Pickup)
- G - TESTS W/CODES - 4.3L (Except S10 Pickup)
