1991 Oldsmobile Toronado V6-3800 3.8LFACTORY OEM SERVICE PROCEDURE
Part 3 of 3

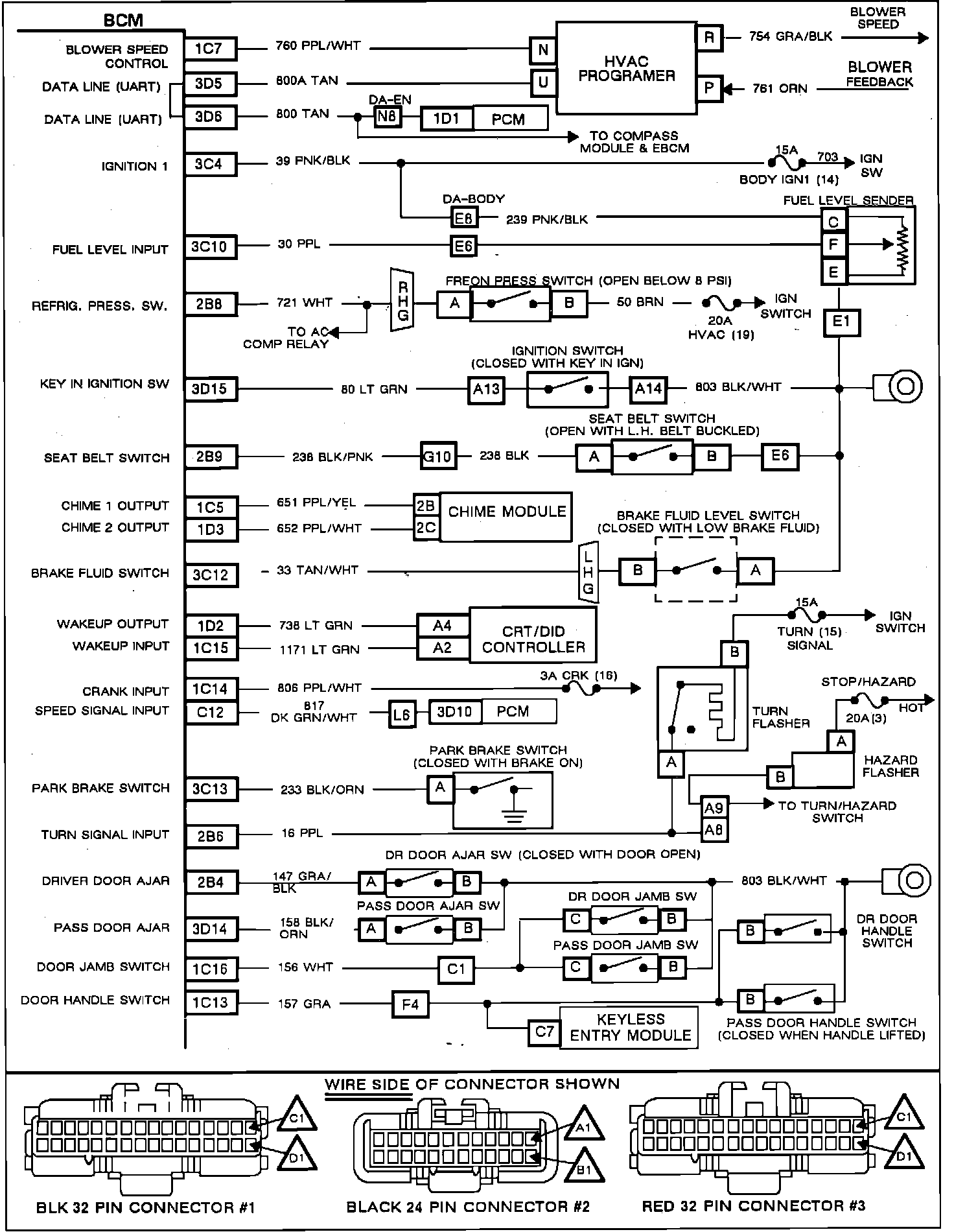

BCM Schematic (3 Of 3):
1C7 = Blower Speed Control
3D5 = Data Line (UART)
3D6 = Data Line (UART)
3C4 = Ignition 1
3C10 = Fuel Level Input
2B8 = Refrigerator Pressure Switch
3D15 = Key In Ignition Switch
2B9 = Seat Belt Switch
1C5 = Chime 1 Output
1D3 = Chime 2 Output
3C12 = Brake Fluid Switch
1D2 = Wake-up Output
1C15 = Wake-up Input
1C14 = Crank Input
C12 = Speed Signal Input
3C13 = Park Brake Switch
2B6 = Turn Signal Input
2B4 = Driver Door Ajar
3D14 = Passenger Door Ajar
1C16 = Door Jamb Switch
1C13 = Door Handle Switch
