1991 Oldsmobile Toronado V6-3800 3.8LFACTORY OEM SERVICE PROCEDURE
Part 1 of 3

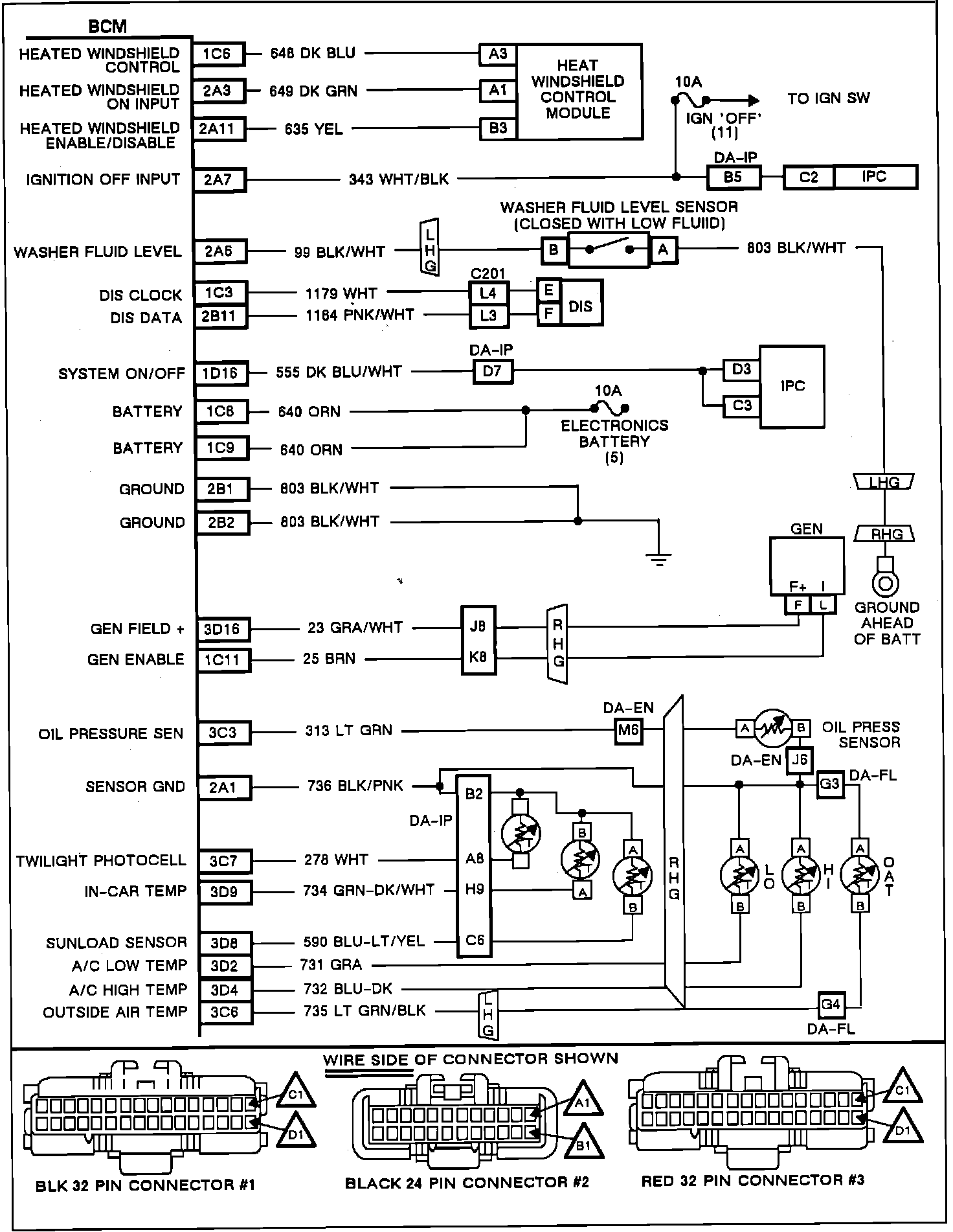

BCM Schematic (1 Of 3):
1C6 = Heated Windshield Control
2A3 = Heated Windshield ON Input
2A11 = Heated Windshield Enable/Disable
2A7 = Ignition Off Input
2A6 = Washer Fluid Level
1C3 = DIS Clock
2B11 = DIS Data
1D16 = System ON/OFF
1C8 = Battery
1C9 = Battery
2B1 = Ground
2B2 = Ground
3D16 = Generator Field +
1C11 = Generator Enable
3C3 = Oil Pressure Sensor
2A1 = Sensor Ground
3C7 = Twilight Photocell
3D9 = In-Car Temp.
3D8 = Sunload Sensor
3D2 = A/C Low Temp.
3D4 = A/C High Temp.
3C6 = Outside Air Temp.
