1989 Oldsmobile Toronado V6-3800 3.8LFACTORY OEM SERVICE PROCEDURE
Ignition Control Module: Service and Repair
REMOVAL
1. Disconnect 14-way connector at ignition module.
2. Disconnect Spark plug wires at coil assembly.
3. Remove nuts and washers (3) securing ignition module assembly to bracket.
4. Remove 6 Torx screws securing coil assembly to ignition module.
5. Note lead colors or mark for reassembly.
6. Disconnect connectors between coil and ignition module.
7. Remove ignition module.
INSTALLATION
1. Connect coil and connectors to ignition module.
2. Install 6 Torx screws torque to 3 N-m (27 lbs in).
3. Install nuts and washers securing assembly to bracket.
4. Connect plug wires.
5. Connect 14-way connector to module.
1. Disconnect 14-way connector at ignition module.
2. Disconnect Spark plug wires at coil assembly.
3. Remove nuts and washers (3) securing ignition module assembly to bracket.
4. Remove 6 Torx screws securing coil assembly to ignition module.
5. Note lead colors or mark for reassembly.
6. Disconnect connectors between coil and ignition module.
7. Remove ignition module.

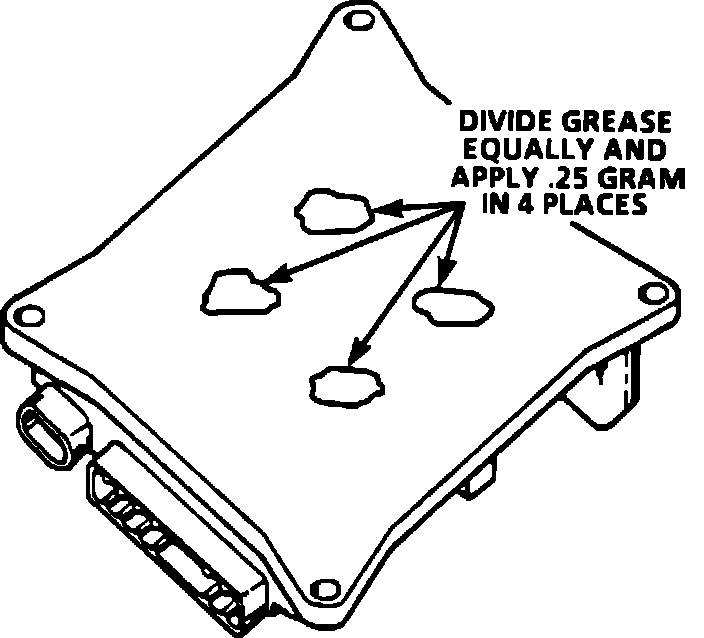

Dielectric Grease Application:
INSTALLATION
1. Connect coil and connectors to ignition module.
2. Install 6 Torx screws torque to 3 N-m (27 lbs in).
3. Install nuts and washers securing assembly to bracket.
4. Connect plug wires.
5. Connect 14-way connector to module.
