1989 Oldsmobile Toronado V6-3800 3.8LFACTORY OEM SERVICE PROCEDURE
Antilock Telltale

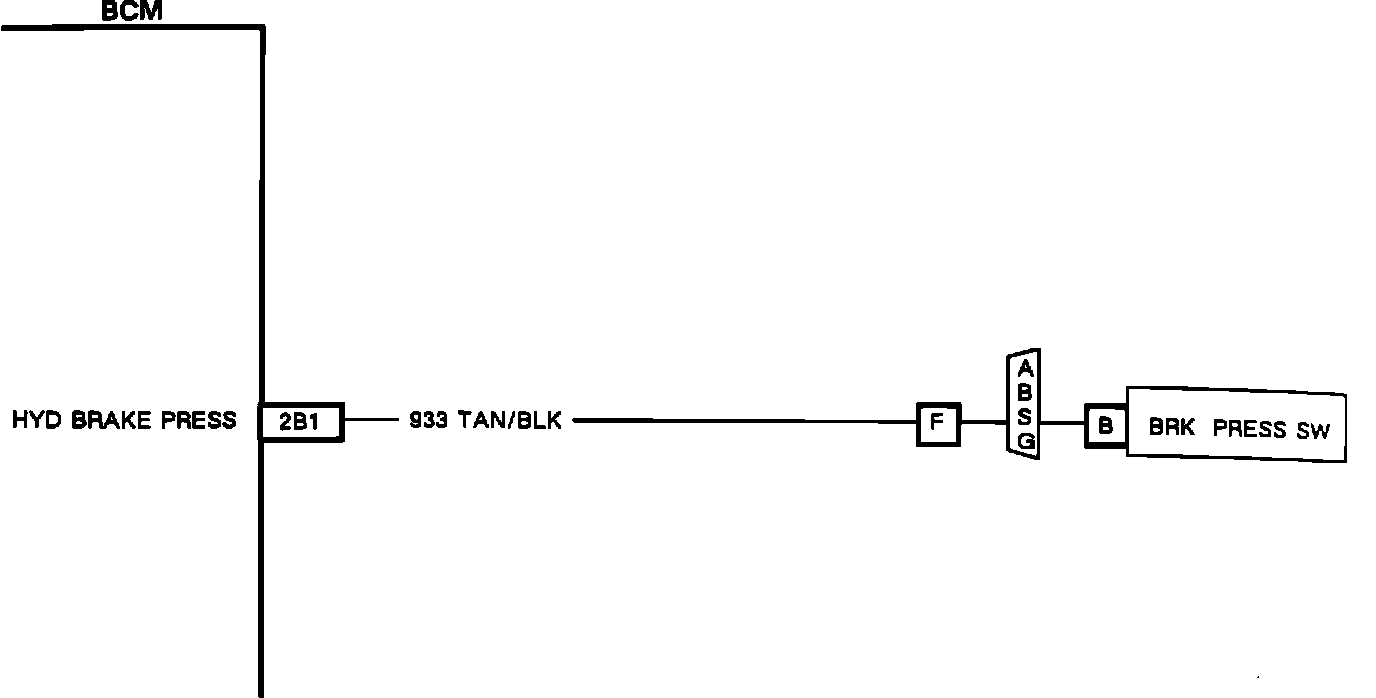

Antilock Warning Lamp Circuit:
TEST CONDITIONS:
1. Ignition "ON."
2. Vehicle equipped with anti-lock brake system, BCM checks EEPROM for this.
FAILURE CONDITIONS:
Brake fluid pressure circuit low indicating low brake pressure for at least X seconds.
ACTION TAKEN:
Turn Antilock telltale "ON."
DIAGNOSIS:
Refer to ANTI-LOCK BRAKE SYSTEMS in BRAKES.
