2024 Nissan-Datsun Frontier SL, RWDFACTORY OEM SERVICE PROCEDURE

Removal and Installation

REMOVAL

Disconnect the battery negative terminal. Refer to Removal and Installation .

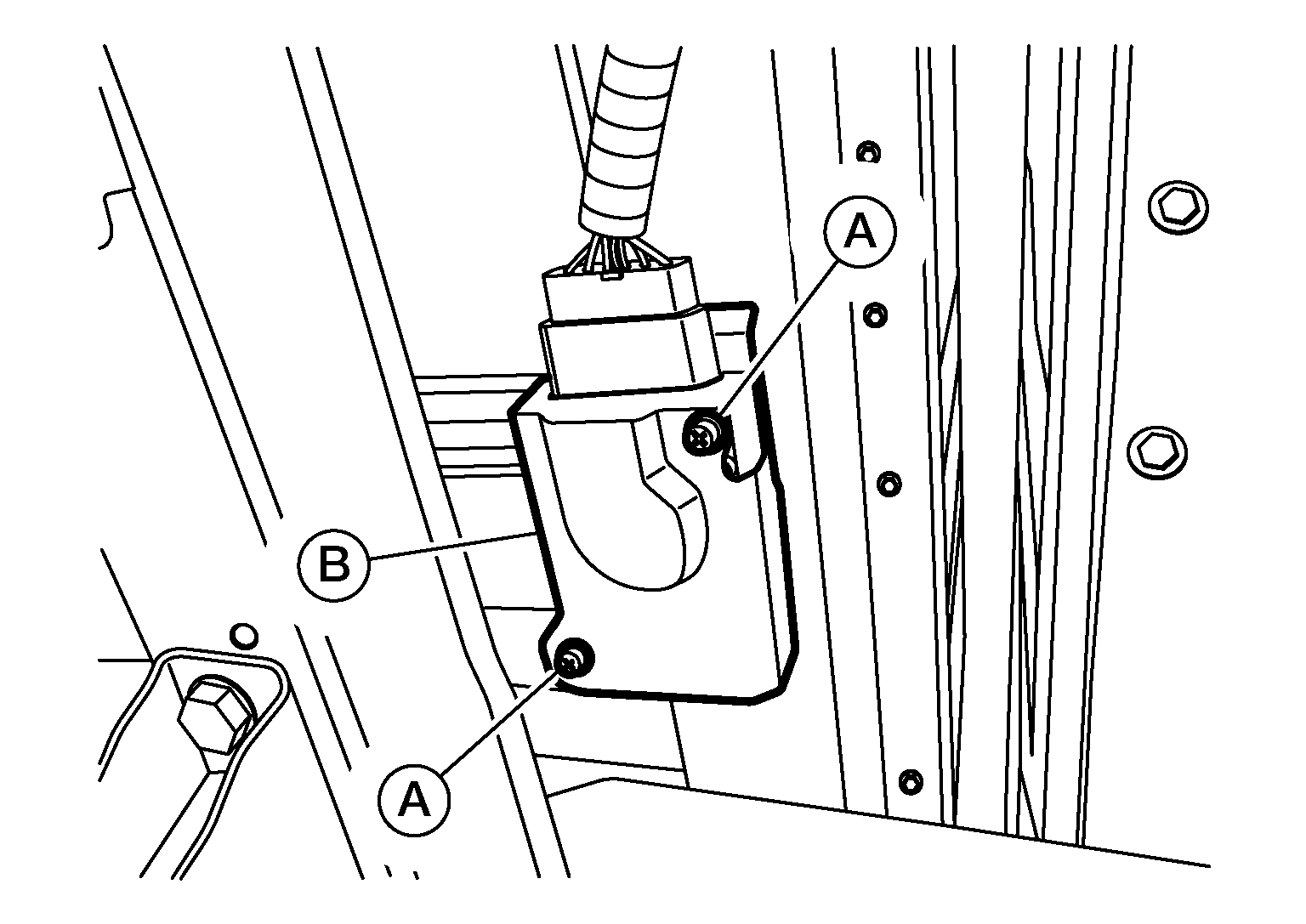

Remove screws (A) from fuel pump control module cover (B).

Courtesy of NISSAN NORTH AMERICA, INC.
Disconnect the harness connector from fuel pump control module.

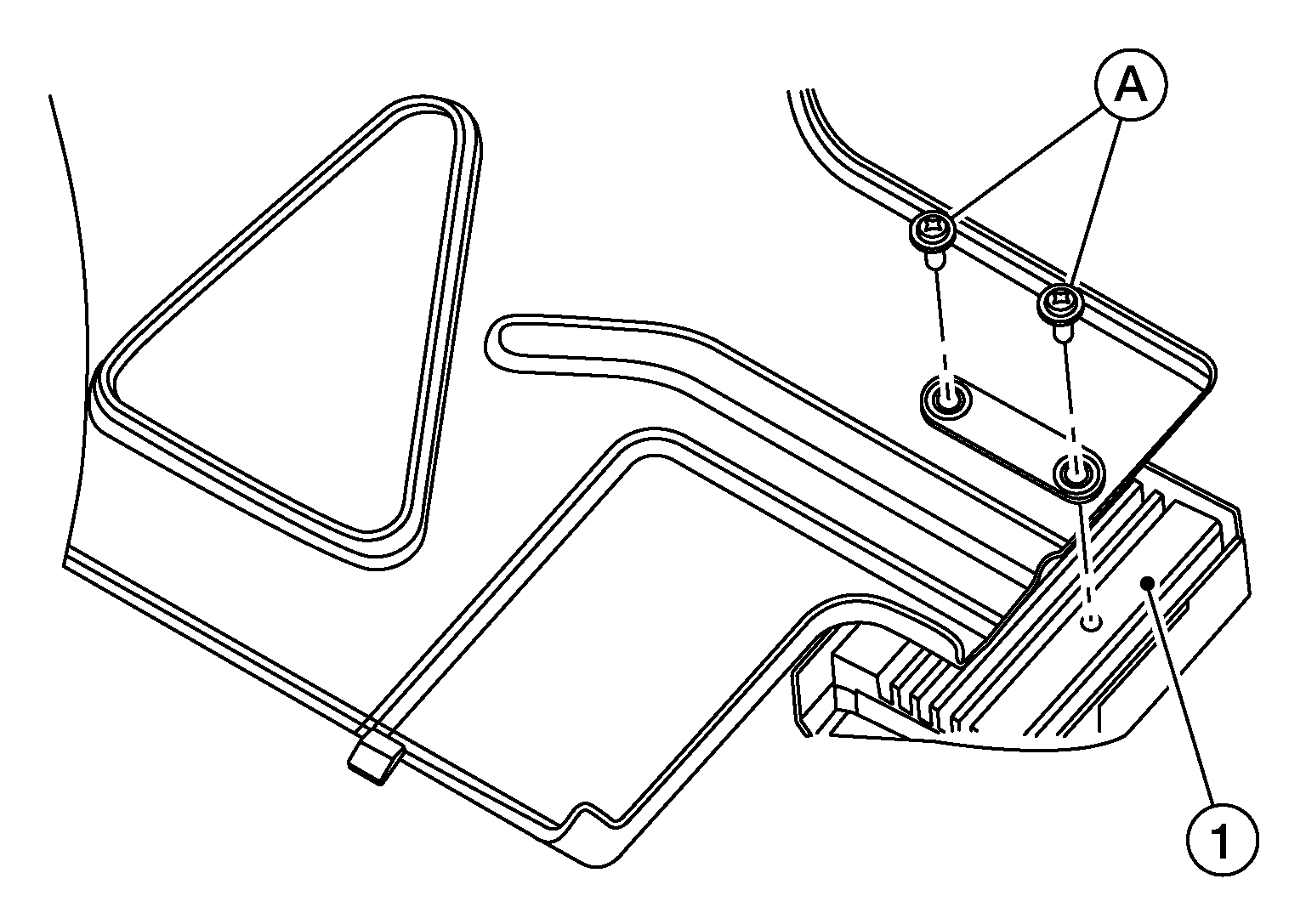

Remove screws (A) and fuel pump control module (1).

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.
