Removal and Installation

REMOVAL

1. Remove battery tray. Refer to Removal and Installation .
2. Remove front wheel and tire. Refer to Removal and Installation

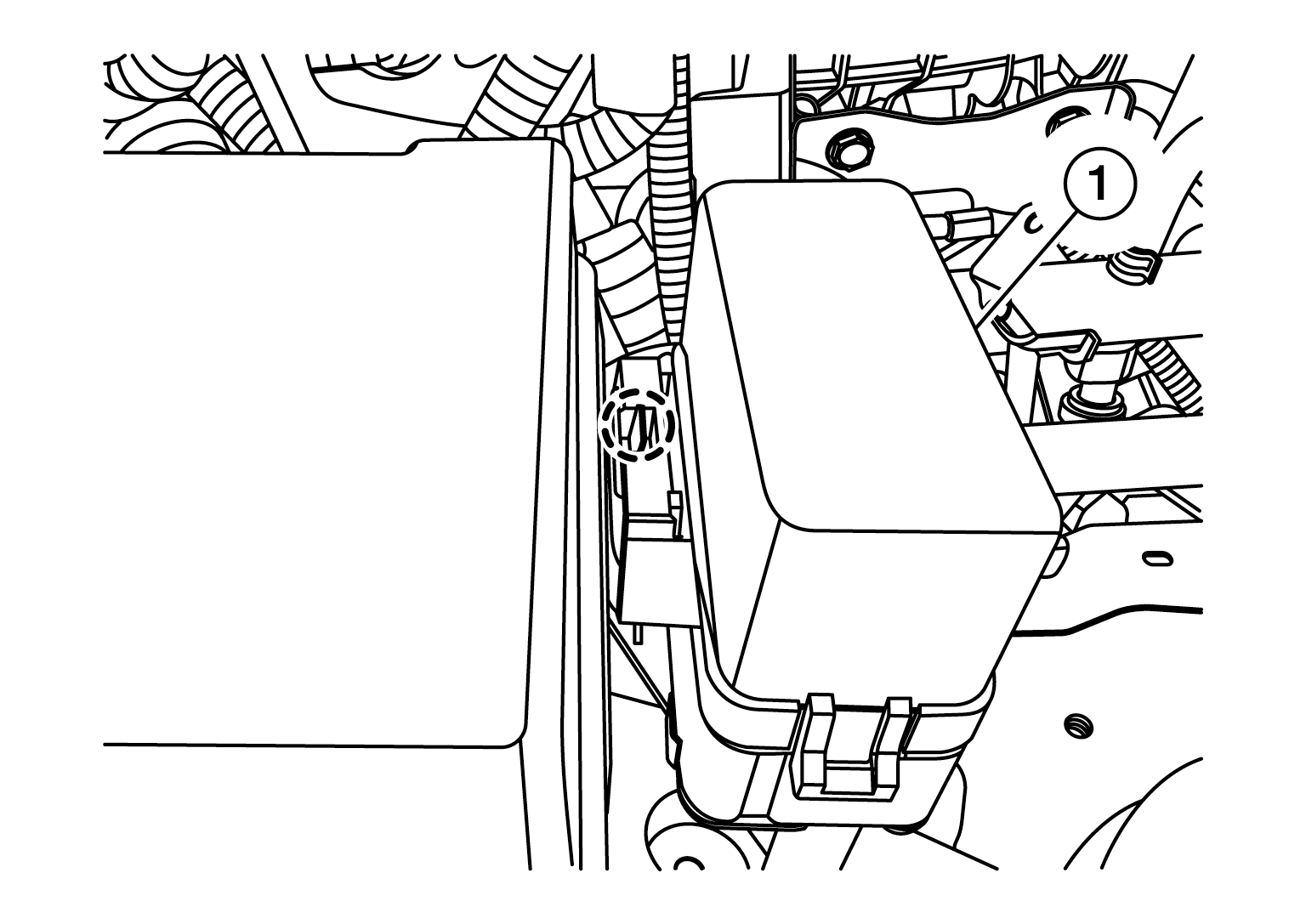

3. Release the pawl and reposition the fuse block (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

4. Remove the fender protector (RH). Refer to Removal and Installation .

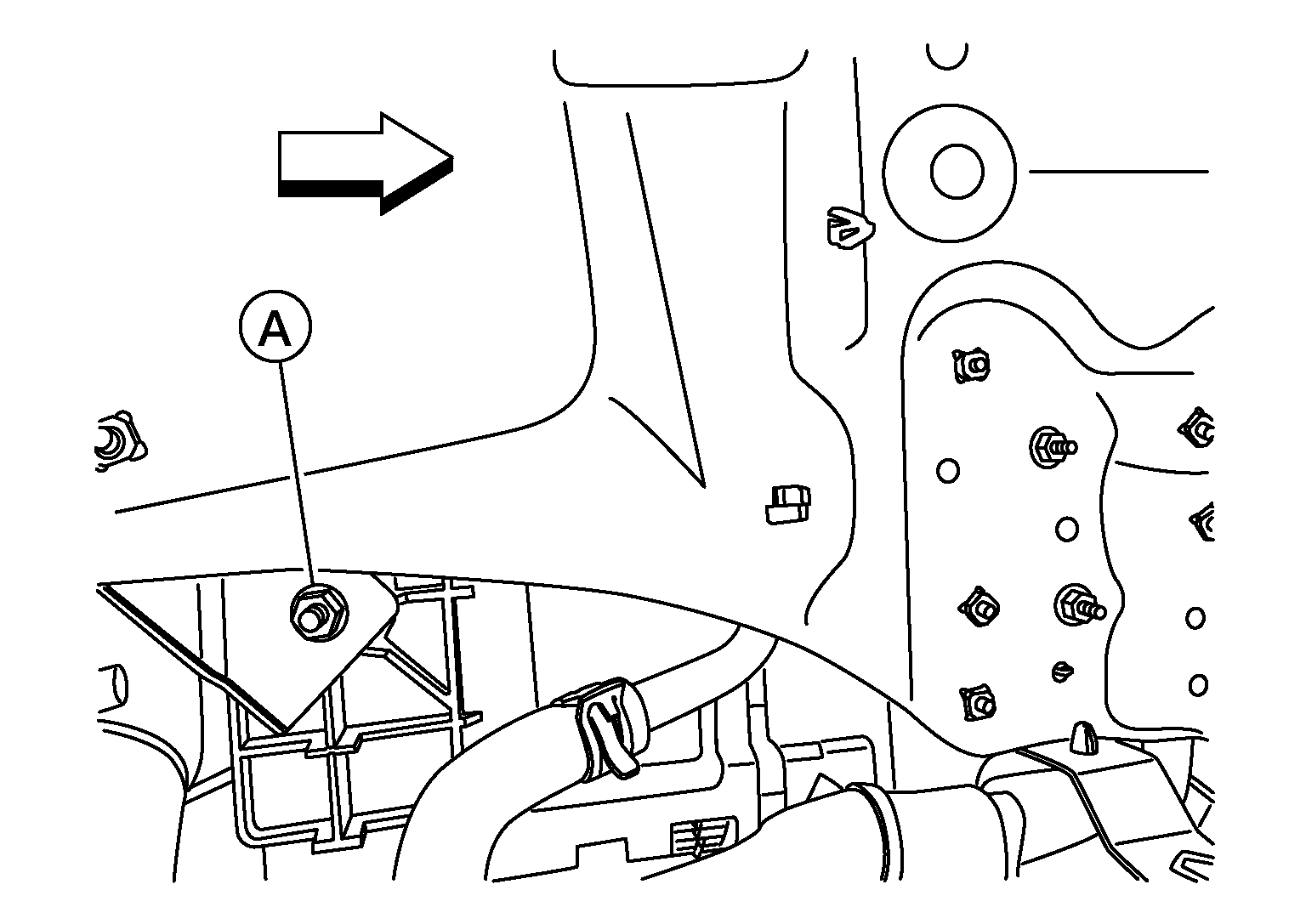

5. Remove nut (A) for IPDM E/R cover (lower).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Vehicle front

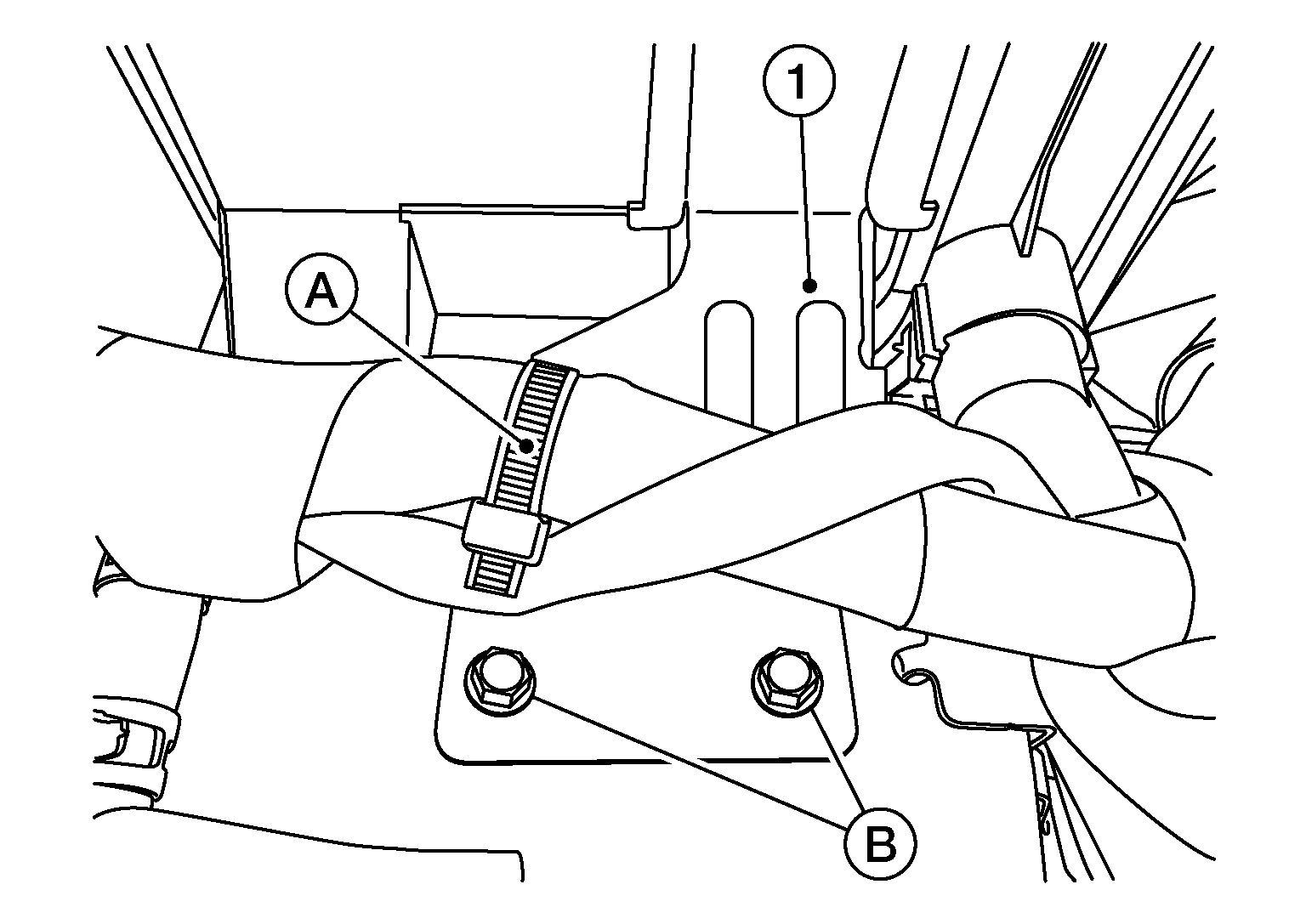

6. Remove harness retainer (A) and bolts (B) from fuse block bracket (1) and remove fuse block bracket.

   Courtesy of NISSAN NORTH AMERICA, INC.

7. Remove IPDM E/R cover.

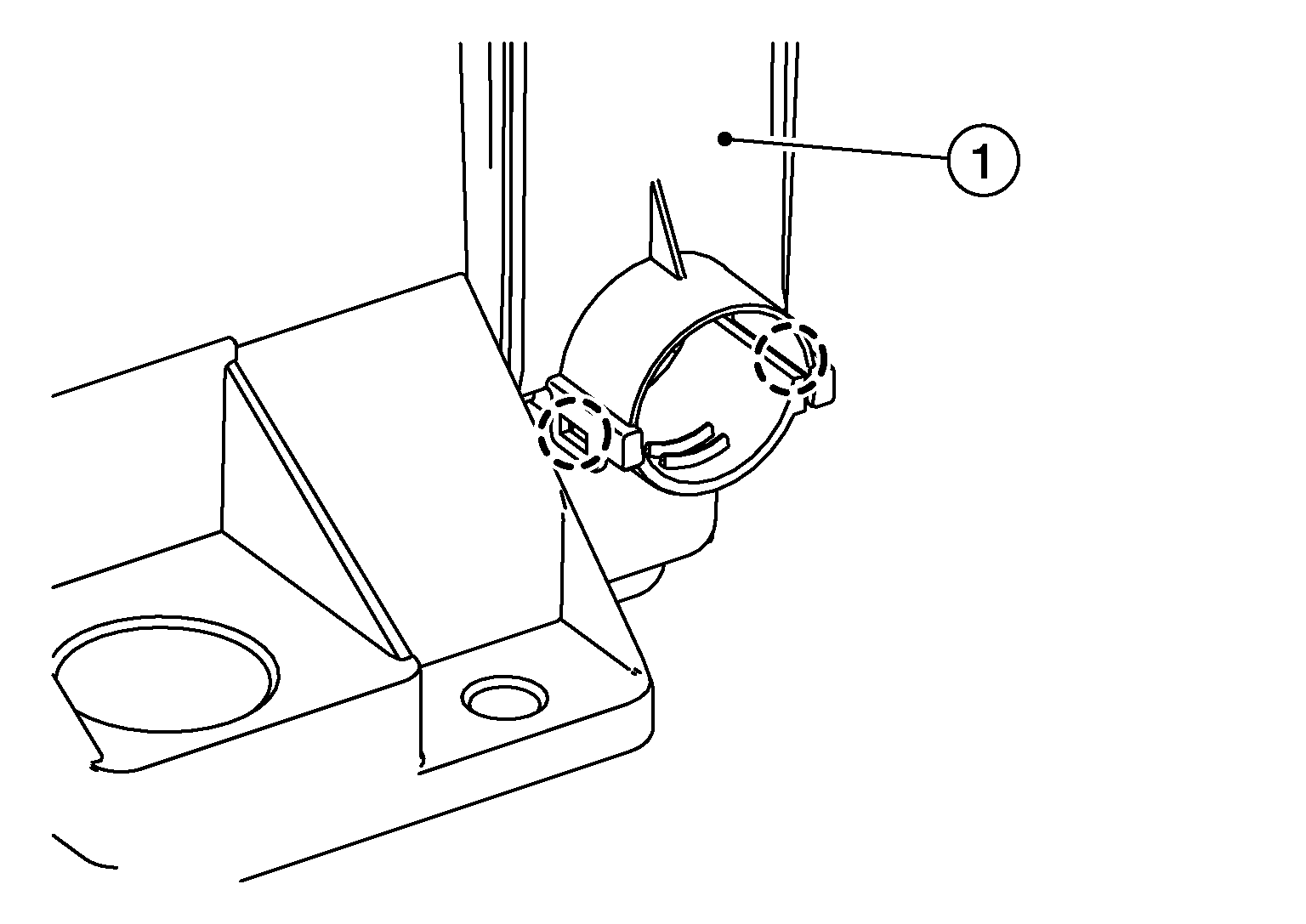

8. Release pawls and remove IPDM E/R cover (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

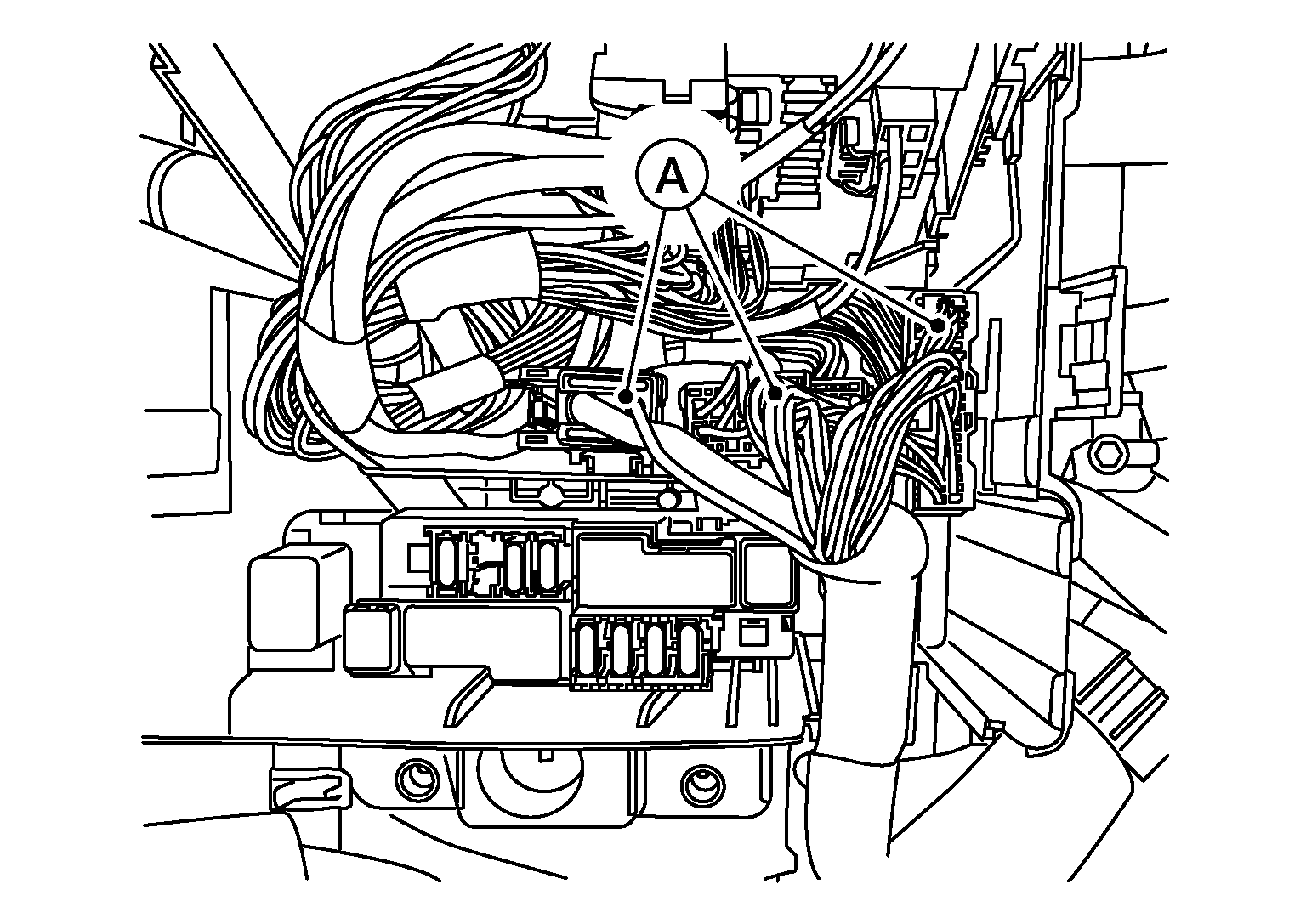

9. Disconnect harness connectors (A).

   Courtesy of NISSAN NORTH AMERICA, INC.

10. Remove bolts securing IPDM E/R cover (lower) and reposition IPDM E/R cover (lower).
11. Disconnect harness connectors from electric intake valve timing control module. Refer to Harness Connector (lever locking type).

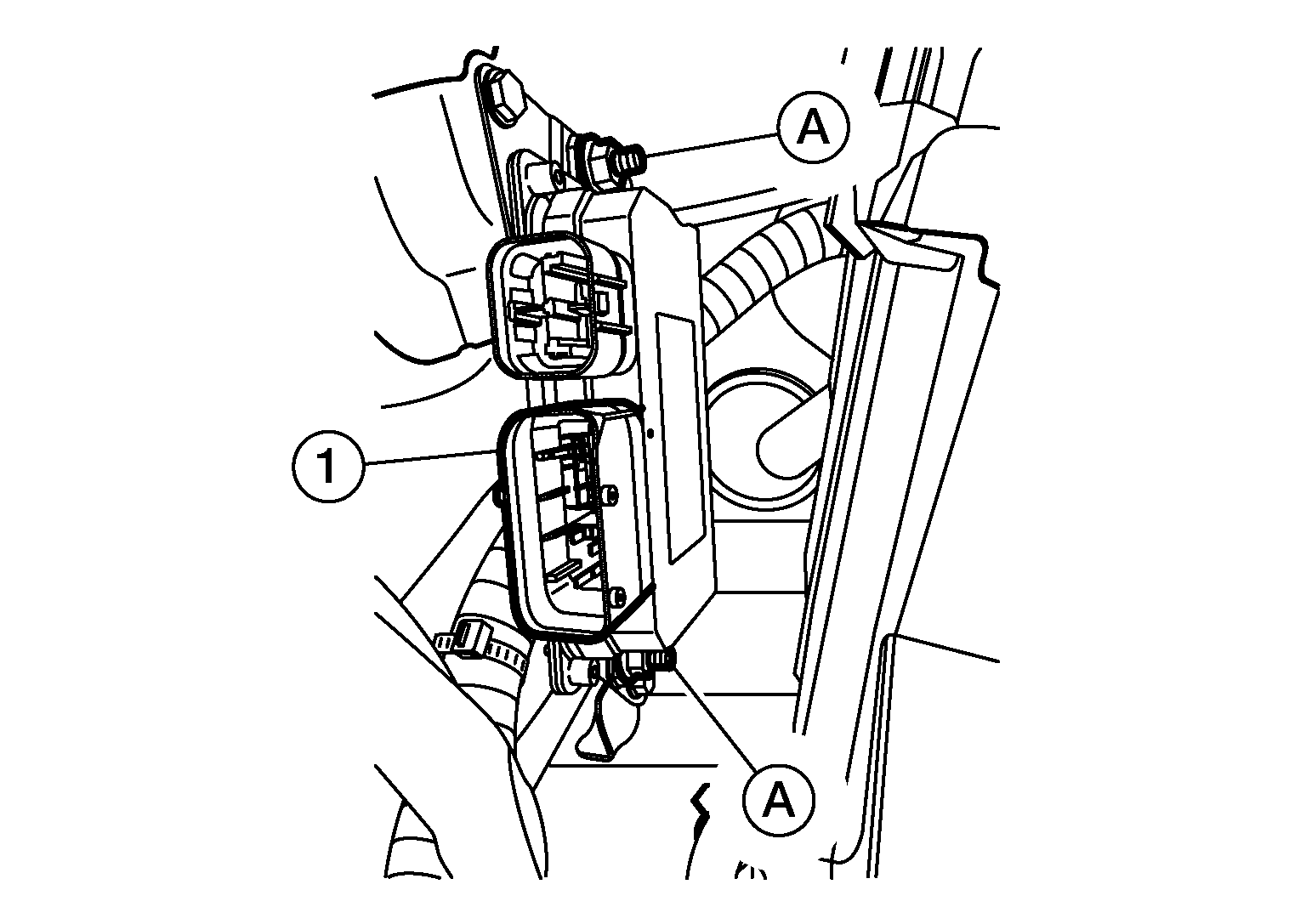

12. Remove nuts (A), and remove electric intake valve timing control module (1).

    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION:

    Never touch harness connector pins with bare hands.

INSTALLATION

Installation is in the reverse order of removal.
