Component Function Check
- INSPECTION START
Turn ignition switch OFF, and restart engine.
Does the engine start?
YES
With CONSULT: GO TO 2.
YES
Without CONSULT: GO TO 3.
NO
Refer to Diagnosis Procedure .
- CHECK IGNITION SIGNAL FUNCTION-1
With CONSULT
- Perform "POWER BALANCE" in "ACTIVE TEST" mode of "ENGINE" with CONSULT.
- Check that each circuit produces a momentary engine speed drop.
Is the inspection result normal?
YES
INSPECTION END
NO
Refer to Diagnosis Procedure .
- CHECK IGNITION SIGNAL FUNCTION-2
Without CONSULT
- Let engine idle.

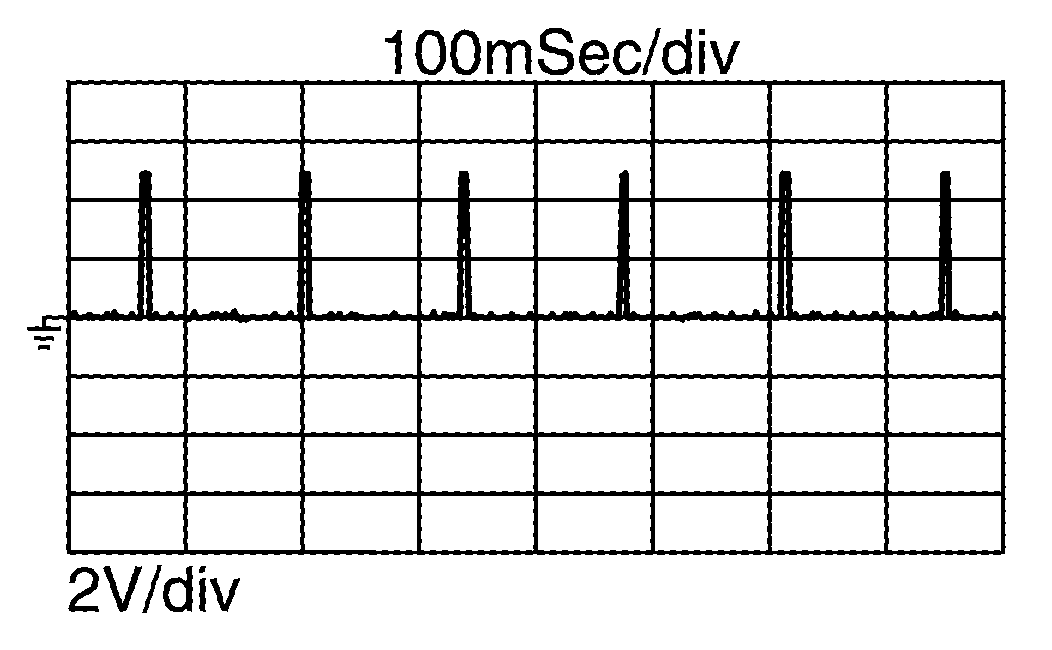

- Read the voltage signal between ECM harness connector terminals with an oscilloscope.
ECM
Voltage signal
+
-
Connector
Terminal
Connector
Terminal
F25
109
E16
162
106
105
103
NOTE: The pulse cycle changes depending on RPM at idle.
Is the inspection result normal?
YES
INSPECTION END
NO
Refer to Diagnosis Procedure .
