Component Function Check
- INSPECTION START
Turn ignition switch to START.
Are any cylinders ignited?
YES
GO TO 2.
NO
Refer to Diagnosis Procedure .
- CHECK FUEL INJECTOR FUNCTION
With CONSULT
- Start engine.
- Perform "POWER BALANCE" in "ACTIVE TEST" mode of "ENGINE" with CONSULT.
- Check that each circuit produces a momentary engine speed drop.
Without CONSULT

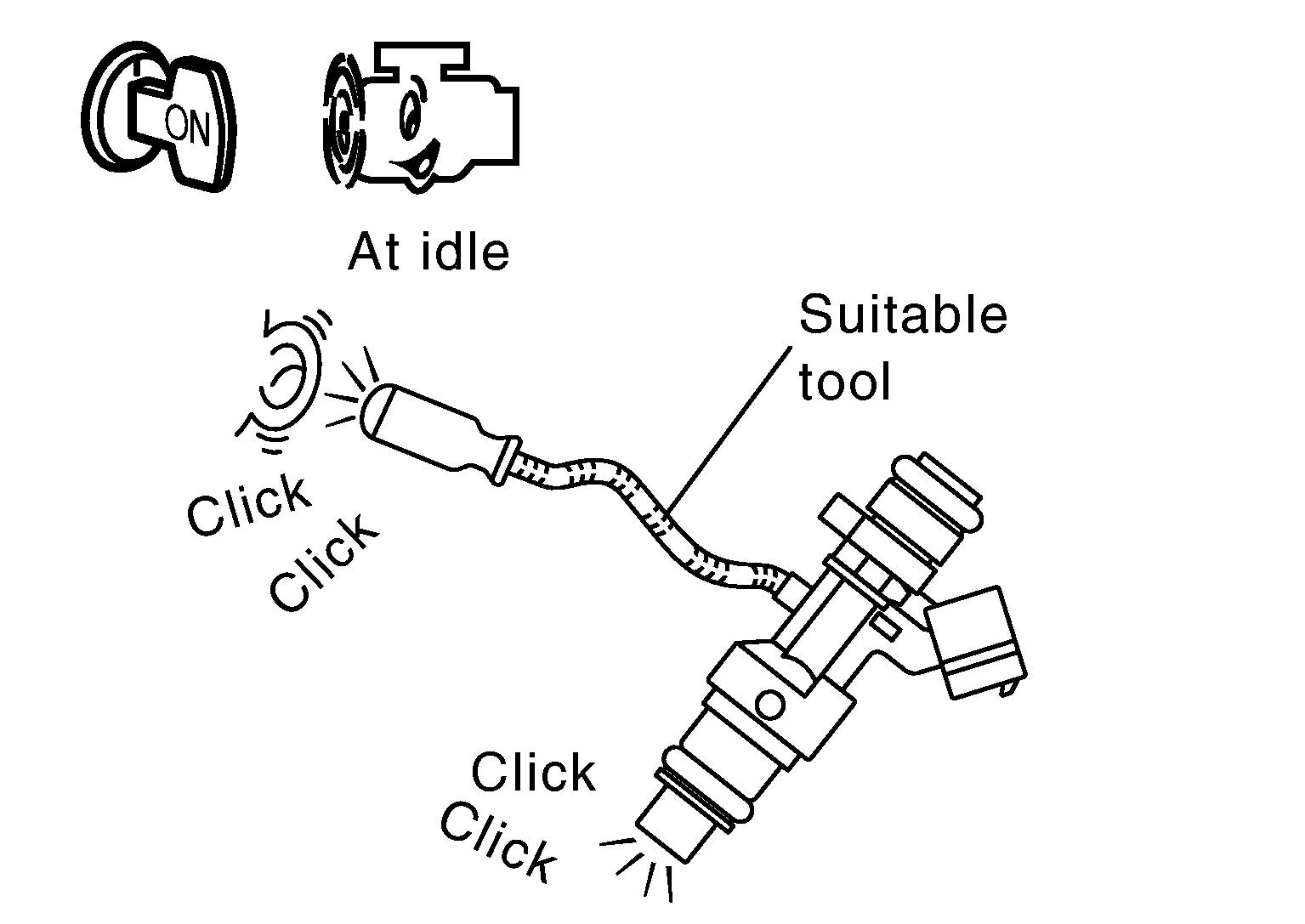

- Start engine and let it idle.
- Listen to each fuel injector operating sound.
Clicking sound should be heard.
Is the inspection result normal?
YES
INSPECTION END
NO
Refer to Diagnosis Procedure .
