Component Location
|

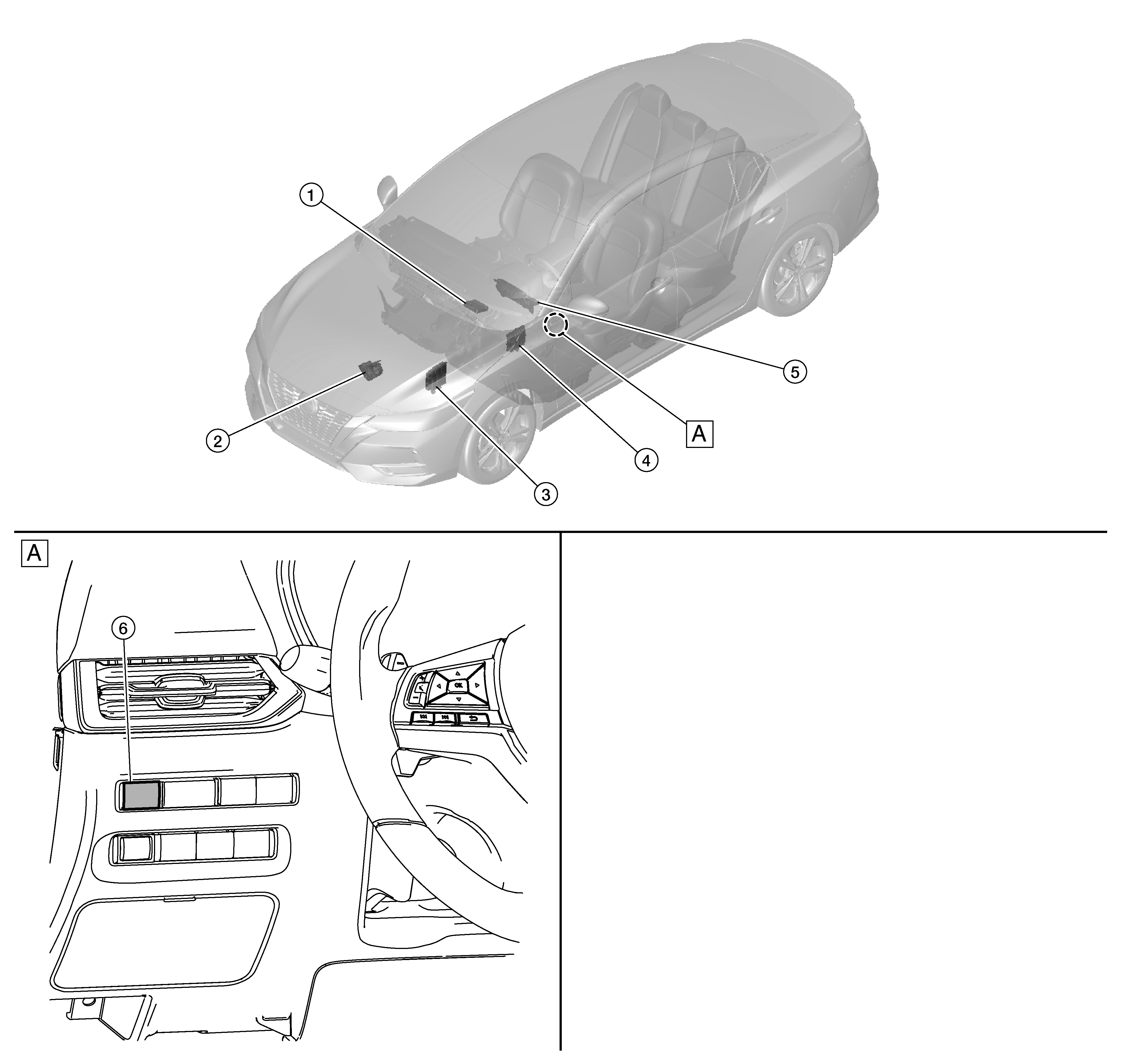

A. |
Instrument lower panel LH |
|
No. |
Component |
Function |
|
1. |
A/C auto amp. |
The A/C auto amp. receives the ECO mode signal from the BCM via CAN communication. For detailed component location, refer to Component Location . |
|
2. |
Electric throttle control actuator |
Refer to Component Description . |
|
3. |
ECM |
The ECM receives the ECO mode signal from the BCM via CAN communication. For detailed component location, refer to Component Location . |
|
4. |
BCM |
For detailed component location, refer to Component Location |
|
5. |
Combination meter |
The combination meter receives the ECO mode indicator signal via CAN communication from the BCM. For detailed component location. Refer to Component Location (with Type A meter) or Component Location (with Type B meter). |
|
6. |
ECO mode switch |
Refer to Component Description . |
