Component Parts Location
|

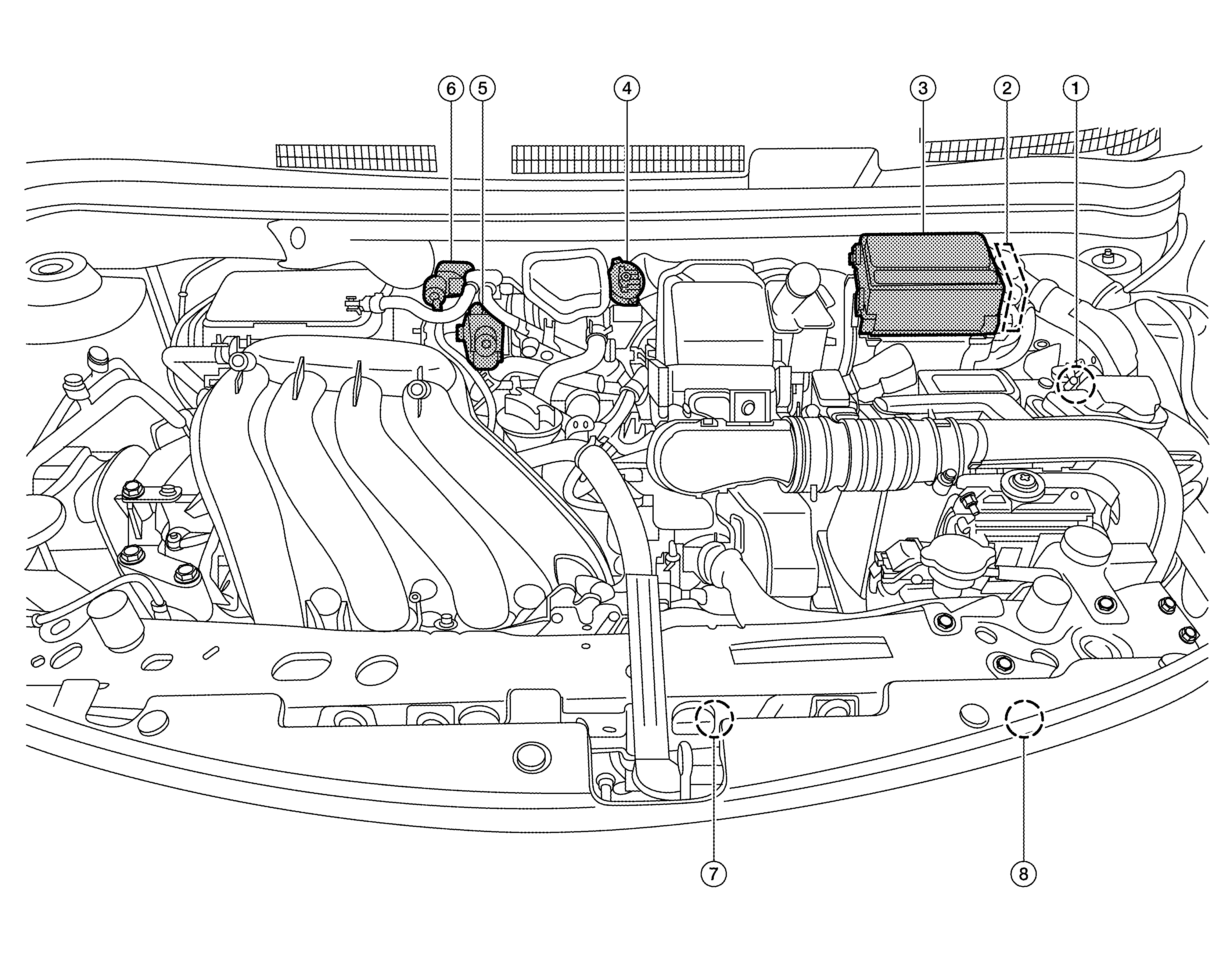

1. |
Battery current sensor |
2. |
ECM |
3. |
IPDM E/R Refer to Component Parts Location |
|
4. |
Mass air flow sensor (with intake air temperature sensor) |
5. |
Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
6. |
EVAP canister purge volume control solenoid valve |
|
7. |
Cooling fan motor |
8. |
Refrigerant pressure sensor Refer to Component Parts Location |
|

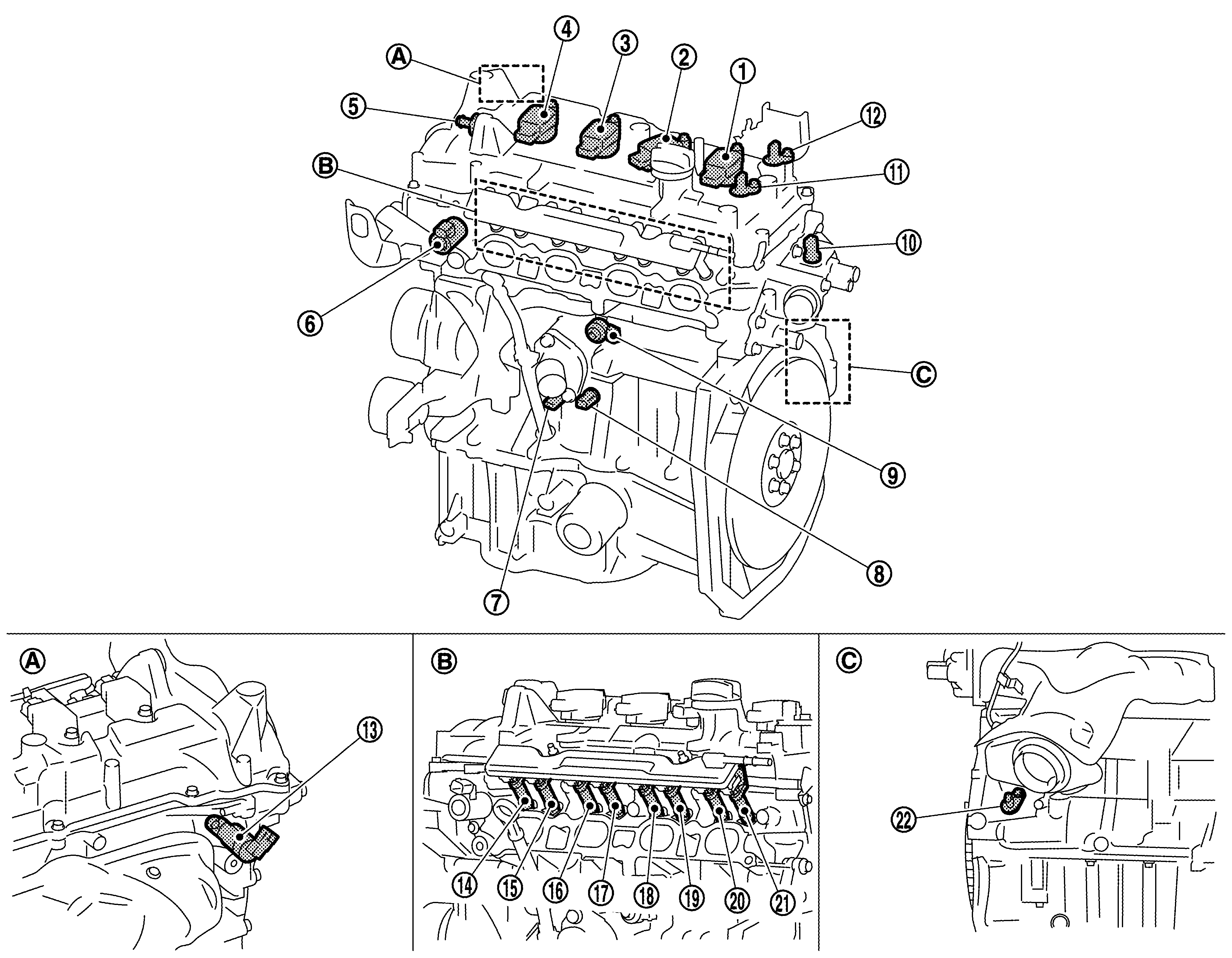

1. |
Ignition coil No. 4 (with power transistor) |
2. |
Ignition coil No. 3 (with power transistor) |
3. |
Ignition coil No. 2 (with power transistor) |
|
4. |
Ignition coil No. 1 (with power transistor) |
5. |
PCV valve |
6. |
Intake valve timing control solenoid valve |
|
7. |
Engine oil pressure sensor |
8. |
Engine oil temperature sensor |
9. |
Knock sensor |
|
10. |
Engine coolant temperature sensor |
11. |
Camshaft position sensor |
12. |
Exhaust valve timing control position sensor |
|
13. |
Exhaust valve timing control solenoid valve |
14. |
Fuel injector No. 1 (Front) |
15. |
Fuel injector No. 1 (Rear) |
|
16. |
Fuel injector No. 2 (Front) |
17. |
Fuel injector No. 2 (Rear) |
18. |
Fuel injector No. 3 (Front) |
|
19. |
Fuel injector No. 3 (Rear) |
20. |
Fuel injector No. 4 (Front) |
21. |
Fuel injector No. 4 (Rear) |
|
22. |
Crankshaft position sensor |
||||
|
A. |
Engine front right side |
B. |
Left view of the engine |
C. |
Engine rear right side |
|

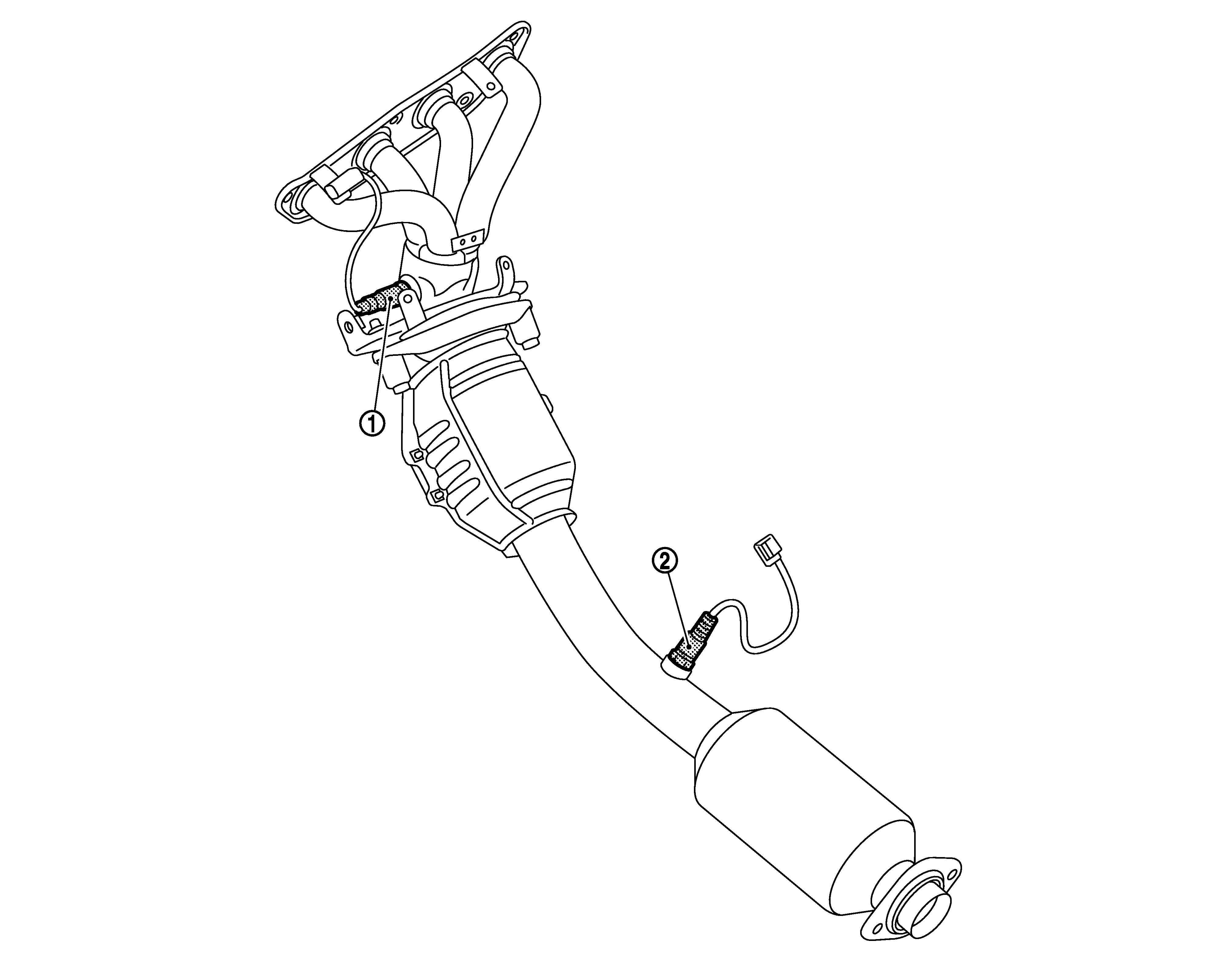

1. |
A/F sensor 1 |
2. |
Heated oxygen sensor 2 |
|

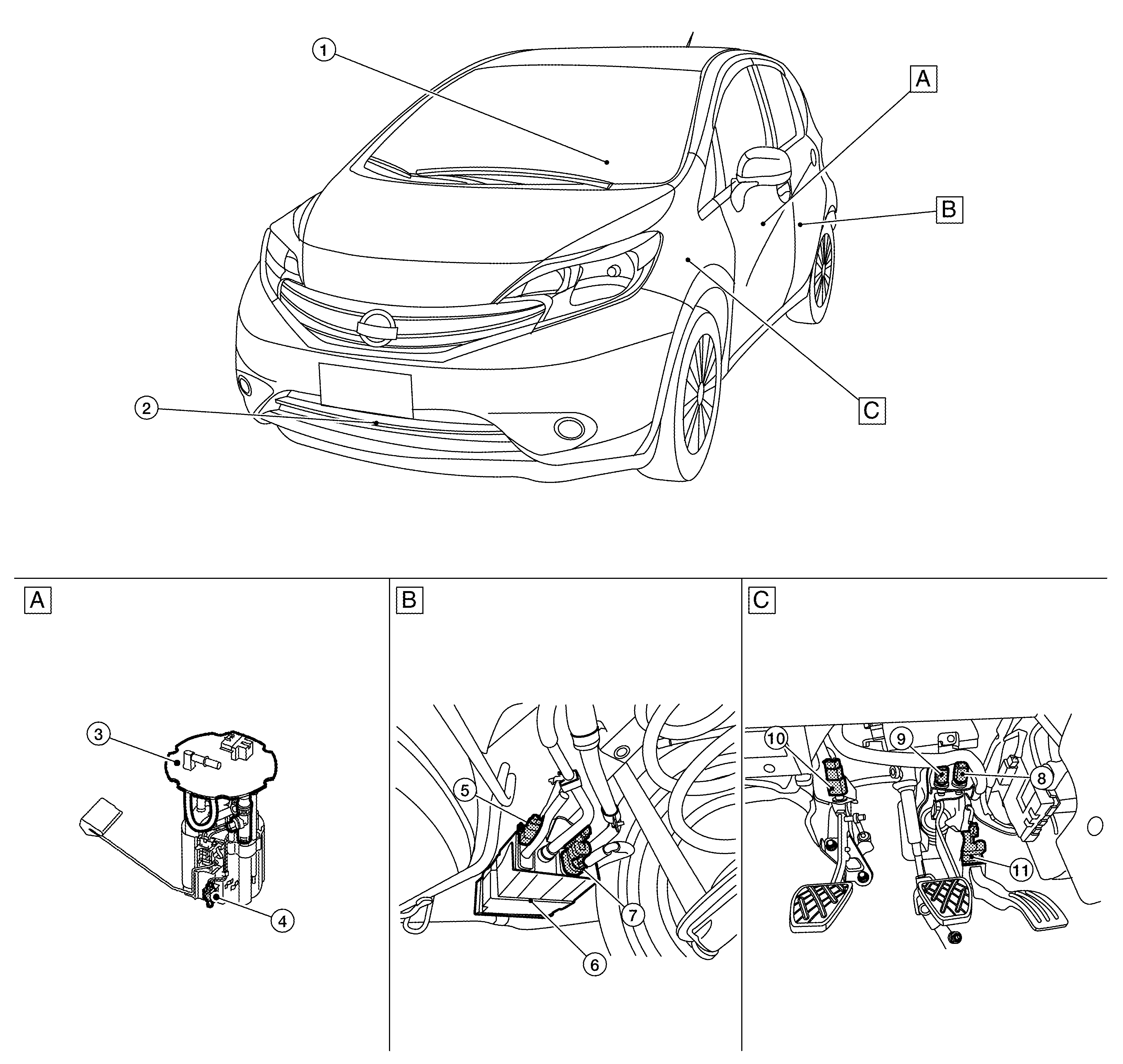

1. |
ASCD steering switch |
2. |
Active grille shutter |
3. |
Fuel level sensor unit and fuel pump |
|
4. |
Fuel tank temperature sensor |
5. |
EVAP control system pressure sensor |
6. |
EVAP canister |
|
7. |
EVAP canister vent control valve |
8. |
ASCD brake switch |
9. |
Stop lamp switch |
|
10. |
Clutch pedal position switch |
11. |
Accelerator pedal position sensor |
||
|
A. |
Fuel tank |
B. |
Rear under body |
C. |
Periphery of pedals |
