2019 Nissan-Datsun Versa Note SFACTORY OEM SERVICE PROCEDURE

Physical Values

NOTE:

Connect a break-out box and harness adapter between the ECM and ECM harness connector.
- Use extreme care not to touch 2 pins at one time.
- Data is for comparison and may not be exact.
Specification data are reference values and are measured between each terminals.
Pulse signal is measured by CONSULT.

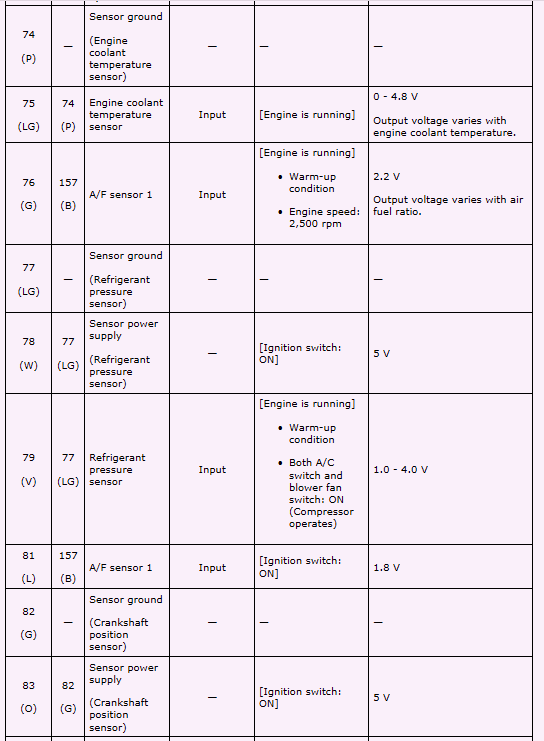

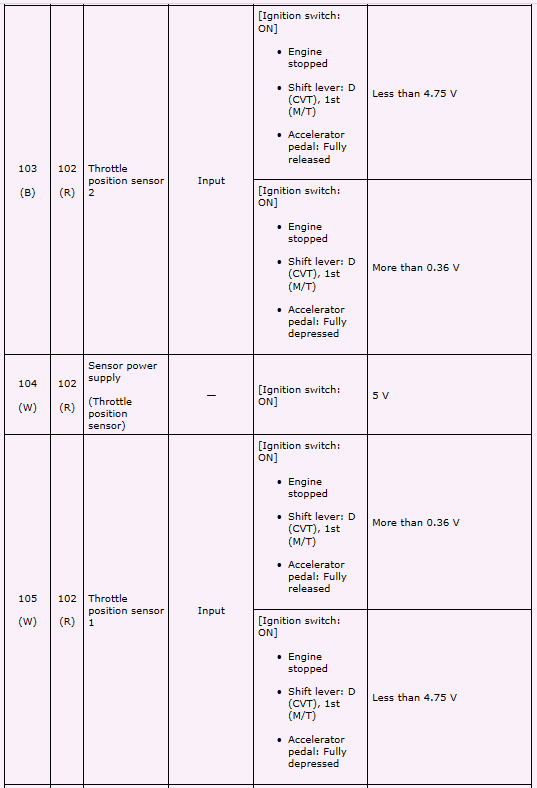

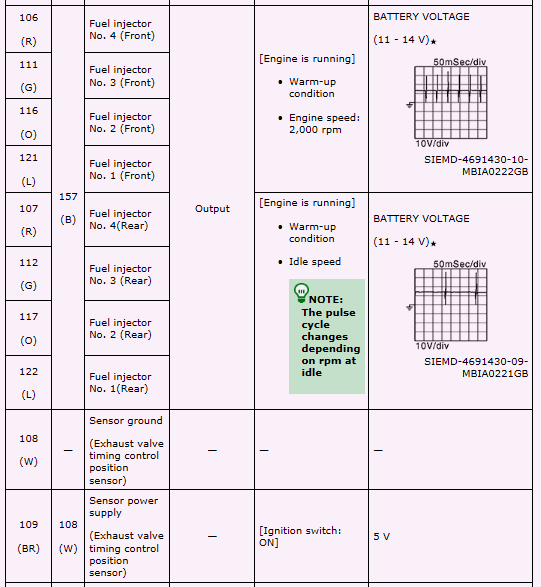

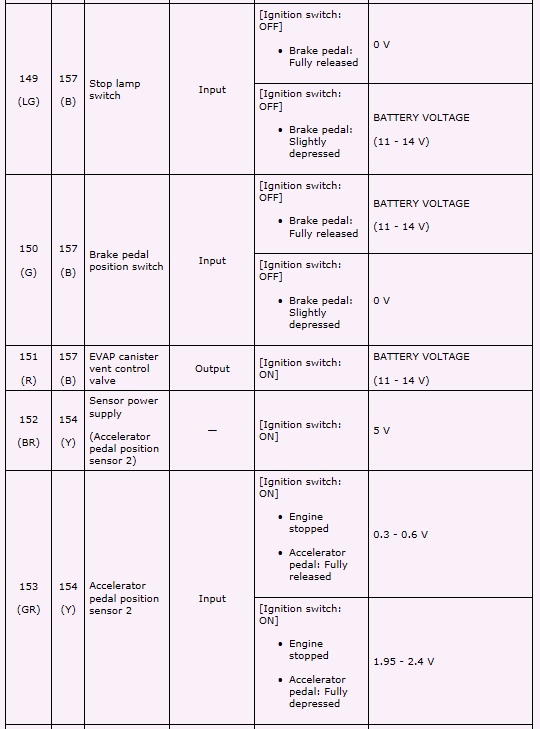

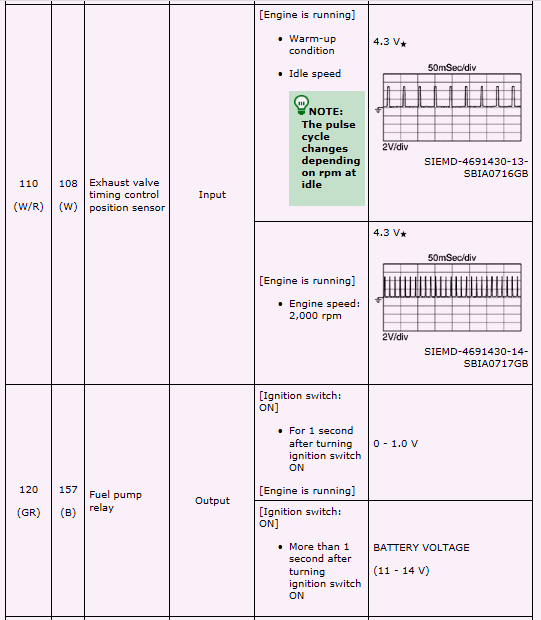

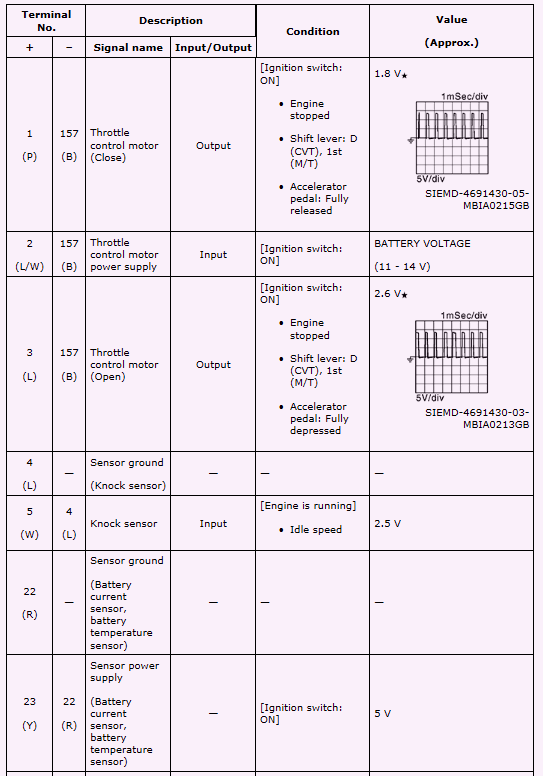

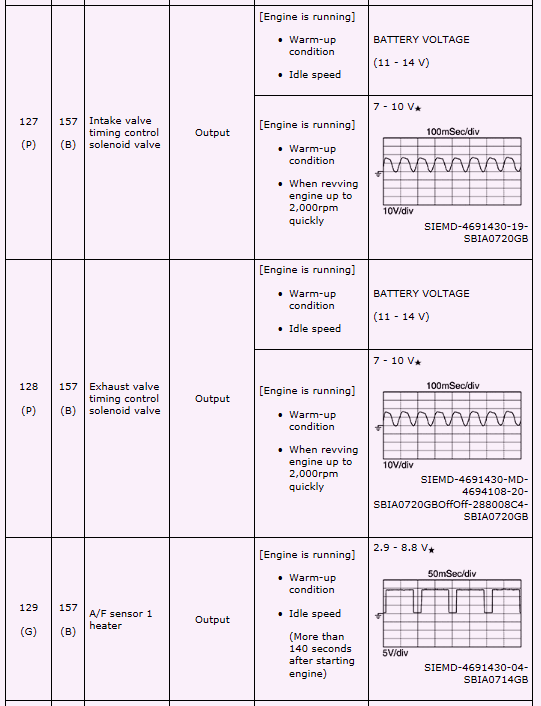

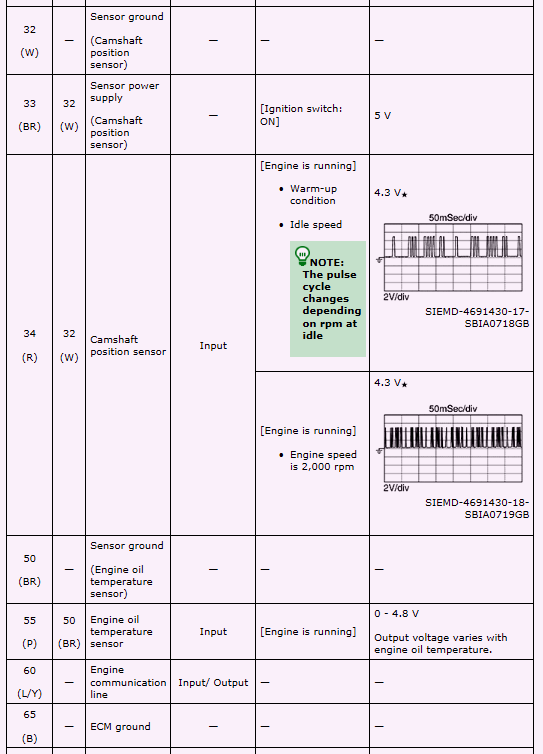

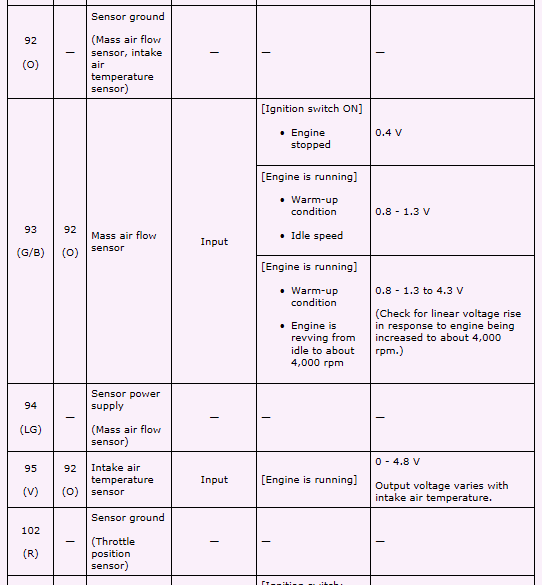

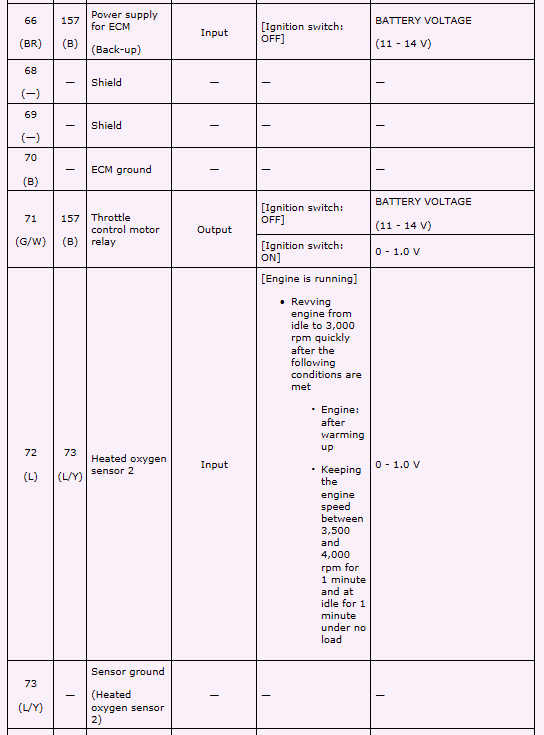

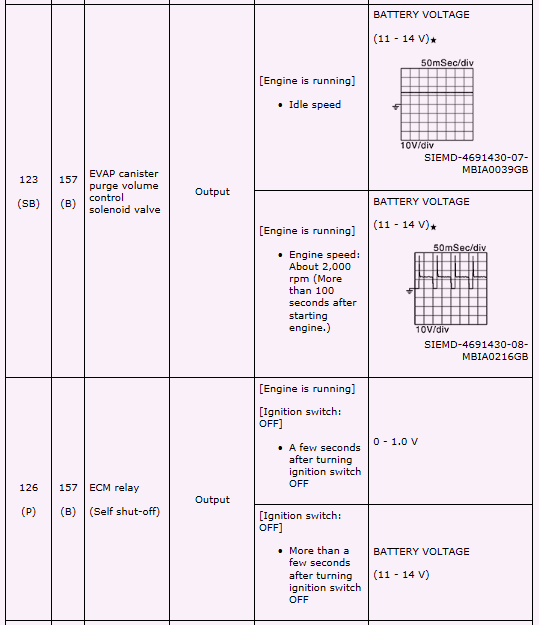

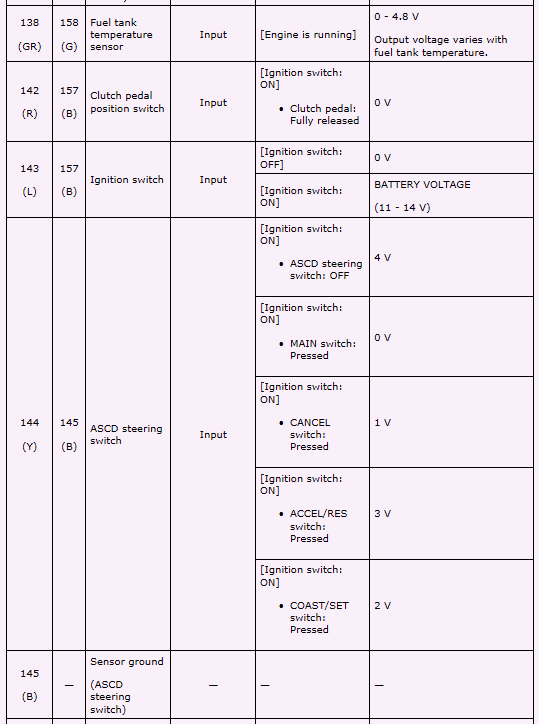

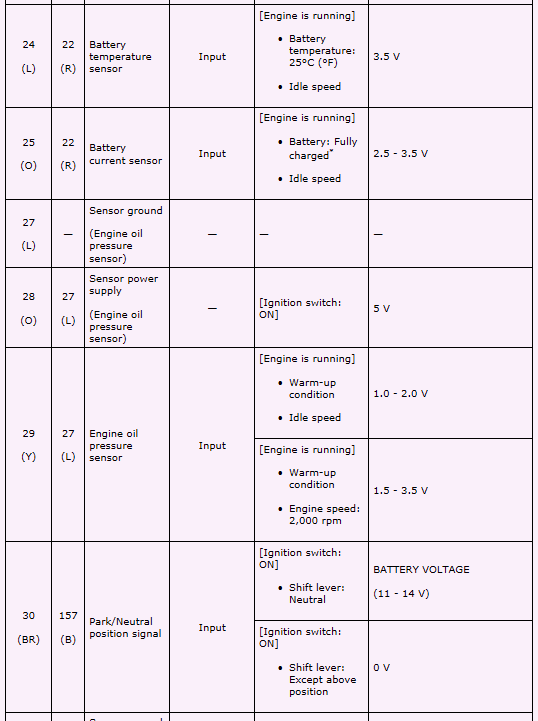

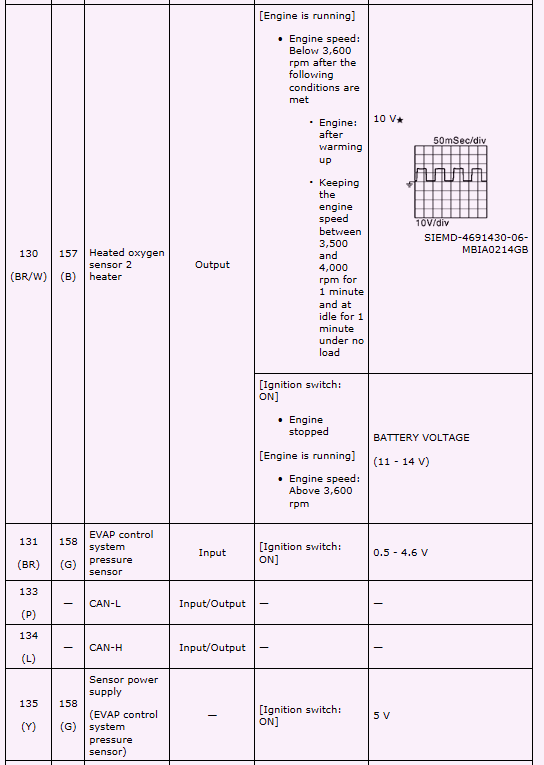

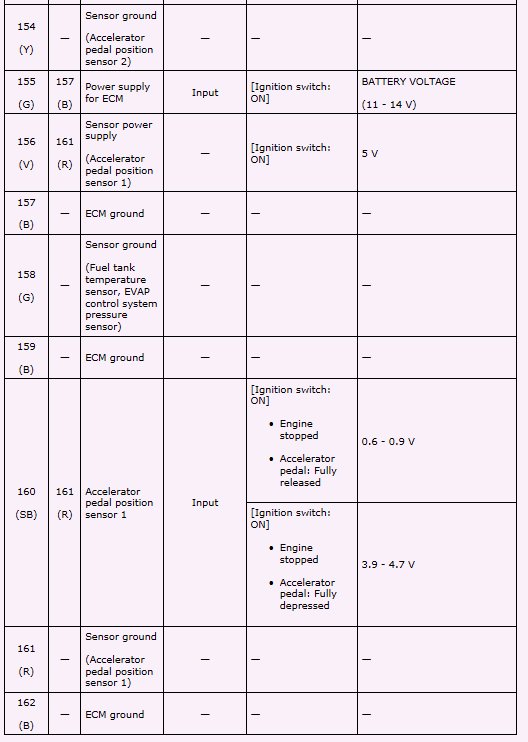

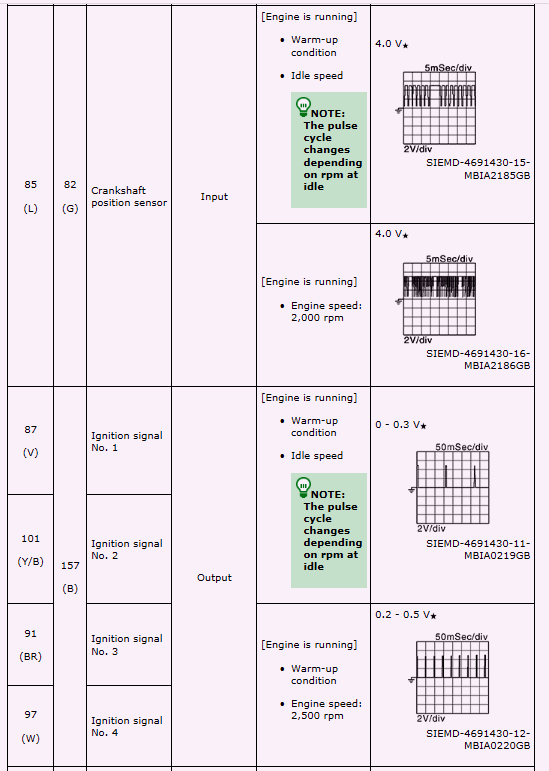

G00587065

Courtesy of NISSAN NORTH AMERICA, INC.

G00587066

Courtesy of NISSAN NORTH AMERICA, INC.

G00587067

Courtesy of NISSAN NORTH AMERICA, INC.

G00587068

Courtesy of NISSAN NORTH AMERICA, INC.

G00587069

Courtesy of NISSAN NORTH AMERICA, INC.

G00587070

Courtesy of NISSAN NORTH AMERICA, INC.

G00587071

Courtesy of NISSAN NORTH AMERICA, INC.

G00587072

Courtesy of NISSAN NORTH AMERICA, INC.

G00587073

Courtesy of NISSAN NORTH AMERICA, INC.

G00587074

Courtesy of NISSAN NORTH AMERICA, INC.

G00587075

Courtesy of NISSAN NORTH AMERICA, INC.

G00587076

Courtesy of NISSAN NORTH AMERICA, INC.

G00587077

Courtesy of NISSAN NORTH AMERICA, INC.

G00587078

Courtesy of NISSAN NORTH AMERICA, INC.

G00587079

Courtesy of NISSAN NORTH AMERICA, INC.

G00587080

Courtesy of NISSAN NORTH AMERICA, INC.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to Work Flow .
