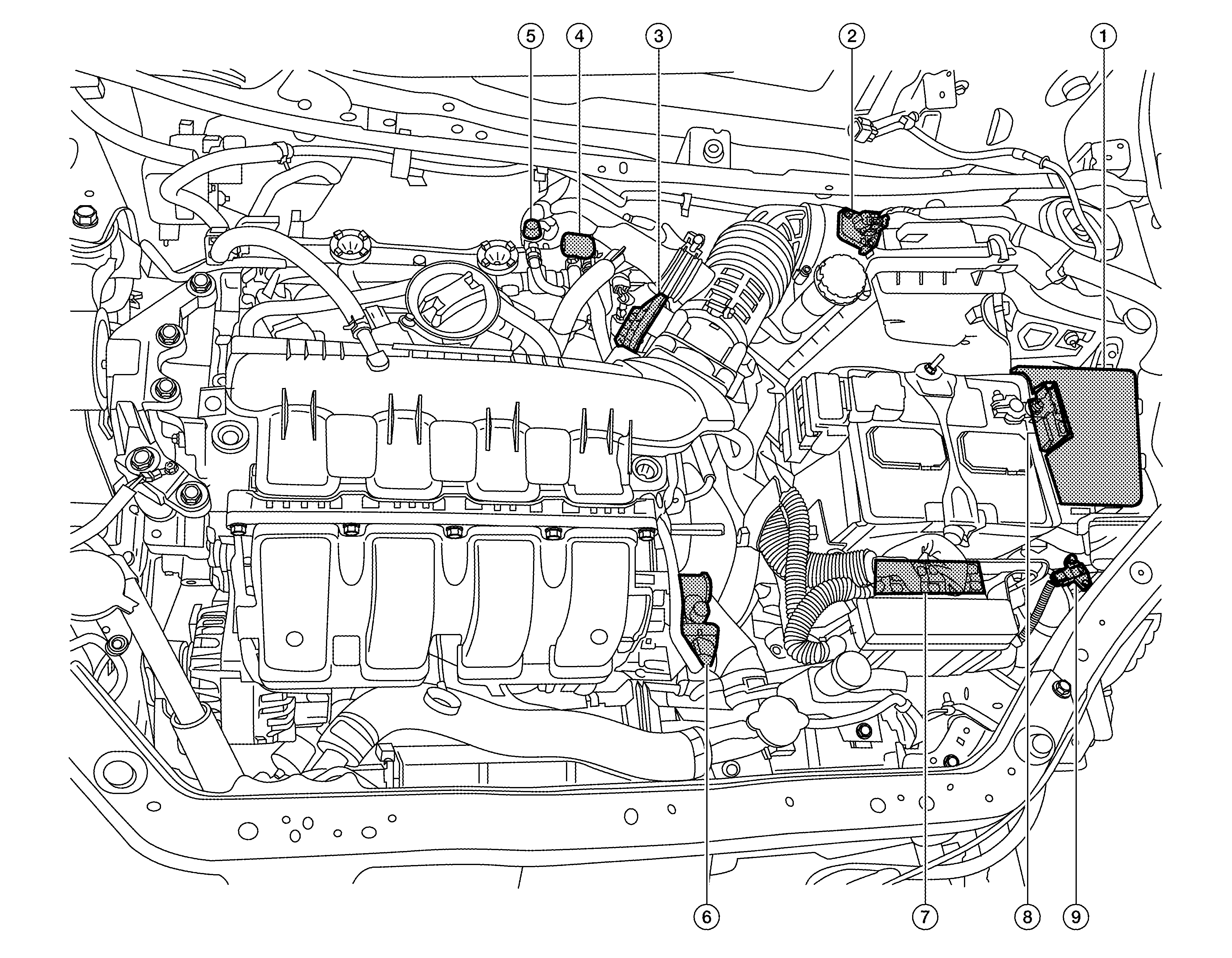

Engine Room Compartment
|
No. |
Component |
Function |
|
|
IPDM E/R |
IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. With Intelligent Key System Without Intelligent Key System |
|
|
Mass air flow sensor (with intake air temperature sensor) |
|
|
|
Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
|
|
|
EVAP canister purge volume control solenoid valve |
|
|
|
EVAP service port |
EVAP service port is prepared in order to perform evaporative emission system leak check. |
|
|
|
|
|
|
ECM |
|
|
|
Battery current sensor (with battery temperature sensor) |
|
|
|
Barometric pressure sensor |
*: CVT models
