2017 Nissan-Datsun Versa Note SRFACTORY OEM SERVICE PROCEDURE
Disassembly And Assembly: Disassembly

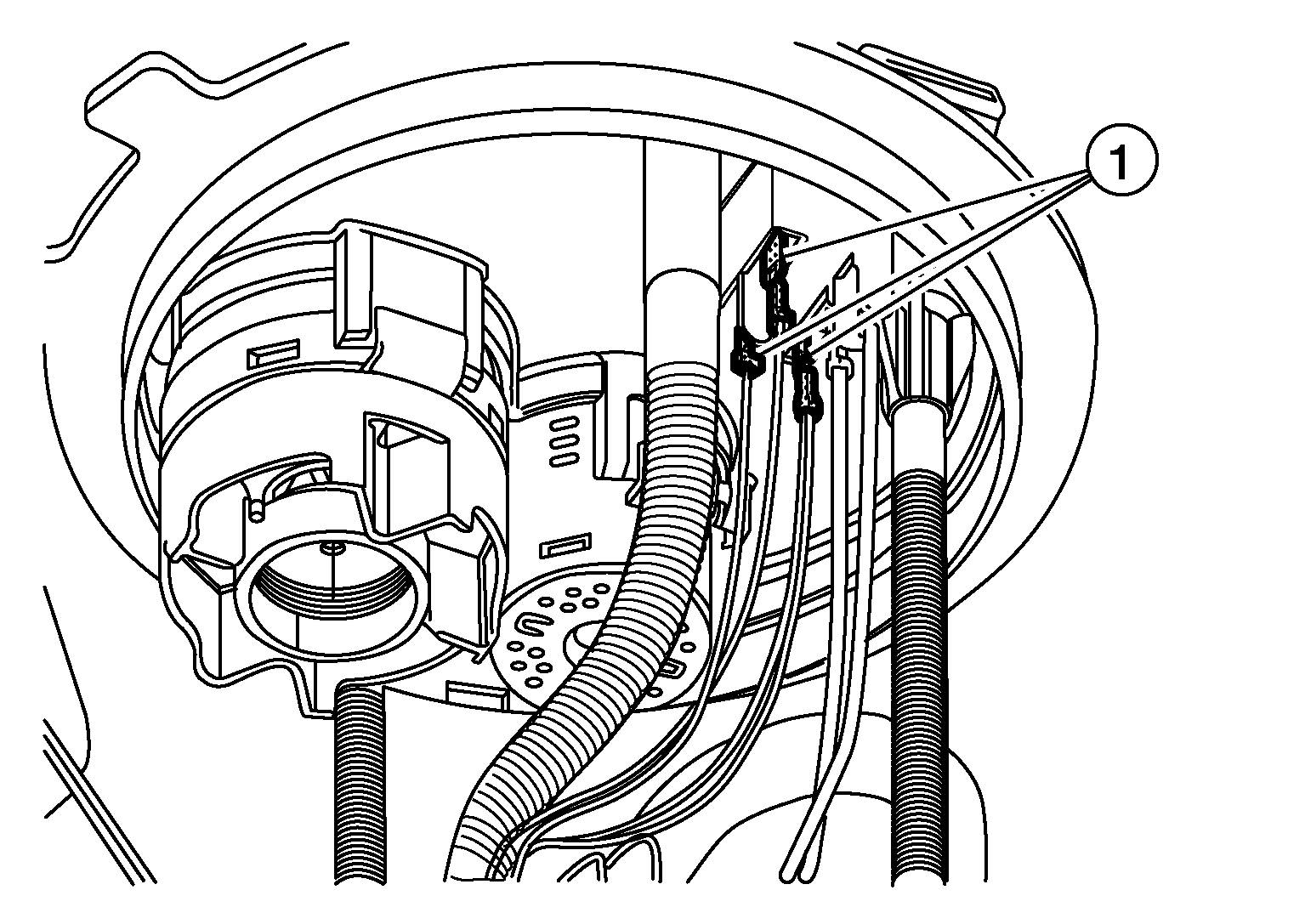

- Disconnect fuel level sensor unit/fuel tank temperature sensor harness connectors (1).NOTE:
Hold connector with your fingers, because there is no tab for releasing stopper. Pull it out straight downward.

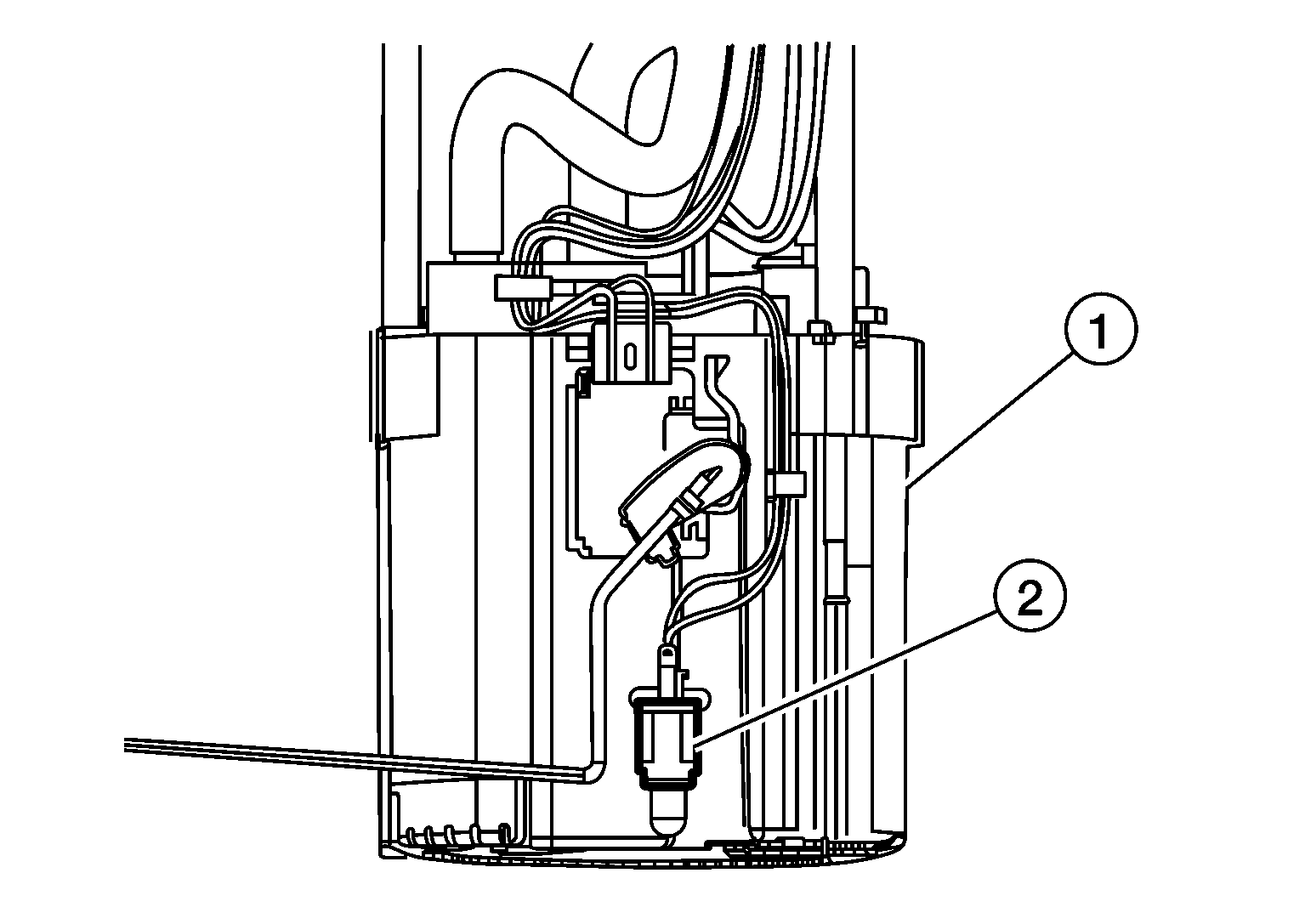

- Remove fuel tank temperature sensor (2) from fuel filter and fuel pump assembly (1).

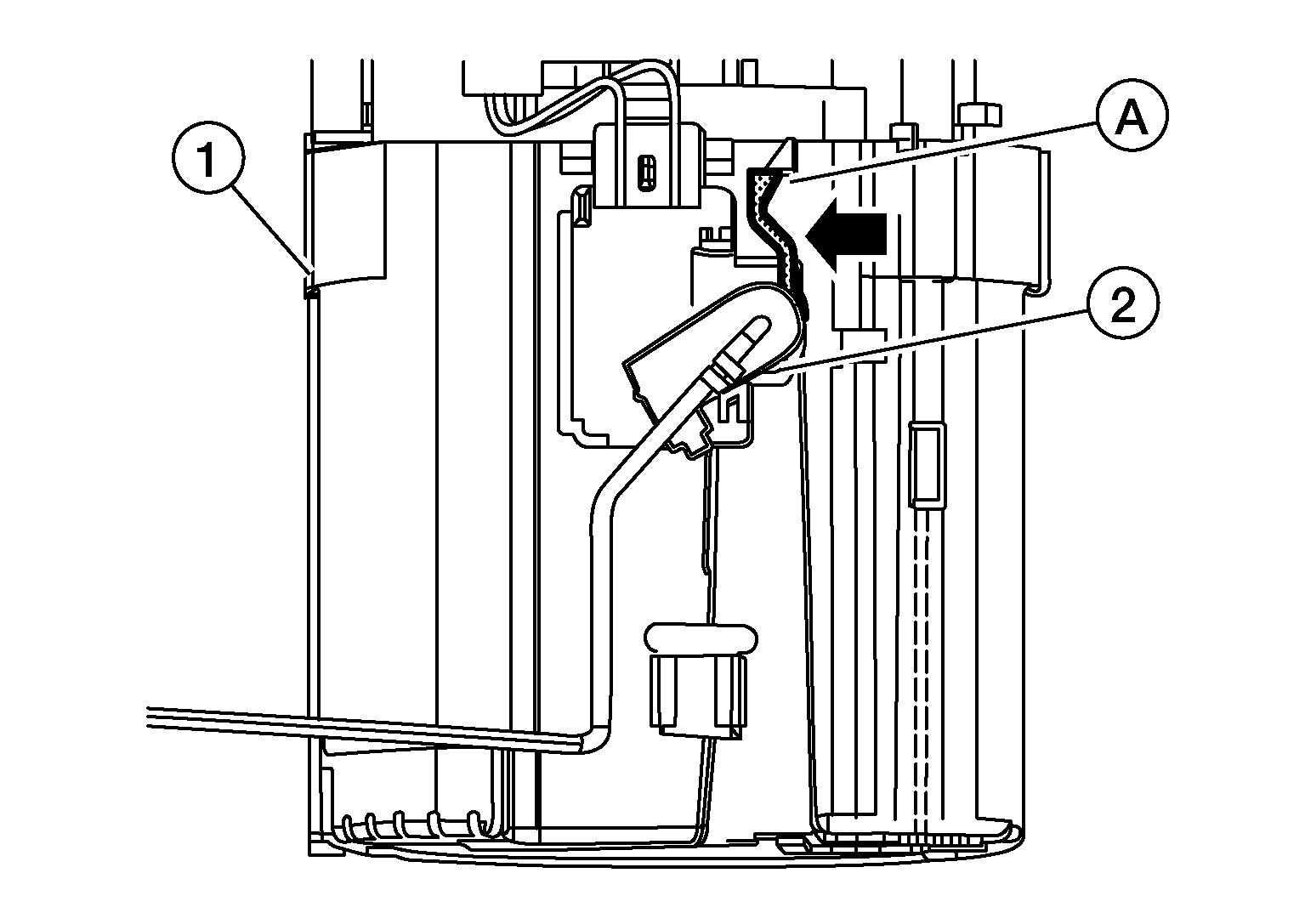

- Using a suitable tool push tab (A) in the direction (
) shown and remove fuel level sensor unit (2) from fuel filter and fuel pump assembly (1).
CAUTION:- Be careful not to damage the fuel level sensor unit.
- Do not disassemble fuel filter and fuel pump assembly.
