2017 Nissan-Datsun Versa Note SLFACTORY OEM SERVICE PROCEDURE

Exploded View

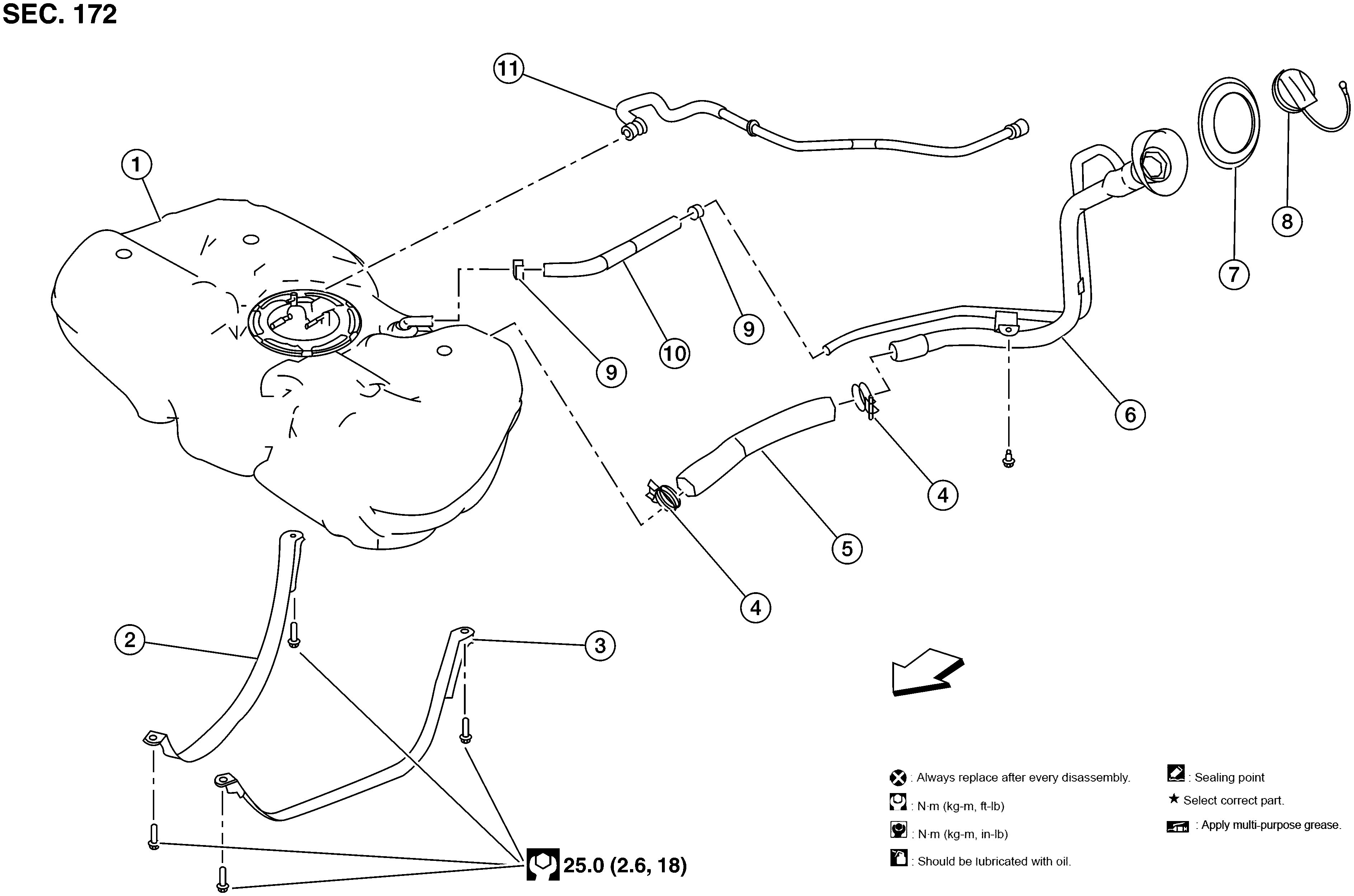

Fig 1: Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel tank	2.	Fuel tank mounting band (RH)	3.	Fuel tank mounting band (LH)
4.	Clamp	5.	Fuel filler hose	6.	Fuel filler tube
7.	Grommet	8.	Fuel filler cap	9.	Clamp
10.	Vent hose	11.	EVAP tube		Front
