2017 Nissan-Datsun Versa Note S PlusFACTORY OEM SERVICE PROCEDURE
Component Parts Location

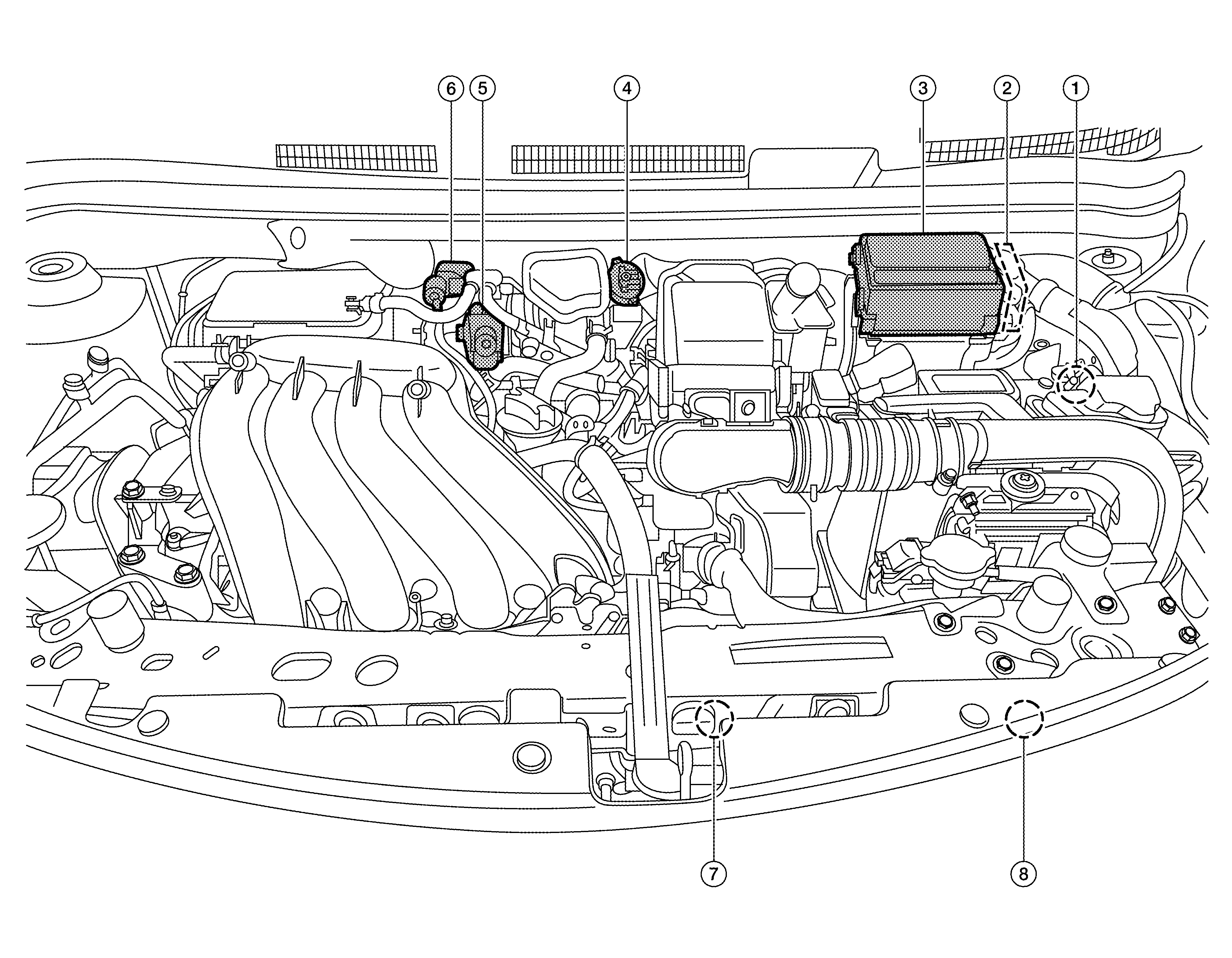

| 1. | Battery current sensor | 2. | ECM | 3. | IPDM E/R Refer to COMPONENT PARTS LOCATION |
| 4. | Mass air flow sensor (with intake air temperature sensor) |
5. | Electric throttle control actuator (with built in throttle position sensor and throttle control motor) |
6. | EVAP canister purge volume control solenoid valve |
| 7. | Cooling fan motor | 8. | Refrigerant pressure sensor Refer to COMPONENT PARTS LOCATION |

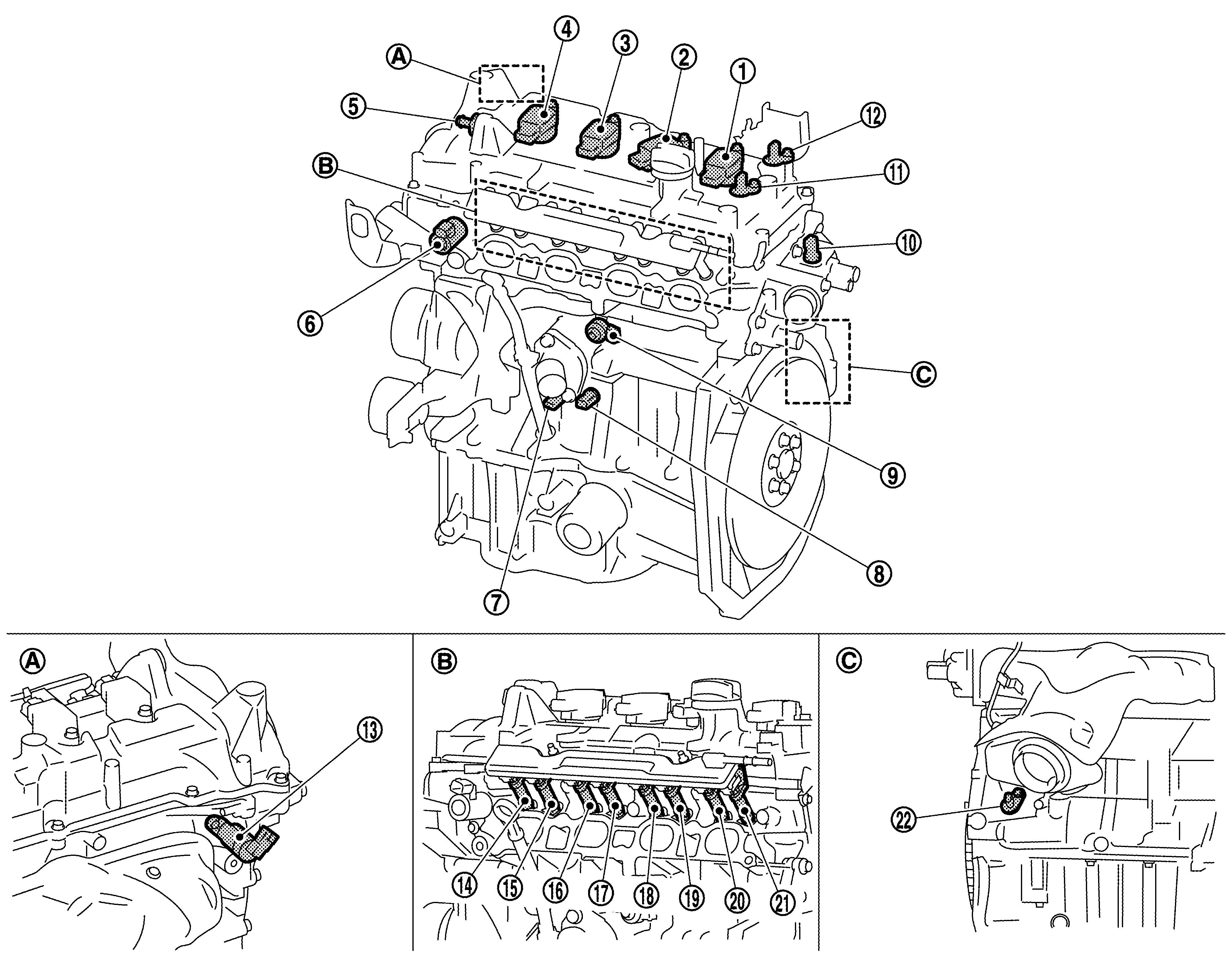

| 1. | Ignition coil No. 4 (with power transistor) |
2. | Ignition coil No. 3 (with power transistor) |
3. | Ignition coil No. 2 (with power transistor) |
| 4. | Ignition coil No. 1 (with power transistor) |
5. | PCV valve | 6. | Intake valve timing control solenoid valve |
| 7. | Engine oil pressure sensor | 8. | Engine oil temperature sensor | 9. | Knock sensor |
| 10. | Engine coolant temperature sensor | 11. | Camshaft position sensor | 12. | Exhaust valve timing control position sensor |
| 13. | Exhaust valve timing control solenoid valve | 14. | Fuel injector No. 1 (Front) | 15. | Fuel injector No. 1 (Rear) |
| 16. | Fuel injector No. 2 (Front) | 17. | Fuel injector No. 2 (Rear) | 18. | Fuel injector No. 3 (Front) |
| 19. | Fuel injector No. 3 (Rear) | 20. | Fuel injector No. 4 (Front) | 21. | Fuel injector No. 4 (Rear) |
| 22. | Crankshaft position sensor | ||||
| A. | Engine front right side | B. | Left view of the engine | C. | Engine rear right side |

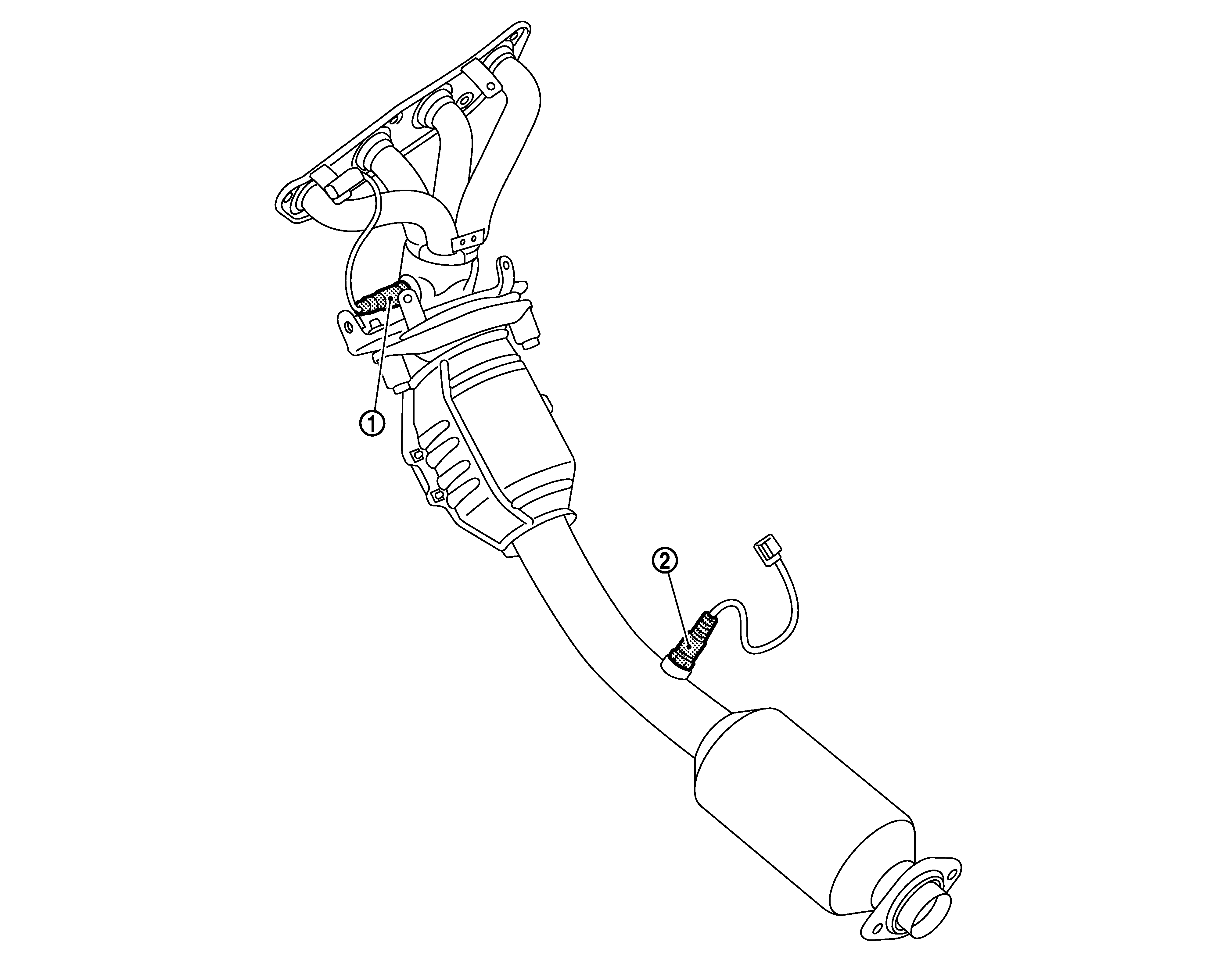

| 1. | A/F sensor 1 | 2. | Heated oxygen sensor 2 |

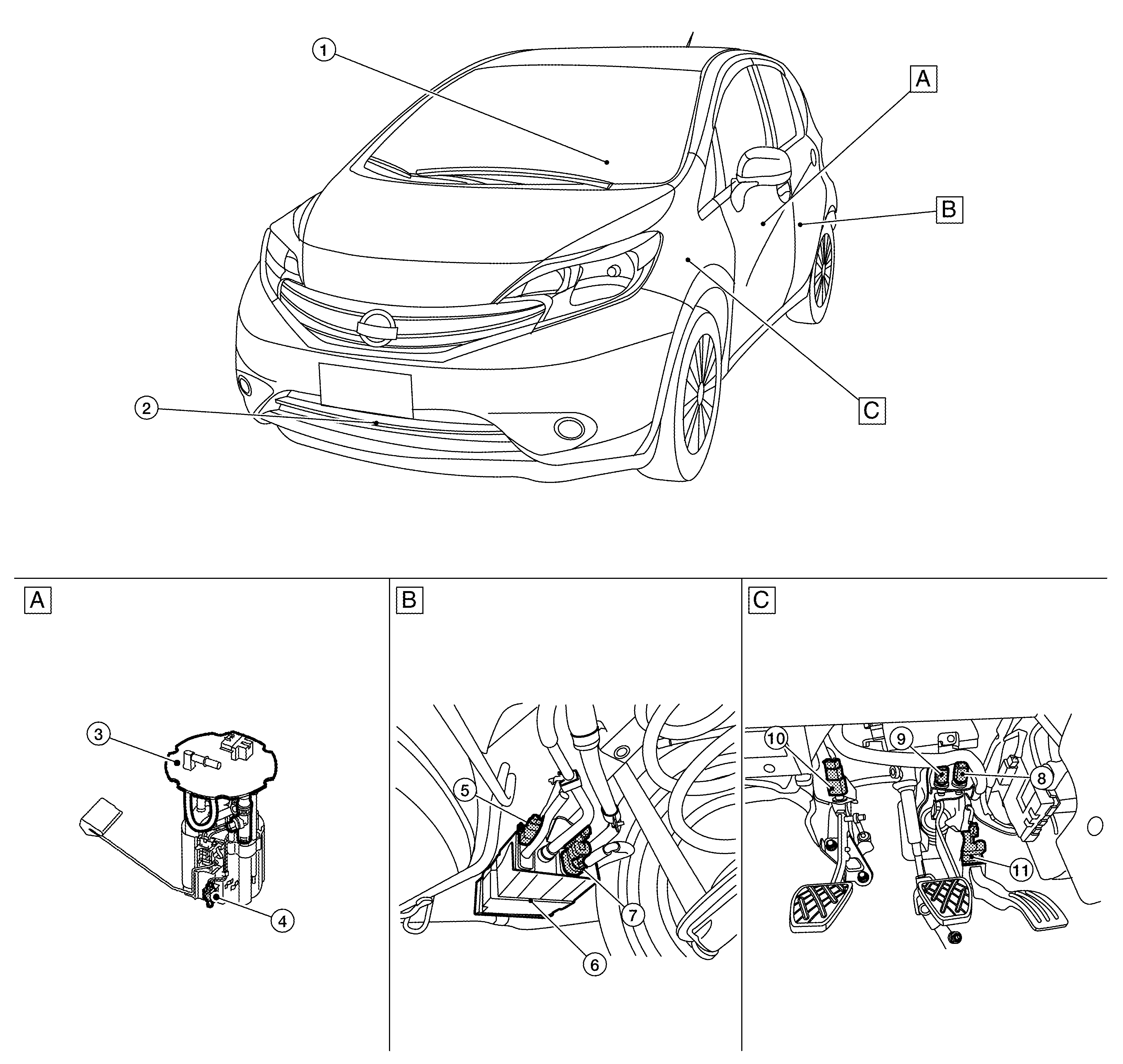

| 1. | ASCD steering switch | 2. | Active grille shutter | 3. | Fuel level sensor unit and fuel pump |
| 4. | Fuel tank temperature sensor | 5. | EVAP control system pressure sensor | 6. | EVAP canister |
| 7. | EVAP canister vent control valve | 8. | ASCD brake switch | 9. | Stop lamp switch |
| 10. | Clutch pedal position switch | 11. | Accelerator pedal position sensor | ||
| A. | Fuel tank | B. | Rear under body | C. | Periphery of pedals |
