2017 Nissan-Datsun Versa Note S PlusFACTORY OEM SERVICE PROCEDURE
Commercial Service Tools
| Tool name (TechMate No.) |
 | Description |
|---|---|---|
| Leak detector i.e.: (J-41416) |
Locates the EVAP leak | |
| EVAP service port adapter i.e.: (J-41413-OBD) |
Applies positive pressure through EVAP service port | |

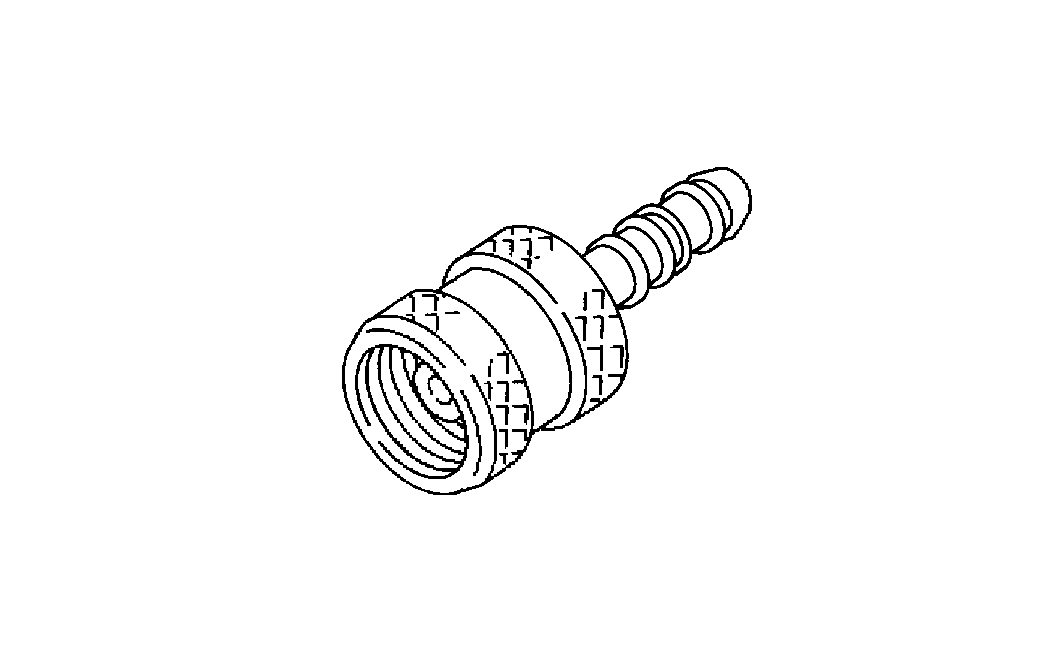

| Fuel filler cap adapter i.e.: (J-42909) |
Checks fuel tank vacuum relief valve opening pressure | |

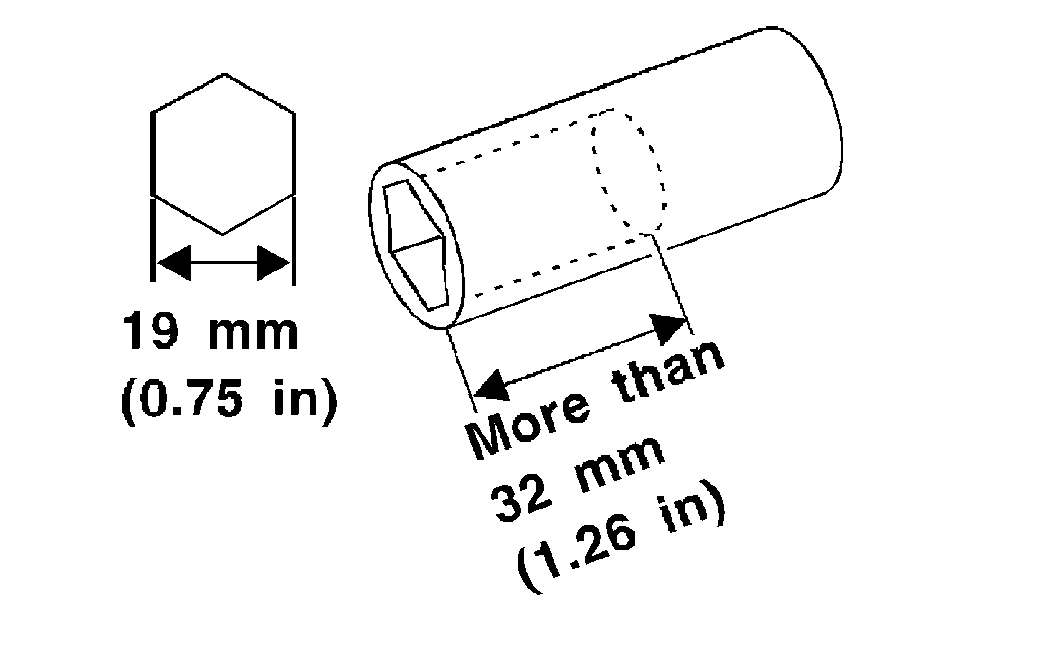

| Socket wrench (-) |
Removes and installs engine coolant temperature sensor | |

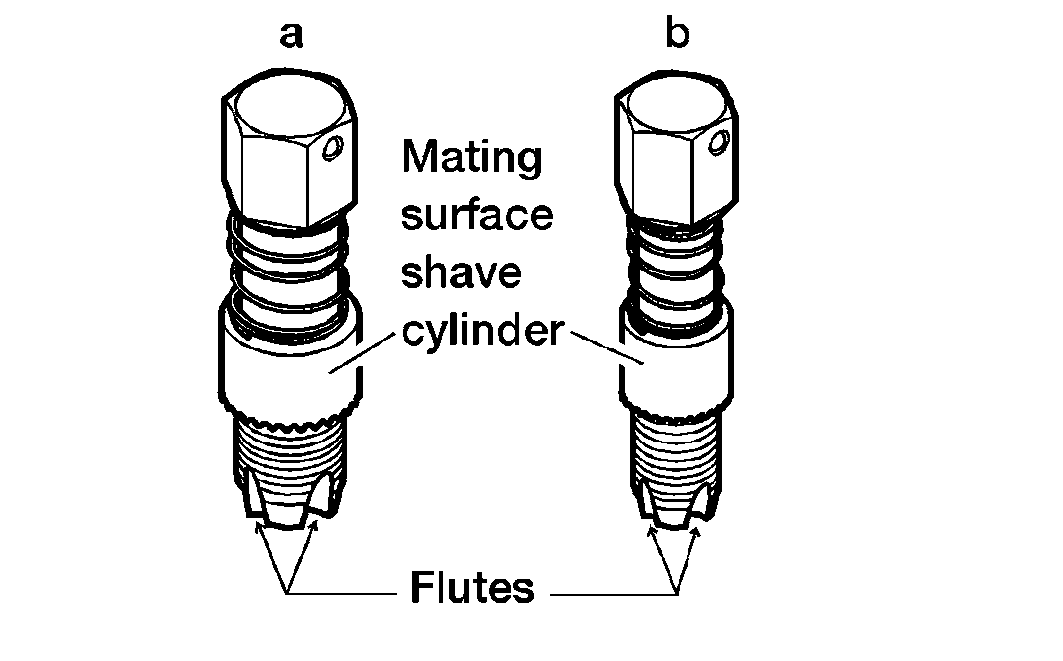

| Oxygen sensor thread cleaner i.e.: (J-43897-18), (J-43897-12) |
Reconditioning the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor |
|

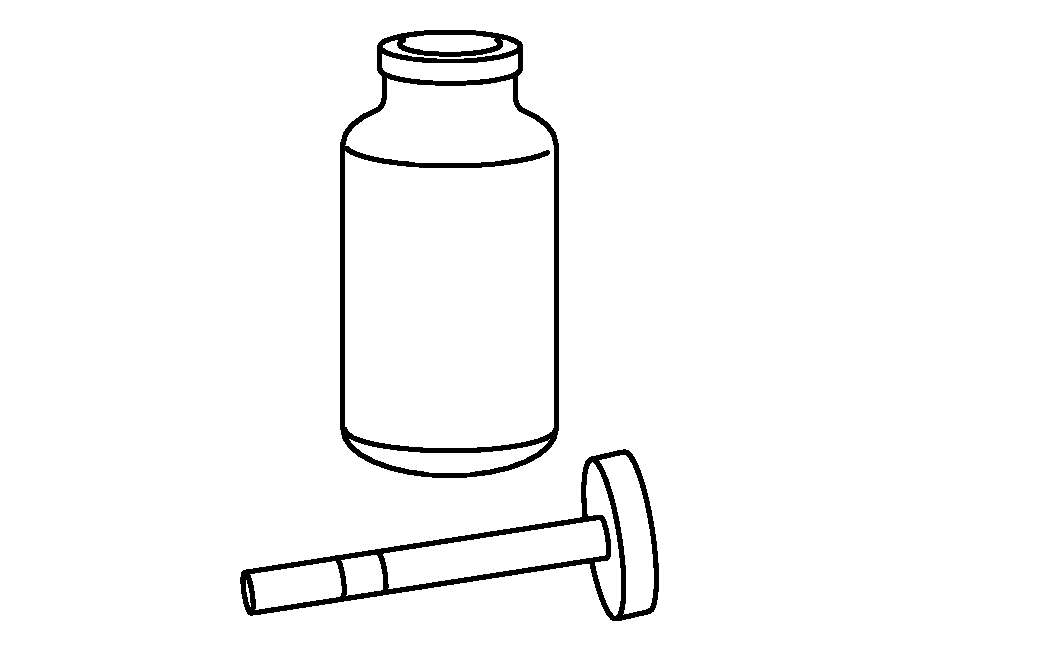

| Anti-seize lubricant i.e.: (PermatexTM 133AR or equivalent meeting MIL specification MIL-A-907) |
Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads. |
