Courtesy of NISSAN NORTH AMERICA, INC.

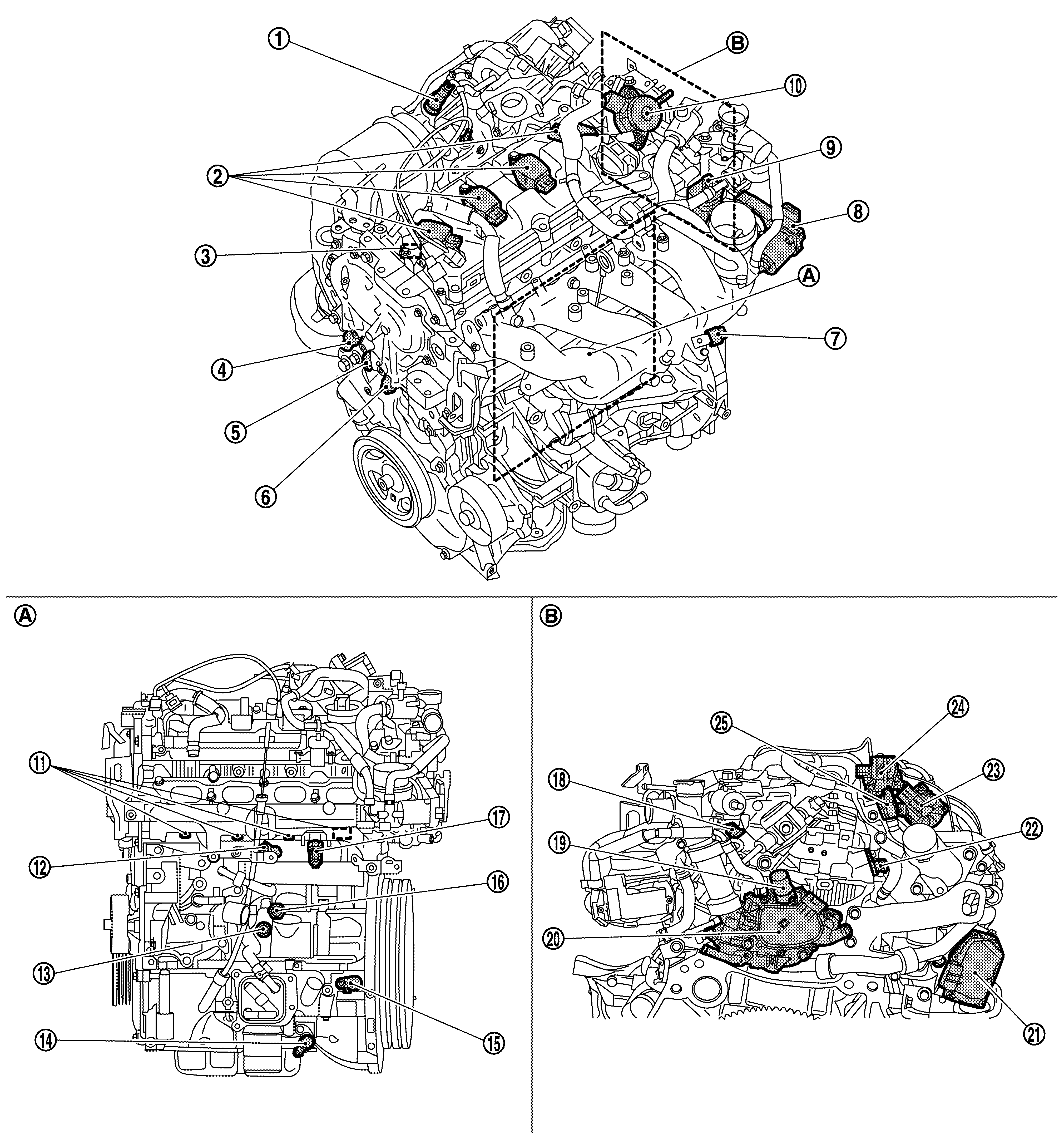

1.	Air fuel ratio (A/F) sensor 1	2.	Ignition coil (with power transistor)	3.	PCV valve
4.	Exhaust valve timing control solenoid valve	5.	Intake valve timing intermediate lock control solenoid valve	6.	Intake valve timing control solenoid valve
7.	Manifold absolute pressure sensor	8.	Electric throttle control actuator	9.	Intake manifold runner control valve
10.	High pressure fuel pump	11.	Fuel injector	12.	Knock sensor
13.	Engine oil temperature sensor	14.	Engine oil pressure control solenoid valve	15.	Crankshaft position sensor
16.	Engine oil pressure sensor	17.	Fuel rail pressure sensor	18.	Camshaft position sensor
19.	Engine coolant temperature sensor	20.	Multi - way control valve	21.	EGR volume control valve
22.	Exhaust valve timing control position sensor	23.	Electric wastegate control actuator	24.	Turbocharger bypass control valve
25.	EGR pressure sensor
A.	Cylinder block left side	B.	Engine rear end
