2016 Nissan-Datsun Versa Note SVFACTORY OEM SERVICE PROCEDURE

Accelerator Control

Unit: mm (in)

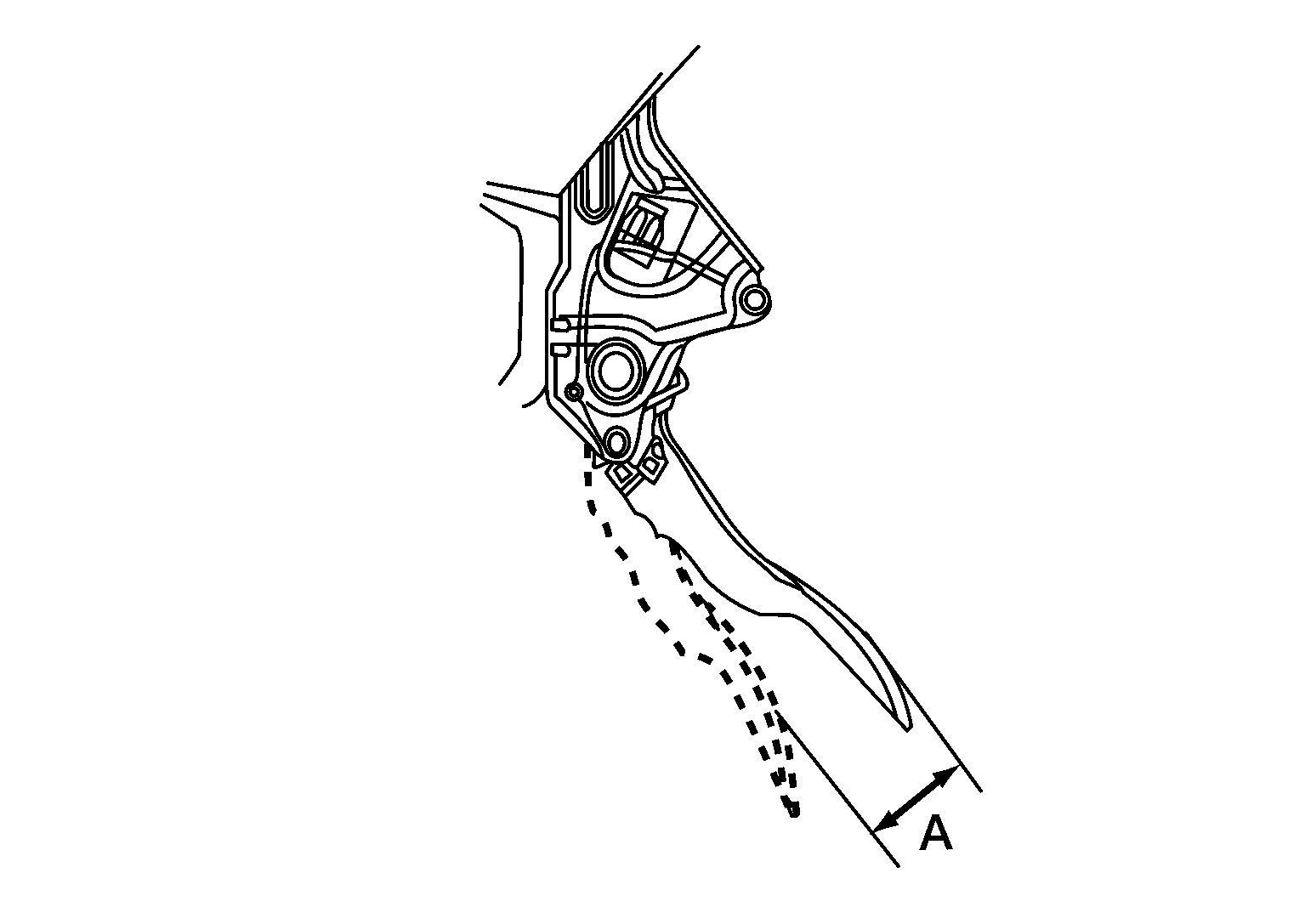

G09617854Courtesy of NISSAN NORTH AMERICA, INC.
Accelerator pedal stroke (A) 49.8 - 52.6 (1.96 - 2.07)
Accelerator pedal height 113.0 - 123.0 (4.45 - 4.84)
