2016 Nissan-Datsun Sentra SLFACTORY OEM SERVICE PROCEDURE

Component Location

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

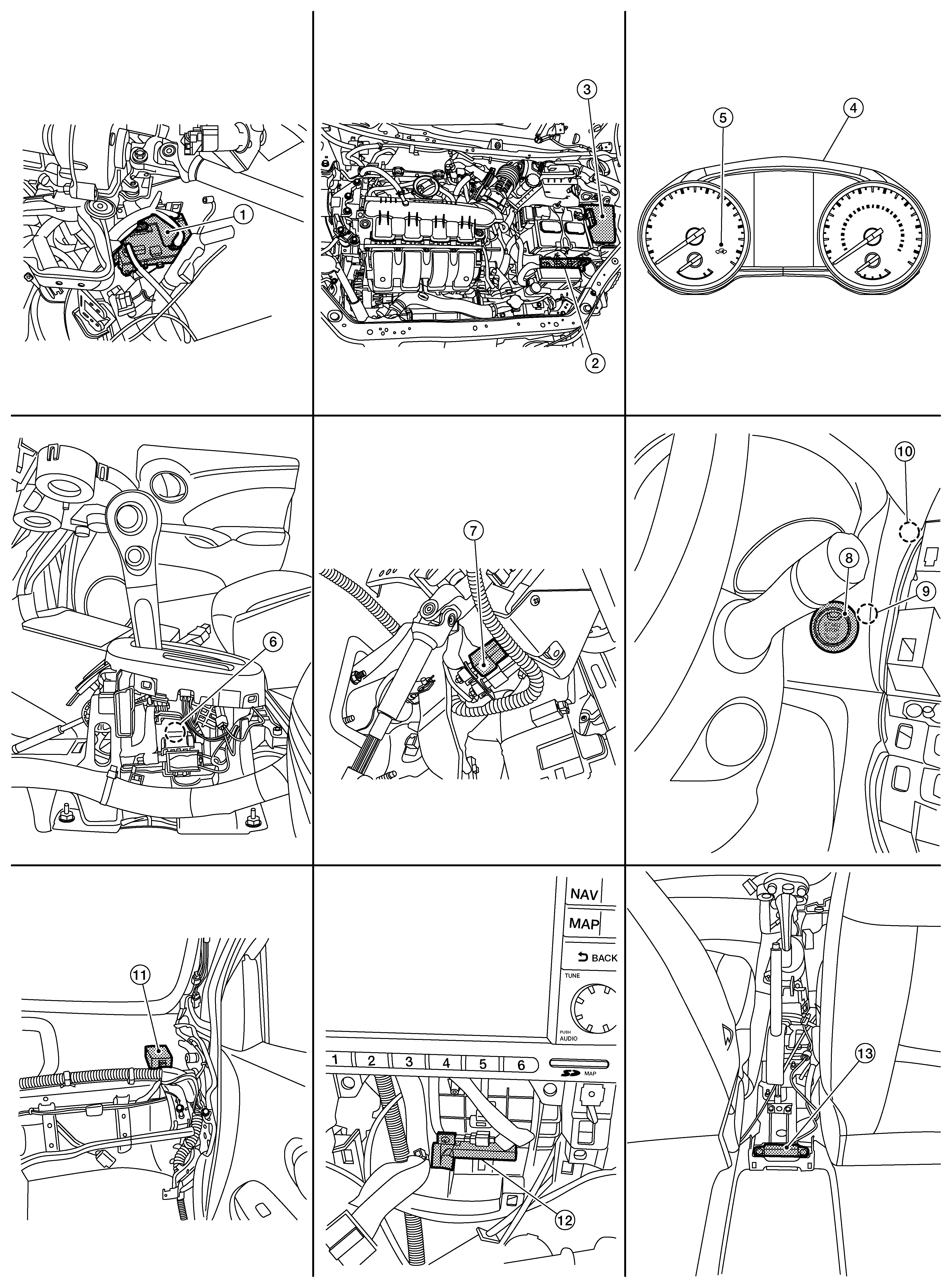

GNSAWKIA3838ZZ-838Courtesy of NISSAN NORTH AMERICA, INC.
GNSAWKIA2889ZZ-889Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with instrument panel removed) 2. ECM 3. IPDM E/R
4. Combination meter 5. Security indicator lamp 6. CVT shift selector (park position switch) (view with center console removed)
7. Stop lamp switch 8. Push-button ignition switch 9. NATS antenna amp.
10. Dongle unit (Canada only) 11. Remote keyless entry receiver (view with instrument panel removed) 12. Inside key antenna (instrument center)
13. Inside key antenna (console) (view with center console removed) 14. Inside key antenna (trunk room) 15. Front door switch RH
16. Outside key antenna (passenger side) 17. Front door switch LH 18. Outside key antenna (driver side)
19. Rear door switch RH 20. Rear door switch LH 21. Transmission range switch (CVT)
22. Outside key antenna (rear bumper) 23. Clutch interlock switch (M/T) 24. Park/neutral position (PNP) switch (neutral switch) (M/T)
