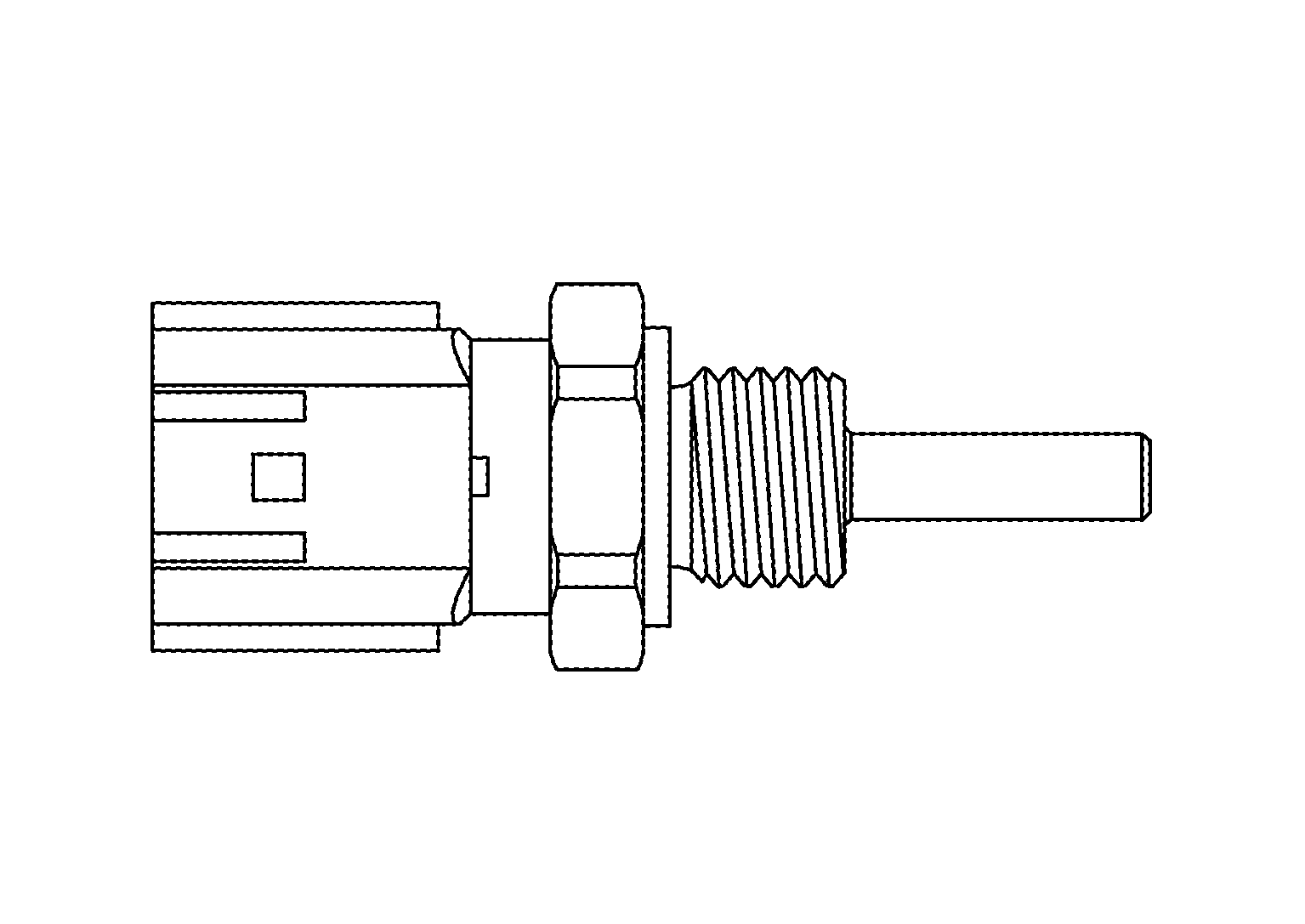

Engine Oil Temperature Sensor
The engine oil temperature sensor is used to detect the engine oil temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine oil temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.
<Reference data>Β
| Engine oil temperature [Β°C (Β°F)] |
Voltage* (V) | Resistance (kΞ©) |
|---|---|---|
| -10 (14) | 4.4 | 7.0 - 11.4 |
| 20 (68) | 3.5 | 2.37 - 2.63 |
| 50 (122) | 2.2 | 0.68 - 1.00 |
| 90 (194) | 0.9 | 0.236 - 0.260 |
| 110 (230) | 0.6 | 0.143 - 0.153 |
* : These data are reference values and are measured between ECM terminals.
