2015 Nissan-Datsun Sentra SRFACTORY OEM SERVICE PROCEDURE

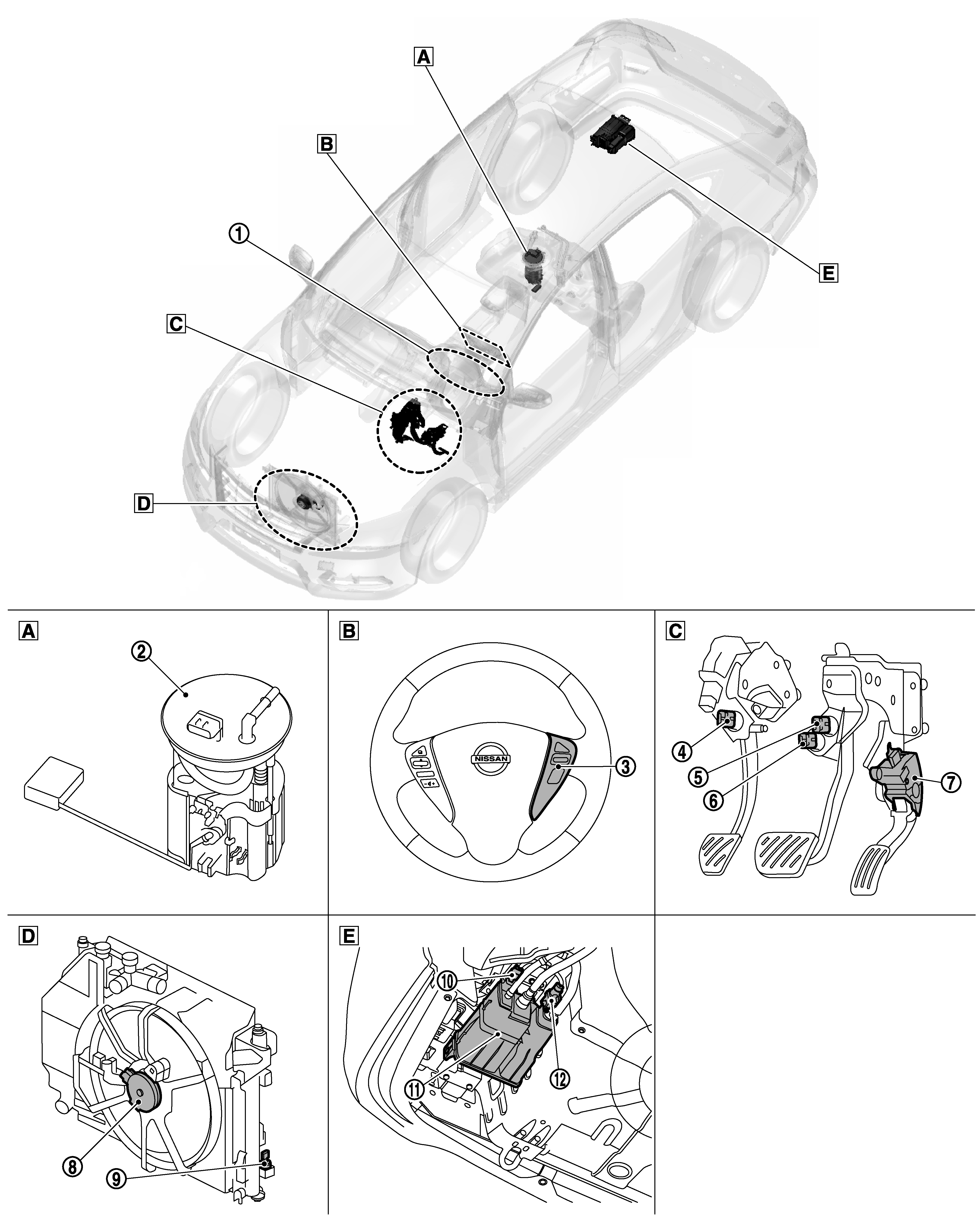

Body Compartment
| Under the right side second seat | On the steering wheel | Periphery of pedals | |||
| Radiator assembly | Under the left side fuel tank |
| No. | Component | Function |
|---|---|---|
| Combination meter | COMPONENT DESCRIPTION | |
| Fuel level sensor unit, fuel filter and fuel pump assembly | FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY | |
| ASCD steering switch | ASCD STEERING SWITCH | |
| Clutch pedal position switch | CLUTCH PEDAL POSITION SWITCH | |
| Stop lamp switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Brake pedal position switch | STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH | |
| Accelerator pedal position sensor | ACCELERATOR PEDAL POSITION SENSOR | |
| Cooling fan motor | COOLING FAN | |
| Refrigerant pressure sensor | REFRIGERANT PRESSURE SENSOR | |
| EVAP control system pressure sensor | EVAP CONTROL SYSTEM PRESSURE SENSOR | |
| EVAP canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the tank. | |
| EVAP canister vent control valve | EVAP CANISTER VENT CONTROL VALVE |
