2015 Nissan-Datsun Sentra SLFACTORY OEM SERVICE PROCEDURE

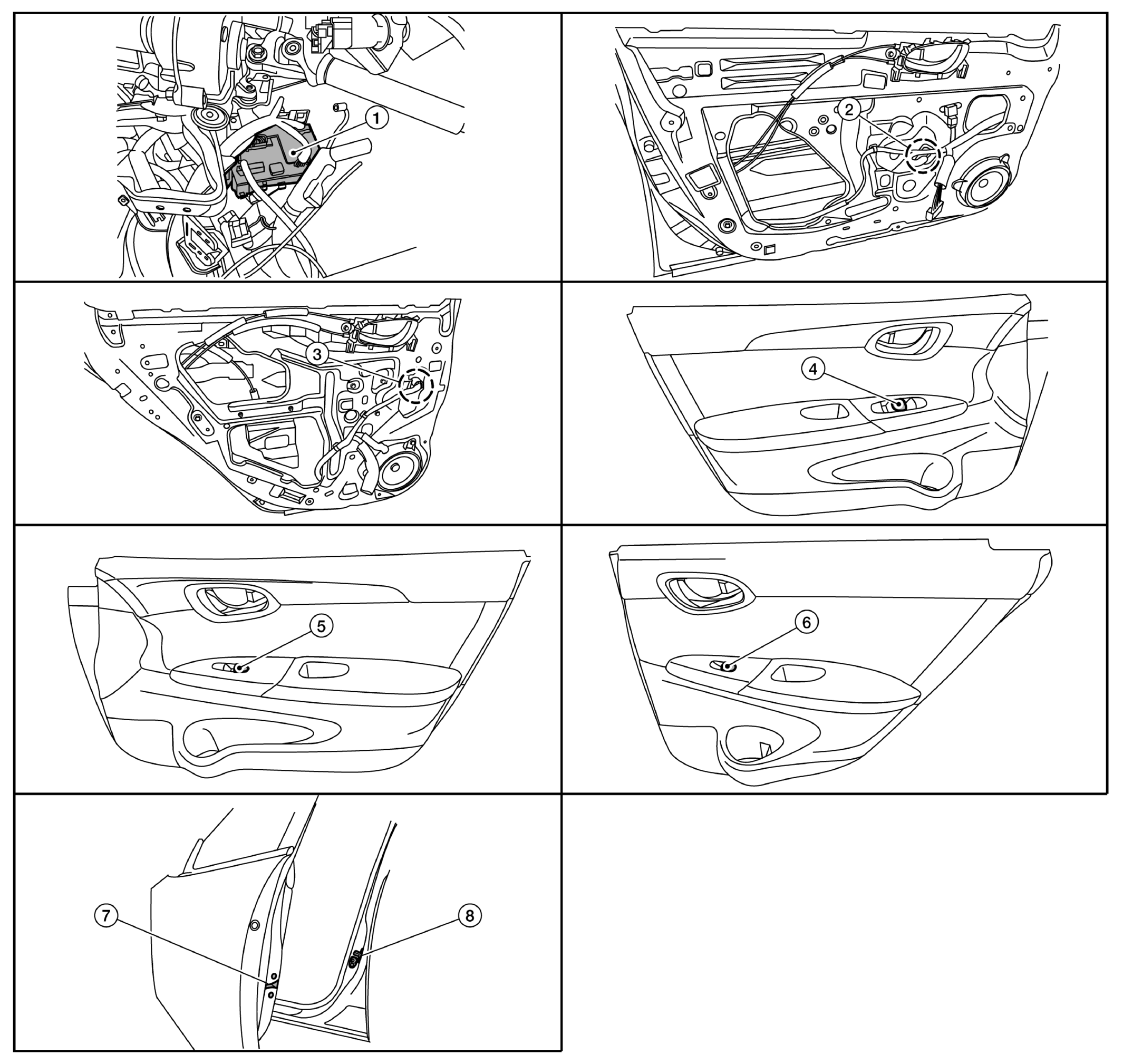

Components Parts Location
| 1. | BCM (view under instrument panel on the left side of the vehicle) | 2. | Front power window motor LH (RH similar) (view with front door finisher removed) | 3. | Rear power window motor LH (RH similar) (view with rear door finisher removed) |
| 4. | Main power window and door lock/unlock switch | 5. | Power window and door lock/unlock switch RH | 6. | Rear power window switch RH (LH similar) |
| 7. | Front door lock assembly LH (key cylinder switch) | 8. | Front door switch LH (RH similar) |
