2013 Nissan-Datsun Sentra SLFACTORY OEM SERVICE PROCEDURE

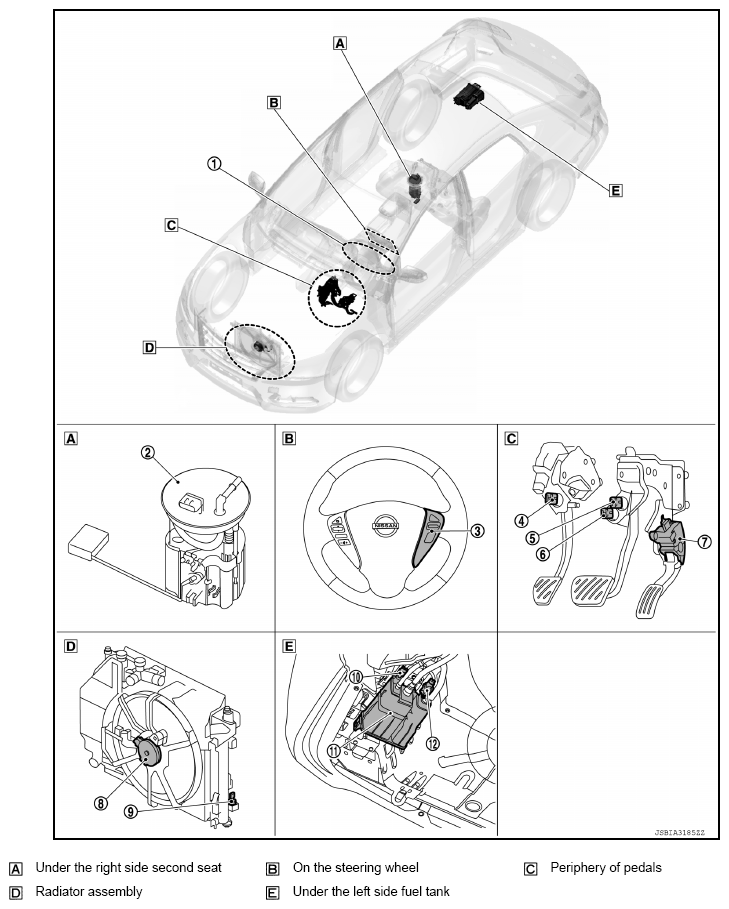

Body Compartment
| No. | Component | Function |
|---|---|---|
| (1) | Combination meter | "METER SYSTEM: COMPONENT DESCRIPTION " |
| (2) | Fuel level sensor unit, fuel filter and fuel pump assembly | "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY " |
| (3) | ASCD steering switch | "ASCD STEERING SWITCH " |
| (4) | Clutch pedal position switch | "CLUTCH PEDAL POSITION SWITCH " |
| (5) | Stop lamp switch | "STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH " |
| (6) | Brake pedal position switch | "STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH " |
| (7) | Accelerator pedal position sensor | "ACCELERATOR PEDAL POSITION SENSOR " |
| (8) | Cooling fan motor | "COOLING FAN " |
| (9) | Refrigerant pressure sensor | "REFRIGERANT PRESSURE SENSOR " |
| (10) | EVAP control system pressure sensor | "EVAP CONTROL SYSTEM PRESSURE SENSOR " |
| (11) | EVAP canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the tank. |
| (12) | EVAP canister vent control valve | "EVAP CANISTER VENT CONTROL VALVE " |
