2013 Nissan-Datsun NV3500 HD S, Van CargoFACTORY OEM SERVICE PROCEDURE

Work Procedure (Group A)

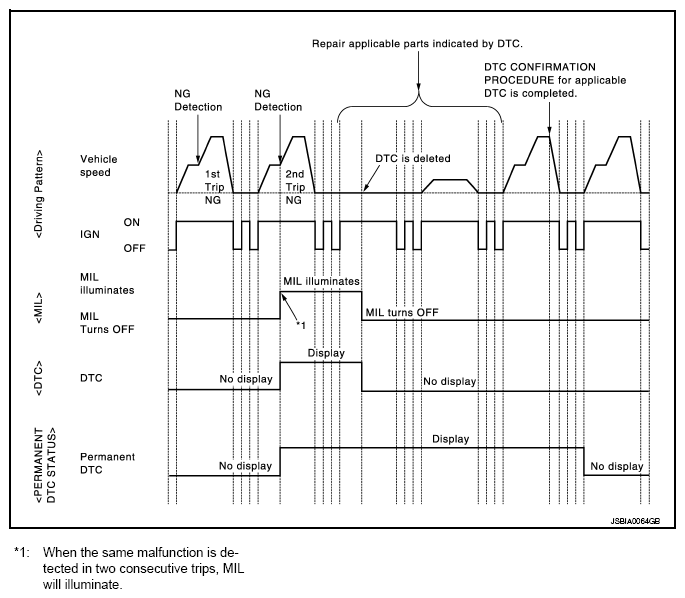

Fig 1: Driving Pattern Work Procedure (Group A)
G09017052Courtesy of NISSAN NORTH AMERICA, INC.
  1. CHECK DTC

    Check DTC.

    Is any DTC detected?

    YES: Repair malfunction(s) and erase DTC. Refer to "ON BOARD DIAGNOSIS FUNCTION " or "CONSULT FUNCTION ".

    NO: GO TO 2.

  2. CHECK PERMANENT DTC

    With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

      Is any permanent DTC detected?

      YES: GO TO 3.

      NO: END

  3. PERFORM DTC CONFIRMATION PROCEDURE

    Perform "DTC CONFIRMATION PROCEDURE" for DTCs which are the same as permanent DTCs stored in ECM. Refer to "DTC INDEX ".

    : GO TO 4.

  4. CHECK PERMANENT DTC

    With CONSULT

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select "PERMANENT DTC STATUS" mode with CONSULT.

    With GST

    1. Turn ignition switch OFF and wait at least 10 seconds.
    2. Turn ignition switch ON.
    3. Turn ignition switch OFF and wait at least 10 seconds.
    4. Turn ignition switch ON.
    5. Select Service $0A with GST.

      Is any permanent DTC detected?

      YES: GO TO  1.

      NO: END
