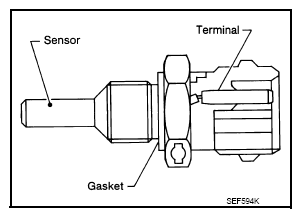

Engine Coolant Temperature Sensor
The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

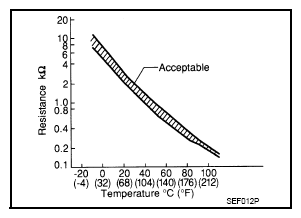

< Reference data >Β
| Engine coolant temperature [Β°C (Β°F)] | Voltage(1) (V) | Resistance (kΞ©) | ||
|---|---|---|---|---|
| -10 (14) | 4.4 | 7.0 - 11.4 | ||
| 20 (68) | 3.5 | 2.37 - 2.63 | ||
| 50 (122) | 2.2 | 0.68 - 1.00 | ||
| 90 (194) | 0.9 | 0.236 - 0.260 | ||
|
||||
