2012 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Saved Data List Reprogramming With Consult III Plus (NTB12-074)
WARNING: This page is about the Sentra Base, Automatic CVT Trans, which is a different variant/trim than selected.
Publication date: 2012-09-12Reference number: NTB12-074
SAVED DATA LIST REPROGRAMMING WITH CONSULT III PLUS
TECHNICAL SERVICE BULLETIN
Reference Number(s): NTB12-074, Date of Issue:
September 12, 2012
| CLASSIFICATION: | EC12-021 |
| APPLIED VEHICLES: | All |
SERVICE INFORMATION

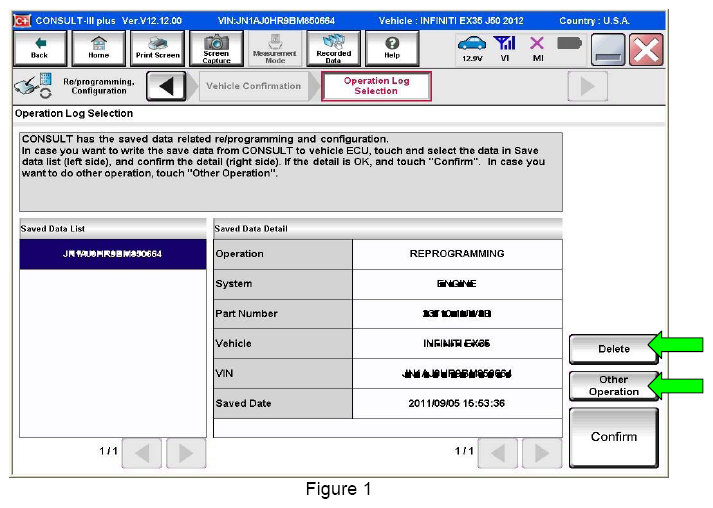

- When performing a "Reprogramming" operation with C-III plus, the screen in Figure 1 may display.
- This screen displays "Saved Data" from previous C-III plus operations.
- During the initial "Reprogramming Confirmation" set-up, if you get this screen:
- Select Delete , then
- Select Other Operation , then
- Continue with the reprogramming procedure.
NOTE:
If reprogramming does not complete, this screen can display for reprogramming recovery. Do not select Delete if this screen displays during reprogram recovery.
