2012 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Method B

WARNING: This page is about a different variant/trim than selected.

Remove No. 4 ignition coil (1).

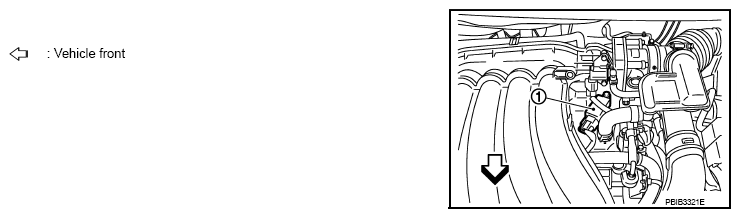

Fig 1: Identifying No. 4 Ignition Coil
Courtesy of NISSAN NORTH AMERICA, INC.
Connect No. 4 ignition coil (1) and No. 4 spark plug with suitable high-tension wire (A) as shown in the figure, and attach timing light clamp (B) to this wire.

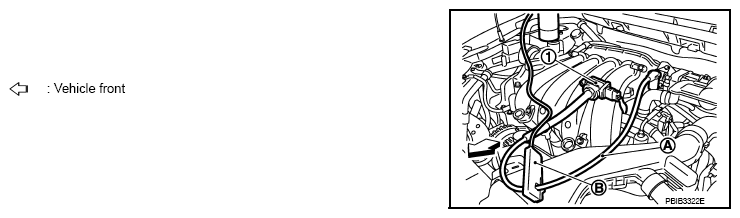

Fig 2: Identifying Ignition Coil, High-Tension Wire And Timing Light Clamp
Courtesy of NISSAN NORTH AMERICA, INC.
