2012 Nissan-Datsun Cube BaseFACTORY OEM SERVICE PROCEDURE

IGNITION TIMING: Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to No. 1 ignition coil (1) wire as shown.

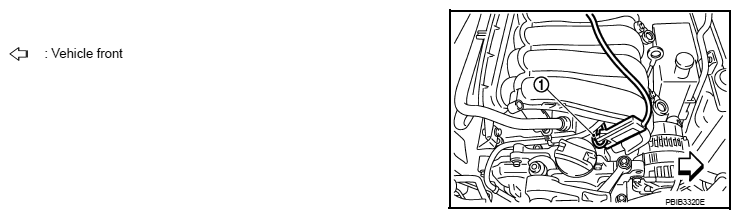

  Fig 1: Identifying Ignition Coil
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  >> INSPECTION END

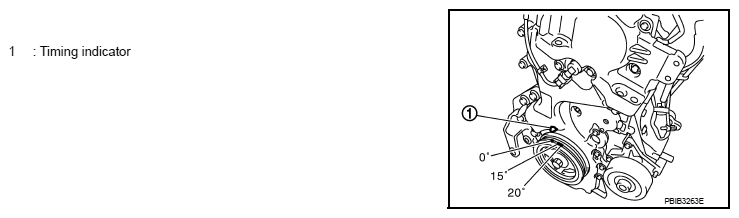

  Fig 2: Identifying Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.
